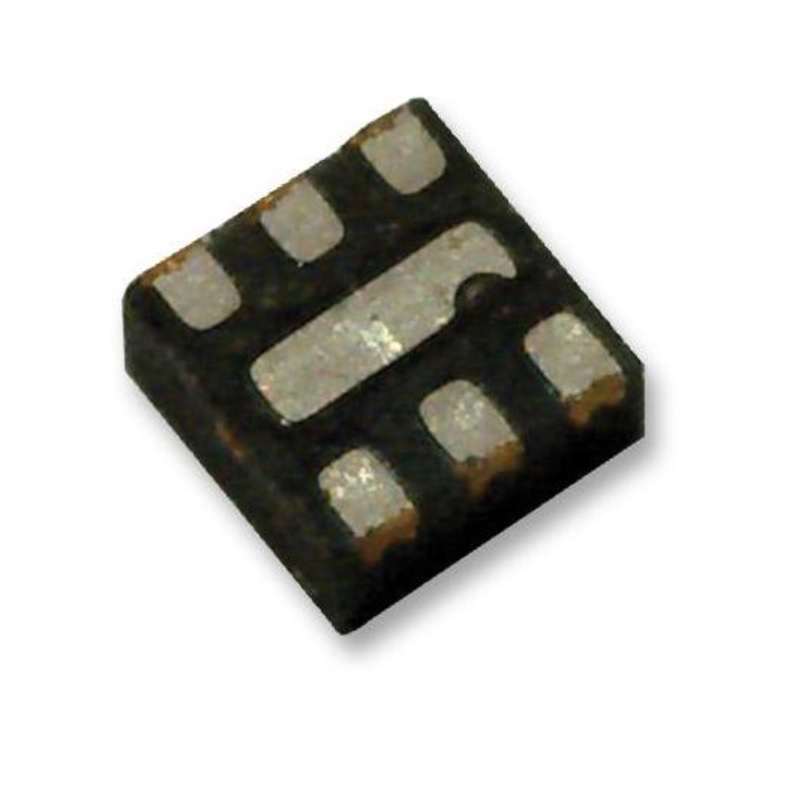

MIC5528-3.3YMT-TR MICROCHIP Fixed LDO Voltage Regulator, 2.5V to 5.5V, 260mV Dropout, 3.3Vout, 500mAout, TDFN-6

The MIC5528 is a low-power, µCap, low-dropout regulator designed for optimal performance in a very small footprint. It is capable of sourcing up to 500mA of output current while only drawing 38µA of operating current. This high-performance LDO is a μCap design in a thermally enhanced 1.2mm x 1.2mm extra thin (0.4mm ht.) DFN package. It operates with a small ceramic output capacitor for stability, thereby reducing the required board space.
Ideal for battery-operated applications, the MIC5528 offers ±2% accuracy, extremely low dropout voltage (260mV @ 500mA), and can regulate output voltages down to 1.0V. Equipped with a TTL logic-compatible enable pin, the MIC5528 can be put into a zero-off-mode current state, drawing no current when disabled.
The MIC5528 is a μCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost for space-critical applications. The MIC5528 has an operating junction temperature range of -40°C to 125°C.
Application:

1. Portable communication equipment
2. DSC, GPS, PMP, and PDAs
3. Portable medical devices
4. 5V POL applications

Features:

1. Input voltage range: 2.5V to 5.5V
2. Fixed output voltages down to 1.0V
3. +2% Room temperature accuracy
4. Low quiescent current 38μA
5. Stable with 2.2uF ceramic output capacitors
6. Low dropout voltage 260mV @ 500mA
7. Auto discharge and internal enable pulldown
8. Thermal shutdown and current-limit protection
9. 6-pin 1.2mm * 1.2mm extra thin DFN package

Package Includes:

1 x MIC5528-3.3YMT-TR MICROCHIP Fixed LDO Voltage Regulator, 2.5V to 5.5V, 260mV Dropout, 3.3Vout, 500mAout, TDFN-6
