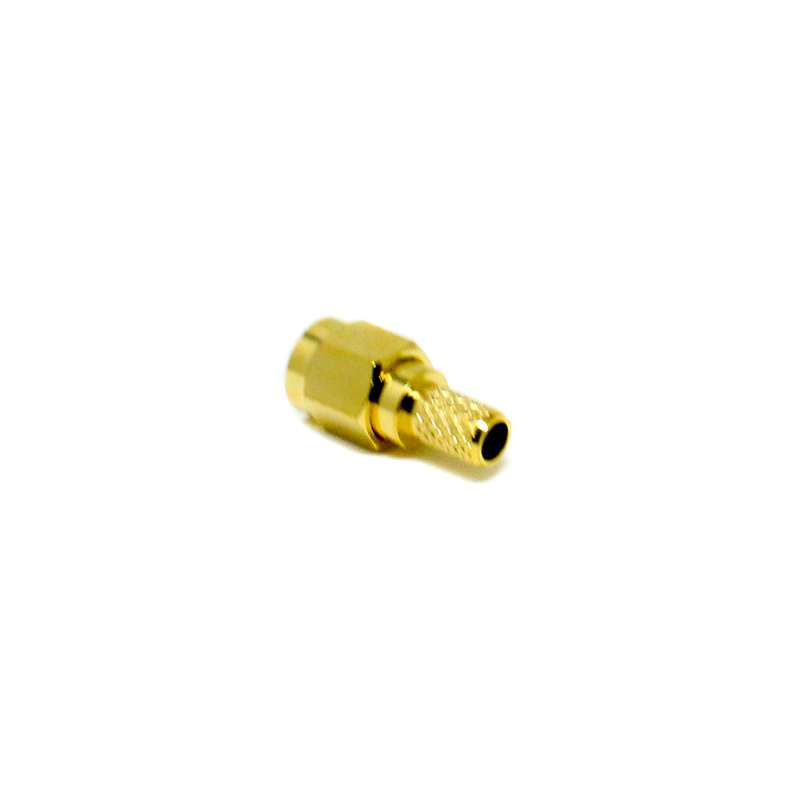

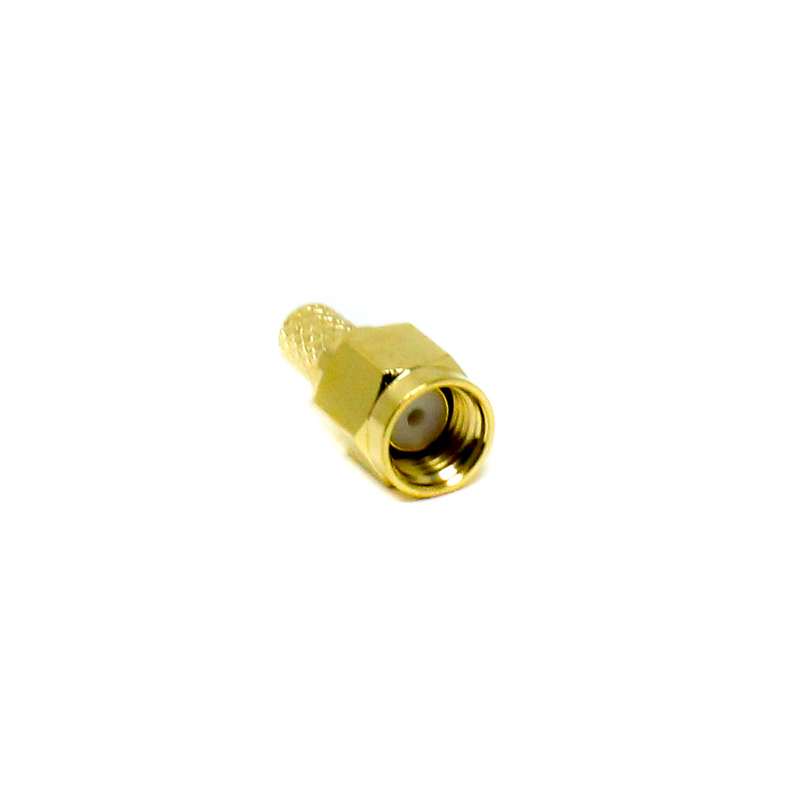

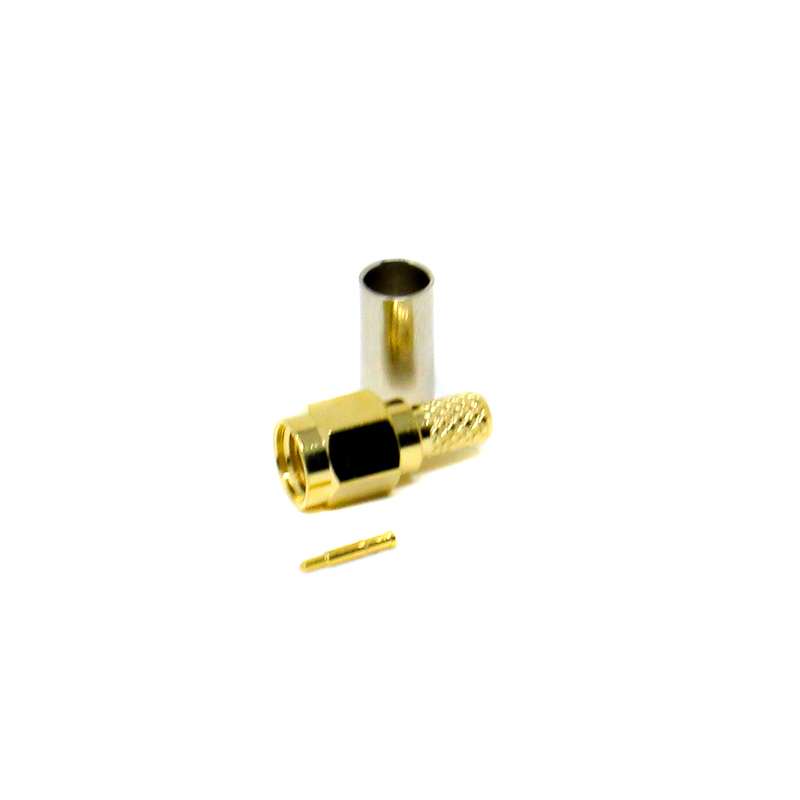

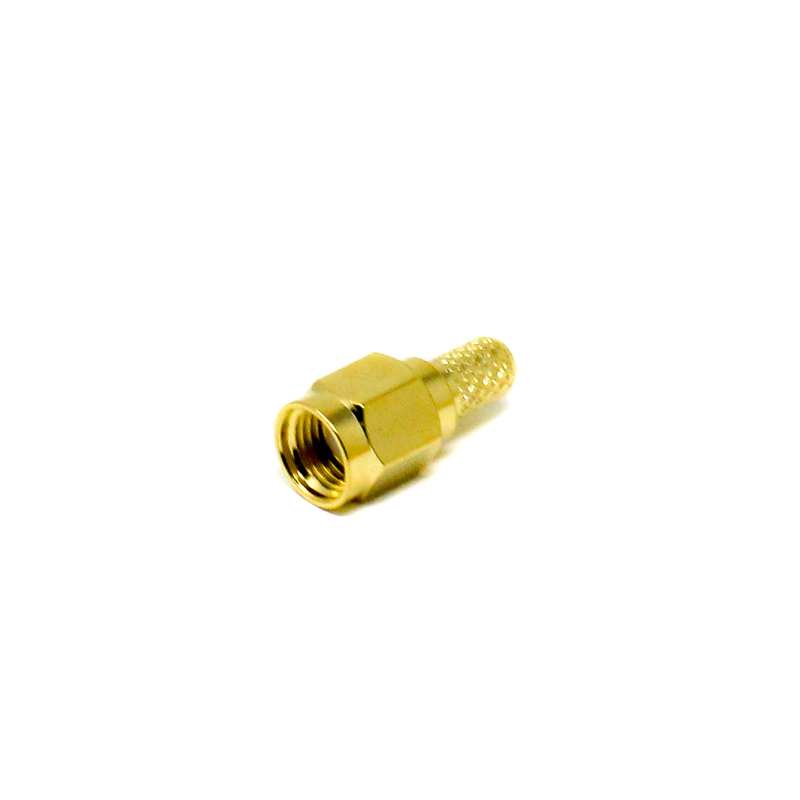

Male SMA Solder Type Straight Nickel Plating Connector For Coaxial Cable

Male SMA Solder Type Straight Nickel Plating Connector For Coaxial Cable

We at robu offers, a full range of cable mount BNC/TNC and diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors which suits your needs.

Appliance:

Features and Specifications:

Features:

1. SMA Connector,50 Ohm,Male,Solder Type,Cable Connector,Straight/180°
2. Excellent electrical performance up to 18GHz with low reflection;
3. Thread type coupling mechanism ensure small loss and high security in compact design;

Specifications:

Electrical Characteristics

1. Impedance：50 ohm
2. Frequency Range: 0~6 GHz
3. VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
4. Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
5. 750 V rms min. for RG316, RG402
6. 500v rms min. for RG178
7. Working Voltage: 500 V rms max. for RG142, RG405
8. 375 V rms max. for RG316, RG402
9. 170 V rms max. for RG178
10. Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
11. Outer Contact Resistance ≦ 2.0 mΩ  (Milliohms max.)
12. Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

1. Coupling: 1/4-36 thread
2. Contact Retention: 15 in-lbs min.
3. Coupling nut torque: 30 in-lbs. min.
4. Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

1. Temprature Range: -55°C ~ +155°C
2. Vibration: MIL-STD-202 Meth.204
3. Corrosion resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x Male SMA Solder Type Straight Nickel Plating Connector For Coaxial Cable
