Lt-736 Quick Connection Terminal RoboNepal.com Nepal Buy in Nepal
Click to enlarge

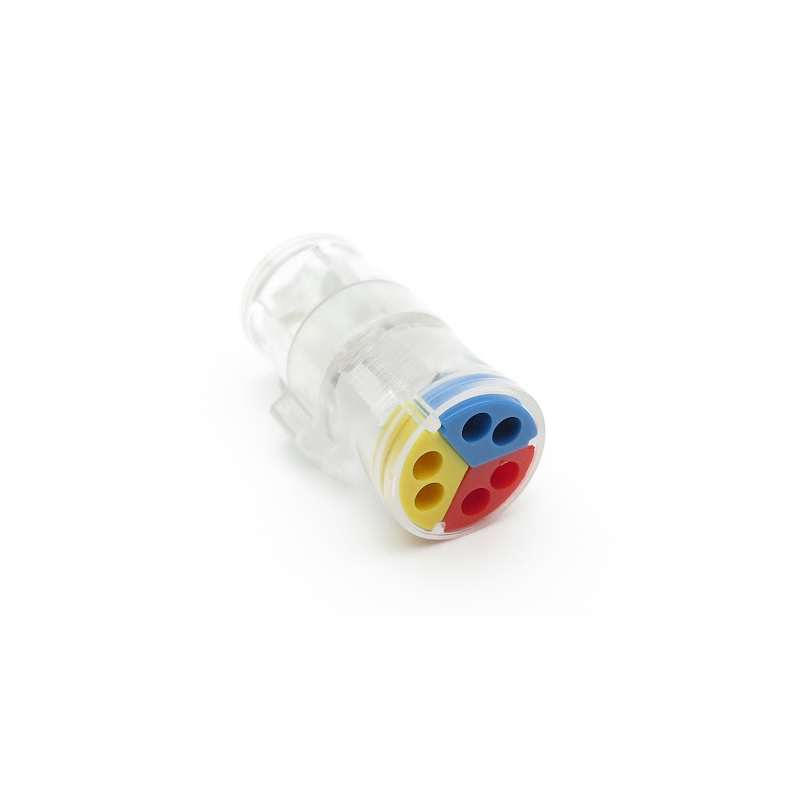

LT-736 Quick Connection, Terminal

  1. High-grade Insulative Nylon Material
  2. Strong Spring Locking Lever
  3. Nickel Plated Metal Point Inside
  4. Good Temperature Resistance
  5. Compact Splicing Connector
  6. 3:6 -Conductor Terminal Block

₨ 200.00

Out of stock

Out of stock

Compare
Add to wishlist
13 People watching this product now!
Item Type:

LT
Rated Current (A)

6
Rated Voltage (V):

400
Allowed Wire Size (AWG):

28 ~ 12
Color:

Blue, Red, Yellow
Model

LT-736
Contact Material

Stainless Steel
No. of Contact Points

0.129166667
Rated Power (W)

4 KW
Operating Temperature (°C)

-20 to 80
Shipping Weight 0.009 kg
Shipping Dimensions 5 × 4 × 2 cm

LT-736 Quick Connection Terminal:

It can be used to create the 3-wire connection from 3 pair connections. LT Connector contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.75mm to 4mm2 area or soft wire with 1.5mm to 2.5mm2 area. This connector can tolerate the rated voltage up to 400V with an electric current peak of 6A, resulting in a maximum of 4KW Power. And the Stripping Length of the connector is 11-13 mm

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

  • PCT-212 is a Two-wire connector
  • PCT-213 is a Three-wire connector
  • PCT-214 is a Four-wire connector
  • PCT-215 is a Five wire connector
  • PCT-218 is an Eight-wire connector
  • CH-812 is a Two to Two-wire connector
  • CH-813 is Three to Three wire connector
  • CH-2-4 is a Four to Two-wire connector
  • CH-2-6 is a Six to Two-wire connector
  • PCT-223-8 Stationary Type Quick Connector
  • LT-633(SPL-63) Stationary Type Quick Connector
  • LT-933(SPL-93) Stationary, Type Quick Connector
  • PCT-223-10 Stationary Type, Quick Connector
  • PCT-223-12 Stationary Type, Quick Connector
  • PCT-223-3 Stationary Type Quick Connector
  • PCT-223-4 Stationary Type Quick Connector
  • PCT-224D Guide Rail Type, Quick Connector
  • PCT-225D Guide Rail Type Quick Connector
  • PCT-225(SPL-5) Quick Connector

    • Features:

    1. High-grade Insulative Nylon Material
    2. Strong Spring Locking Lever
    3. Nickel Plated Metal Point Inside
    4. Good Temperature Resistance
    5. Compact Splicing Connector
    6. 3:6 -Conductor Terminal Block
    7. With Operating Levers
    8. Max. Continuous Service Temperature 85°C

    Package Includes:

    1 x LT-736 Quick Connection Terminal
