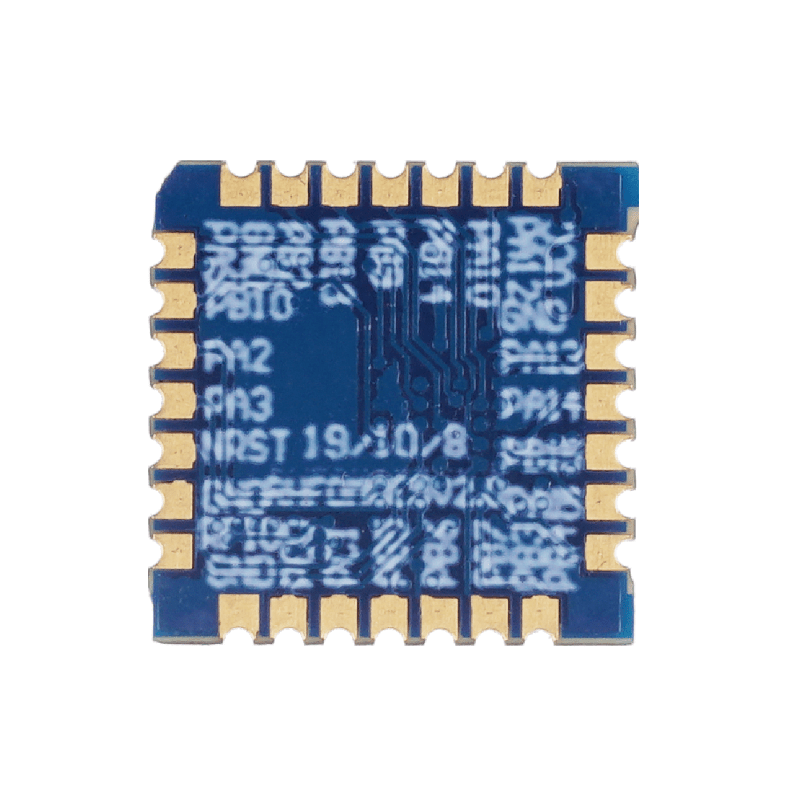

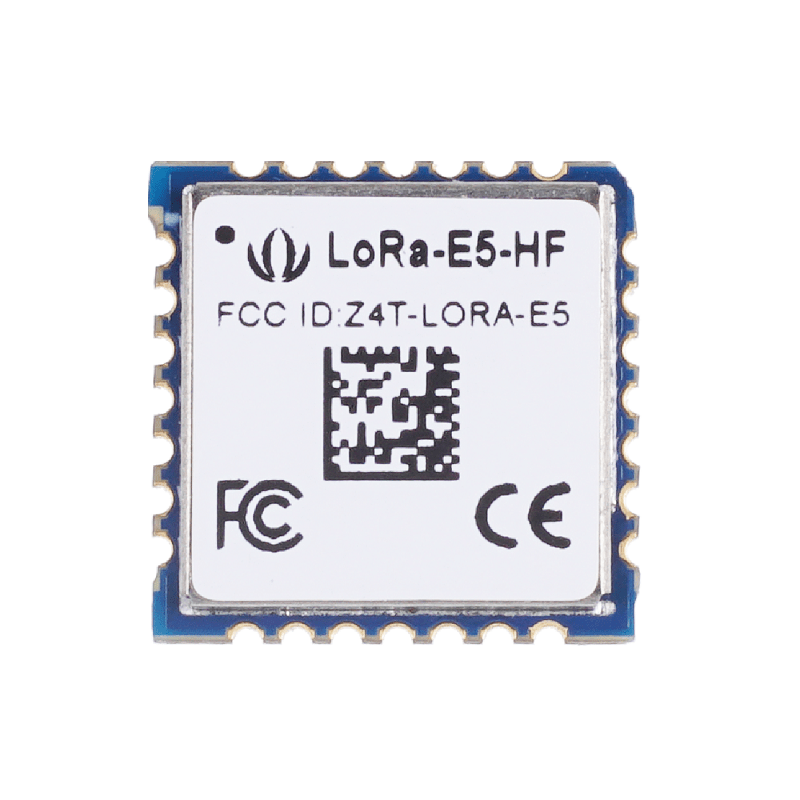

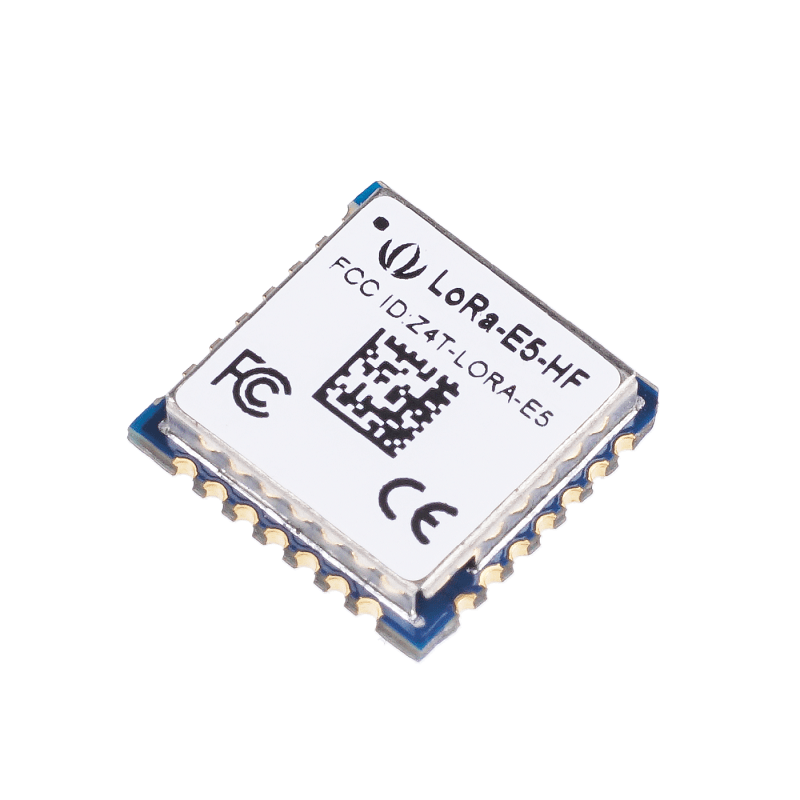

LoRa-E5 STM32WLE5JC Module Embedded SX126X And MCU

This LoRa E5 module is designed with industrial standards, hence it’s highly suitable to be used in designing industrial IoT products. Lora-E5 is a low-cost, ultra-low power, extremely compact, and high-performance LoRaWAN Module designed by Seeed Technology Co., Ltd. It contains ST system-level package chip STM32WLE5JE, and STM32WLE5 is the first SoC integrated with the combo of LoRa RF and MCU chip. This module is also embedded with ARM Cortex M4 ultra-low-power MCU and LoRa SX126X and therefore supports (G)FSK mode and LoRa.

Applications:

1. Wireless Meter Reading
2. IoT Nodes
3. Sensor Network
4. Other Low Power Wider Area IoT Scenarios

Note: For More Details Please Refer Attached Datasheet
Useful Links:

1. LoRa-E5 Kicad Library
2. LoRa-E5 HF 3D File
3. LoRa-E5 Eagle Library

Features:

1. Ultra-low Power Consumption: as low as 2.1uA sleep current (WOR mode)

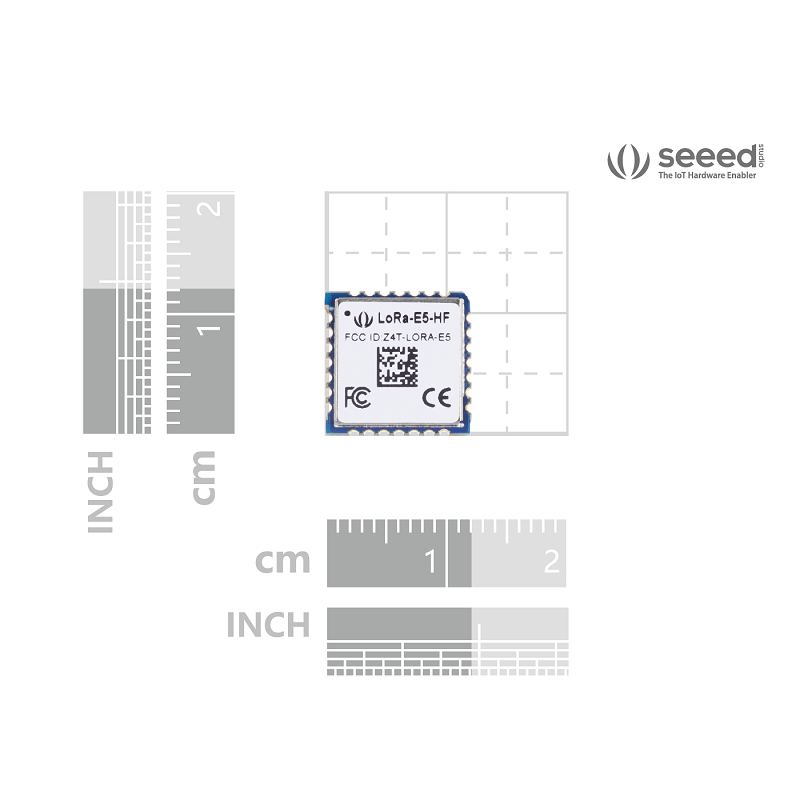

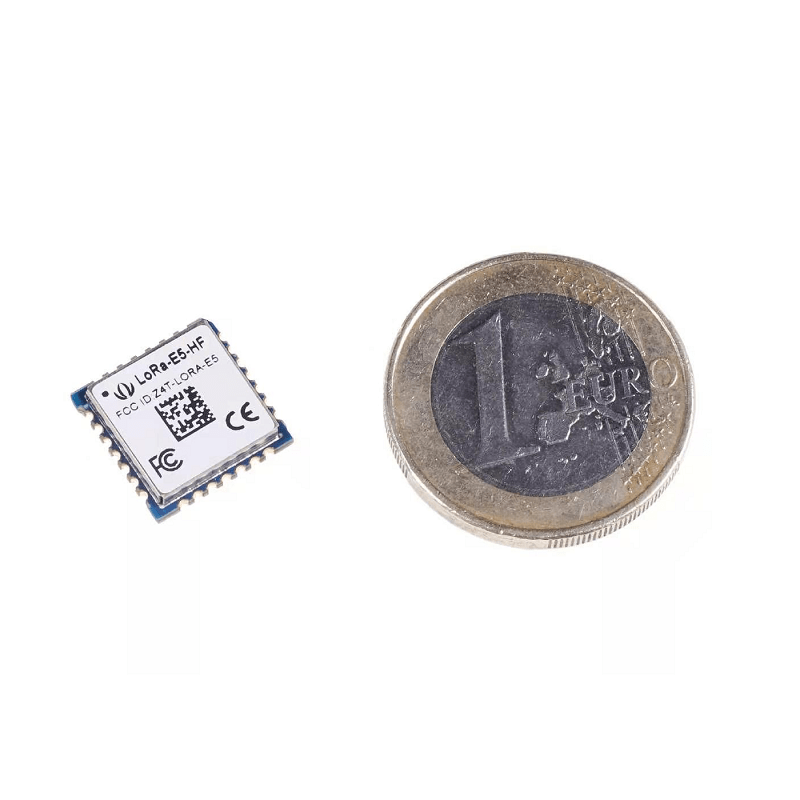

2. Extremely Compacted Size: 12mm * 12mm * 2.5mm 28 pins SMT
3. High Performance: TXOP=22dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW
4. Long Distance Use: 158dB link budget
5. Wireless Connectivity: Embedded LoRaWAN® protocol, AT command, support global LoRaWAN® frequency plan
6. Worldwide Compatibility: wide frequency range; EU868/US915/AU915/AS923/KR920/IN865

Package Includes:

1 x LoRa-E5 STM32WLE5JC Module Embedded SX126X And MCU
