| Detection Concentration Range |
PH0-14 |
|---|---|
| Detection Range of Temperature (°C) |
0 to 60 |
| Response Time (s) |
≤5 |
| Stability Time (s) |
≤60 |
| Power Consumption (W) |
≤0.5 |
| Operating Temperature (°C) |
-10 to 50 |
| Working Humidity (%RH) |
95 |
| PCB Size ( L x W ) mm |
42 x 32 |
| Height (mm): |
16 |
| Weight (g): |
20 |
| Shipping Weight | 0.022 kg |
| Shipping Dimensions | 8 × 4 × 2.5 cm |

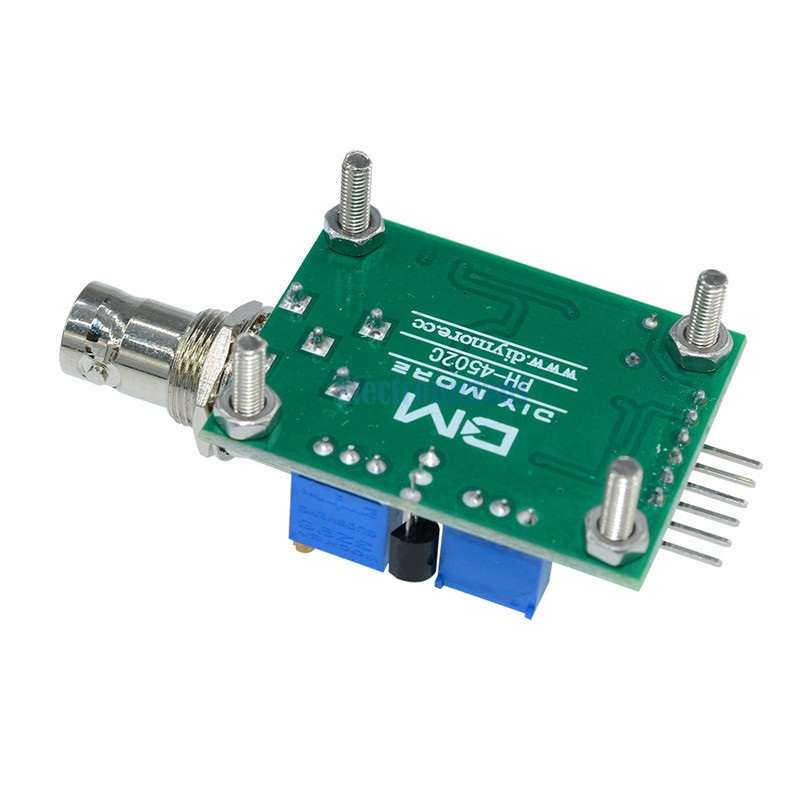

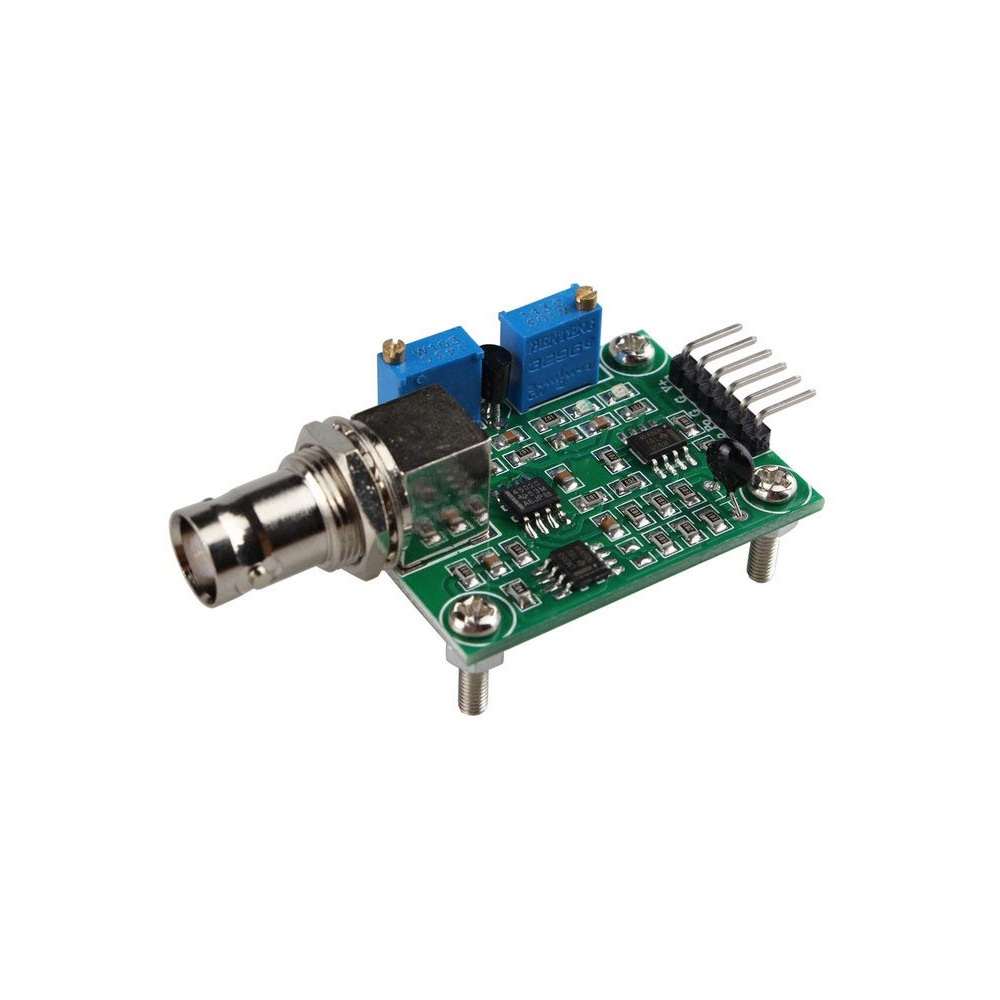

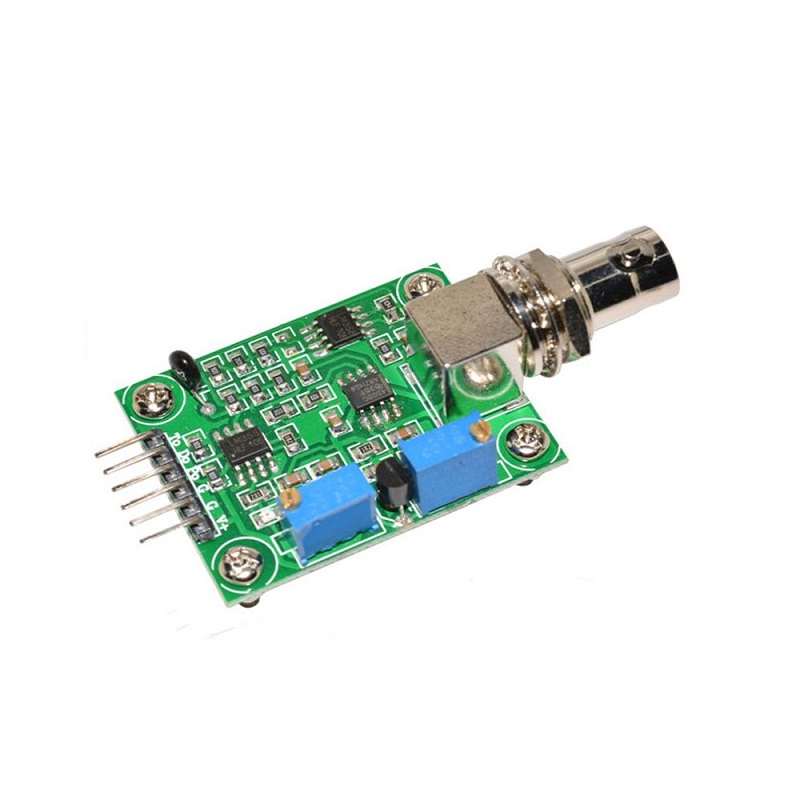

Liquid pH Value Detection Sensor for Arduino
- Heating voltage: 5±0.2V
- Working current: 5-10mA
- The detection concentration range: PH0-14
- The detection range of temperature: 0-60 centigrade
- The response time: ≤ 5S
- Stability time: ≤ 60S
- Power consumption: ≤ 0.5W
₨ 1,634.00
Out of stock
Out of stock
20
People watching this product now!
If you are want to Build a circuit where you can detect the ph factor of liquid, whether it is basic or alkaline. You can Buy this Sensor From Robu.in at a Reasonable Price.
This is a Liquid pH Value Detection Sensor for Arduino. This is used in water quality testing and Aquaculture
The pH stands for the power of hydrogen, which is a measurement of the hydrogen ion concentration in the body. The total pH scale ranges from 1 to 14, with 7 considered to be neutral. A pH less than 7 is said to be acidic and solutions with a pH greater than 7 are basic or alkaline.
The PH electrode has a single cylinder that allows direct connection to the input terminal of a pH meter, controller, or any pH device which has a BNC input terminal. The pH electrode probe is accurate and reliable that can give almost instantaneous readings.
Connection Diagram of Liquid pH Value Detection Sensor for Arduino:
Package Includes :
1 x Liquid pH Value Detection Sensor For Arduino
1 x set of Mounting Accessories
