| Item Type: |
Feather Servo, Karbonite Servo |
|---|---|
| Model No. |
HS-65HB |
| Speed (Second @ 60°) |
0.13 to 0.16 |
| Operating Voltage (VDC): |
4.8 to 6 |
| Gear Material |
Karbonite |
| Max. Torque (oz./in.) |
22 ~ 26 |
| Max. Torque (kg/cm) |
1.6 ~ 1.9 |
| Idle Current (mA) |
7.7 mA |
| No Load Current (mA) |
220 mA |
| Stall Current Draw (mA) |
1,200 mA |
| Dead Band Width (us) |
5 µs |
| Motor Type |
3 Pole Metal Brush Neodymium |
| Output Shaft (type / Ømm) |
Feather 15 / 8 |

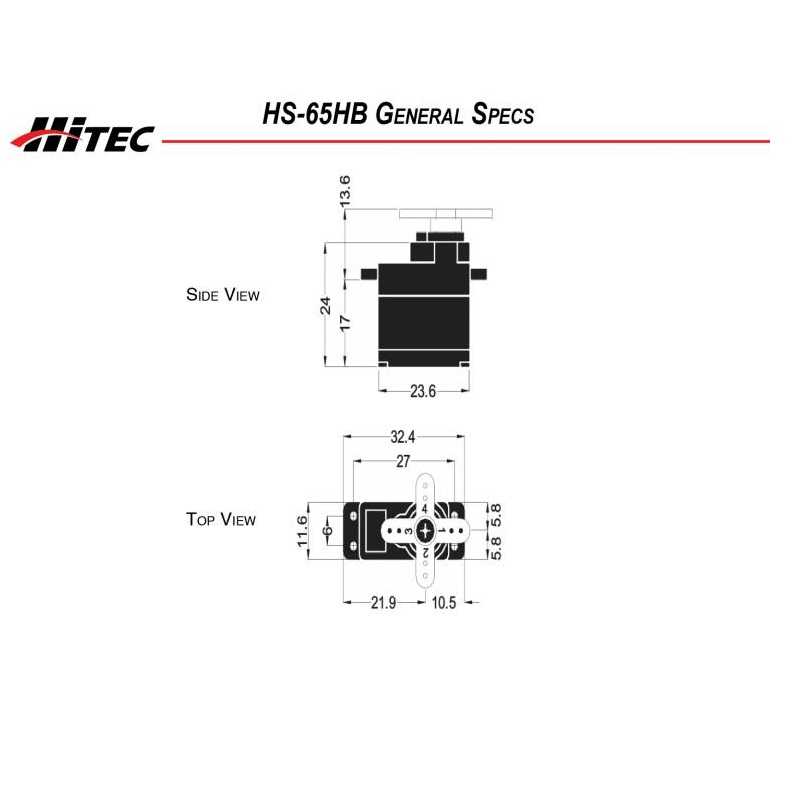

| Dimensions (Inches) |
0.92 x 0.45 x 0.94 |
| Weight (g): |
11.2 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 7 × 5 × 3 cm |

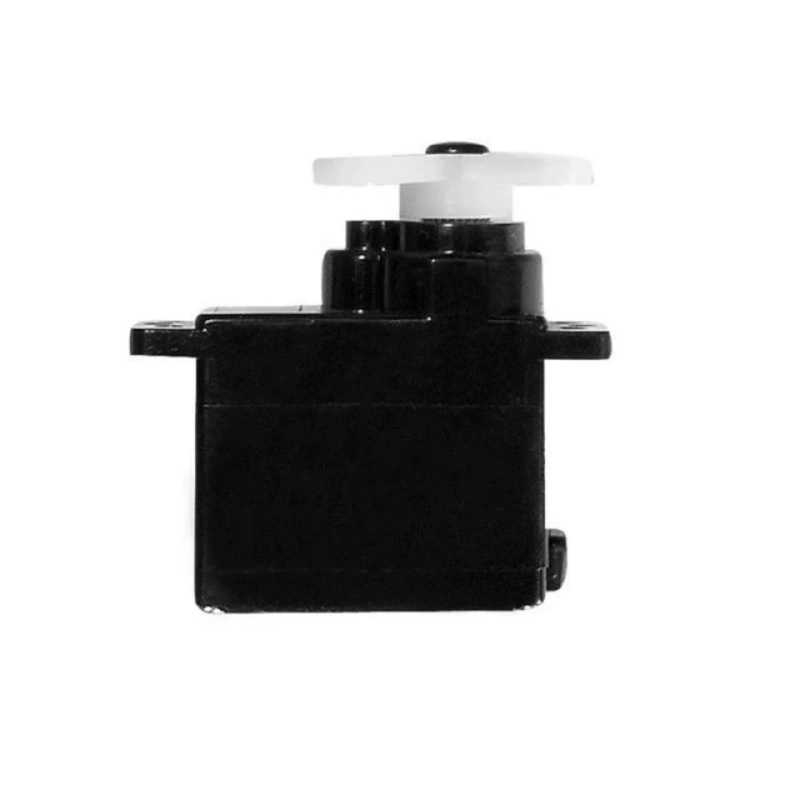

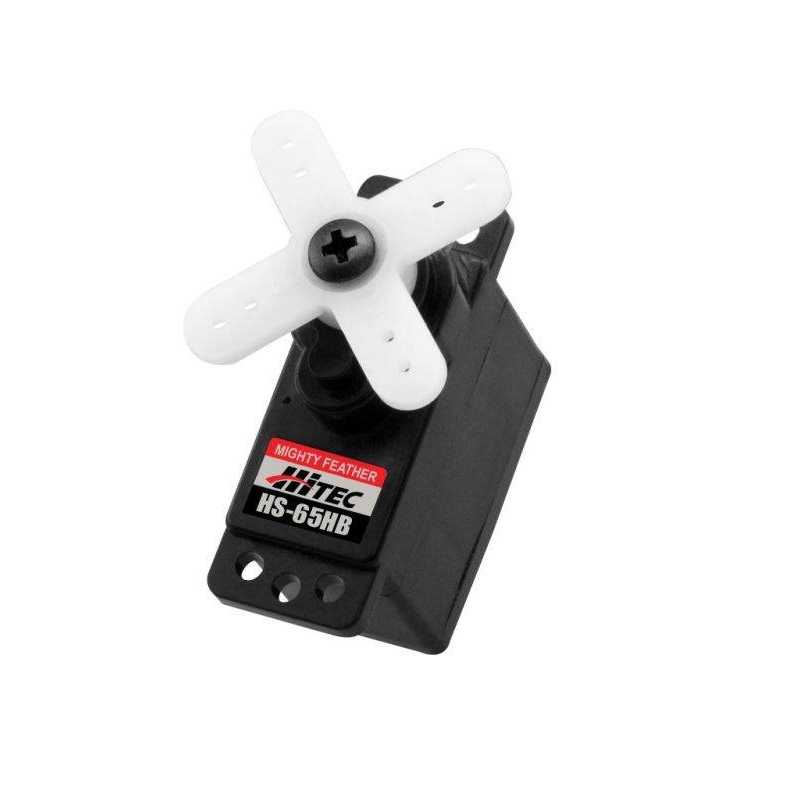

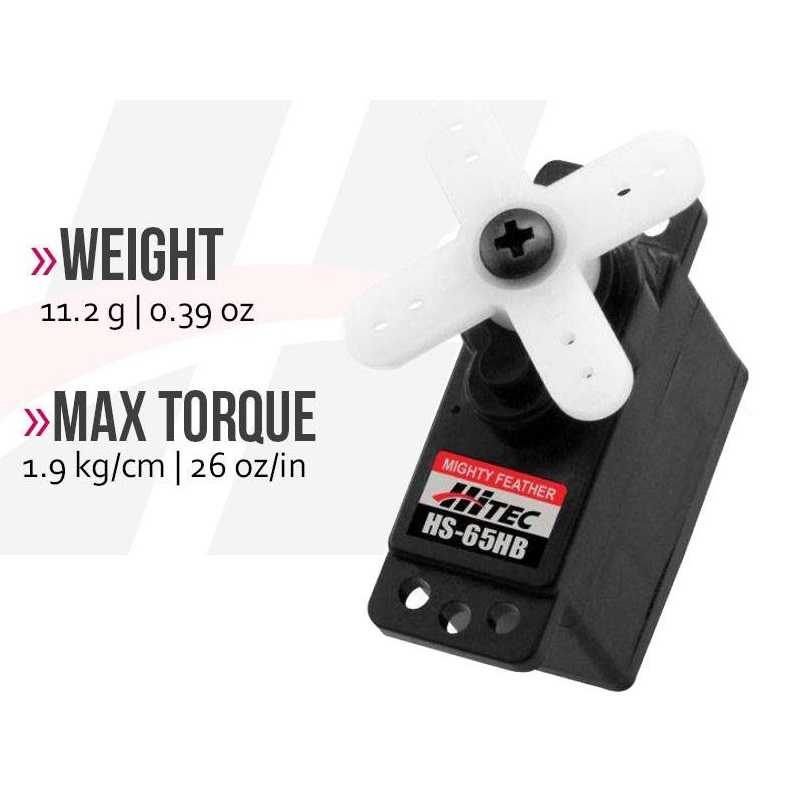

HiTec HS-65HB Mighty Karbonite Feather Servo
- Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
- Speed (Second @ 60°): 0.16 ~ 0.13
- Maximum Torque Range oz. / in.: 22 ~ 26
- Motor Type: 3 Pole Metal Brush Neodymium
- Gear Material: Karbonite
- Output Shaft (type / Ømm): Feather 15 / 8
₨ 100.10
Out of stock
Out of stock
12
People watching this product now!
Here comes HiTec HS-65HB Mighty Karbonite Feather Servo, a product from the HiTec brand. Considered one of the most powerful servos in the micro class, the HiTec HS-65HB is offered with a choice of “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 26 ounces/inches of power at 6 volts, and is an excellent choice for higher-performance micro helicopters, electric park flyers, and 1/18 scale cars.
Note:
- The accessories horn set is usually black in color.
- Please note that the color & the accessories set can be different from the image shown depending on the availability.
Features:
- Premium Feather Servo
- High-Performance Three-Pole Motor
- Rugged Karbonite Gear for Added Durability
- Ball Bearing-Supported Output Shaft
- High Torque and High Speed
Package Includes:
1 x HiTec HS-65HB Mighty Karbonite Feather Servo
1 x Accessories Set with Applicable Horns
