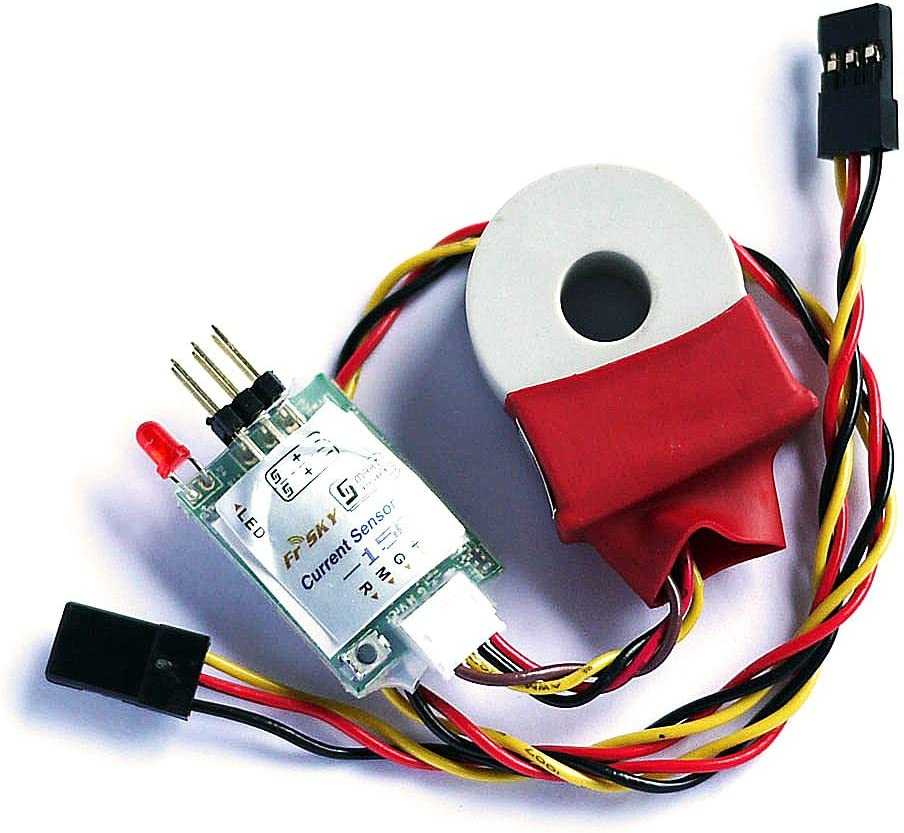

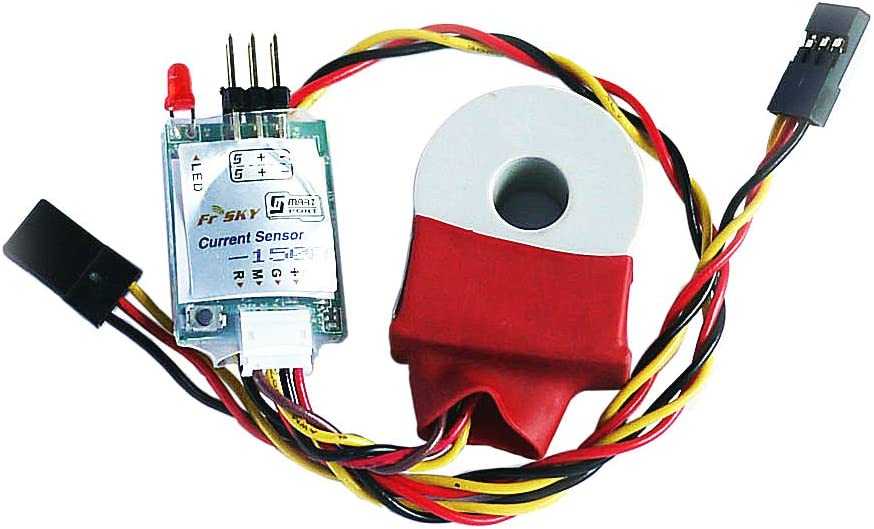

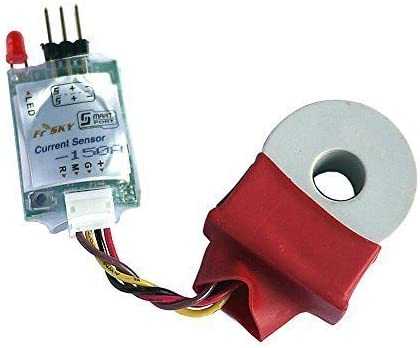

FrSky’s Smart Port Current Sensor-150A

The FrSky’s Smart Port Current Sensor-150A is a current measuring sensor for applications drawing up to 150 amps! A simple setup of the FCS-150A means you just run your positive ESC battery lead through the sensor loop and complete some basic setup through the FrSky Servo Channel Changer. The PCB of the FCS-150A has an extra port to allow you to daisy chain it together with other Smart Port Telemetry sensors.

The FCS-150A is a great way to monitor real-time current to help you better optimize your ESC, propeller choice other given parameters of your power setup. Compatibility: FrSky Smart Port enabled receivers, such as X8R, X6R, X4R, etc. Ampere Sensor. Maximum safe current: 150A Maximum battery voltage: 4-10V. It is designed for FrSky Smart Port-enabled systems and can measure Current (A) when connected between a Battery and ESC. Mode: FCS-150A Weight: 20.1g

Features:

1.  Accurately measure real-time power consumption, great to help you optimize your setup
2. Simply run the positive lead of your ESC battery wire through the sensor loop
3. Works with all FrSky Smart Port receivers
4. Connect other FrSky Telemetry sensors together with the FCS-150A

Package Include:

1 x FrSky’s Smart Port Current Sensor-150A
