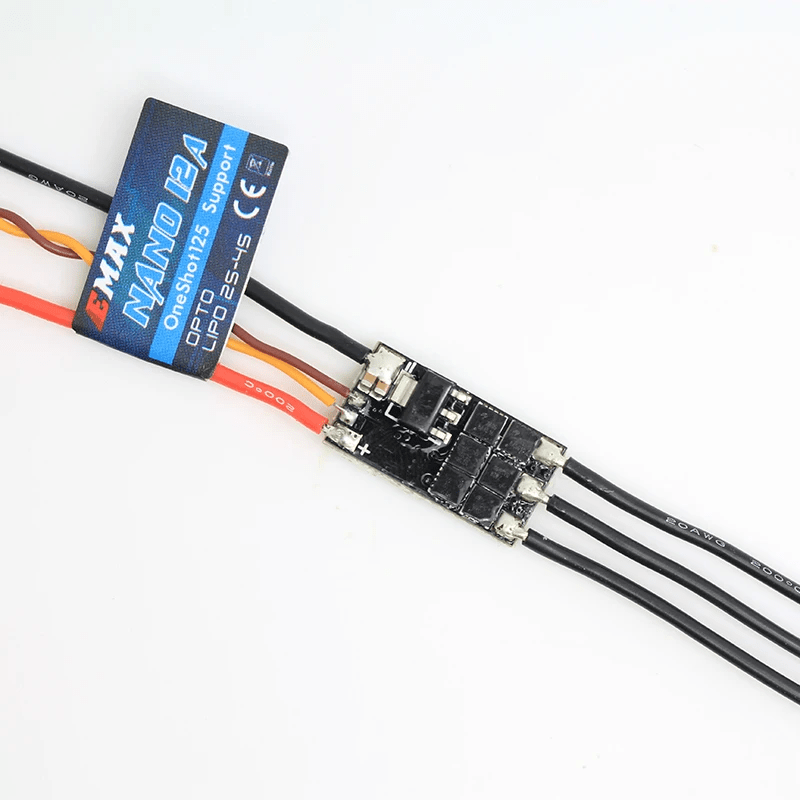

EMAX Nano Series ESC 12A V2-active braking 3S-4S

  1. Model: Nano 12A ESC.
  2. Input voltage: 3-4S Lipo.
  3. BEC: NO
  4. Continue Current: 12A.
  5. Burst current: 15A.
  6. Firmware: BLHeli_32.

 100.10

Out of stock

Out of stock

14 People watching this product now!
Model

EMAX Nano Series 12A

Burst Current (A)

15

Constant Current (A)

12

BEC

NO

Suitable Lipo Batteries

3 ~ 4S

Color:

Black

Dimensions (LxWxH) mm

30×12.5×8

Shipping Weight 0.01 kg
Shipping Dimensions 10 × 5 × 5 cm

EMAX Nano Series ESCs are developed for racing multicopters, based on BLHeli firmware and support OneShot125. They are compatible with Skyline32, Naze32, Pixhawk, CC3D, and other mainstream Flight Controllers. They use authentic electronic components to ensure high quality and enhance the current endurance ability.

  • Support Oneshot125, active braking (damped light), quick throttle response
  • Smaller and lighter than most of multirotor ESCs
  • Compatible with Skyline32, Naze32, Pixhawk, CC3D, and other mainstream Flight Controllers
  • Opto designed, with twisted-pair wire for throttle signal line, strong anti-jamming capability
  • Support SimonK and BLHeli
  • To know more about the calibration protocol click here!


    Features:

    1. Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.
    2. Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.
    3. Specially designed for multirotors, and compatible with fixed-wing aircraft and helicopters.
    4. Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
    5. Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear, and precise throttle response.
    6. All parameters can be programmed via using a program card or a transmitter, including default settings.

    Package Includes:

    1 x EMAX Nano Series ESC 12A V2-active braking 3S-4S
