Item Type: |
NEMA17 Shaft Coupling |
---|---|
Material: |
Mild Steel |
Bore Diameter (mm) |
5 |
Length (mm): |
20 |
Inner Diameter (ID) (mm) |
5 |
Outer Diameter (OD) (mm) |
47 |
Pitch Circle Diameter (PCD) mm |
35 |
Motor Mount Hole Dia. (mm) |
5 |
Weight (g): |
80 |
Shipping Weight | 0.084 kg |
Shipping Dimensions | 6 × 6 × 3 cm |

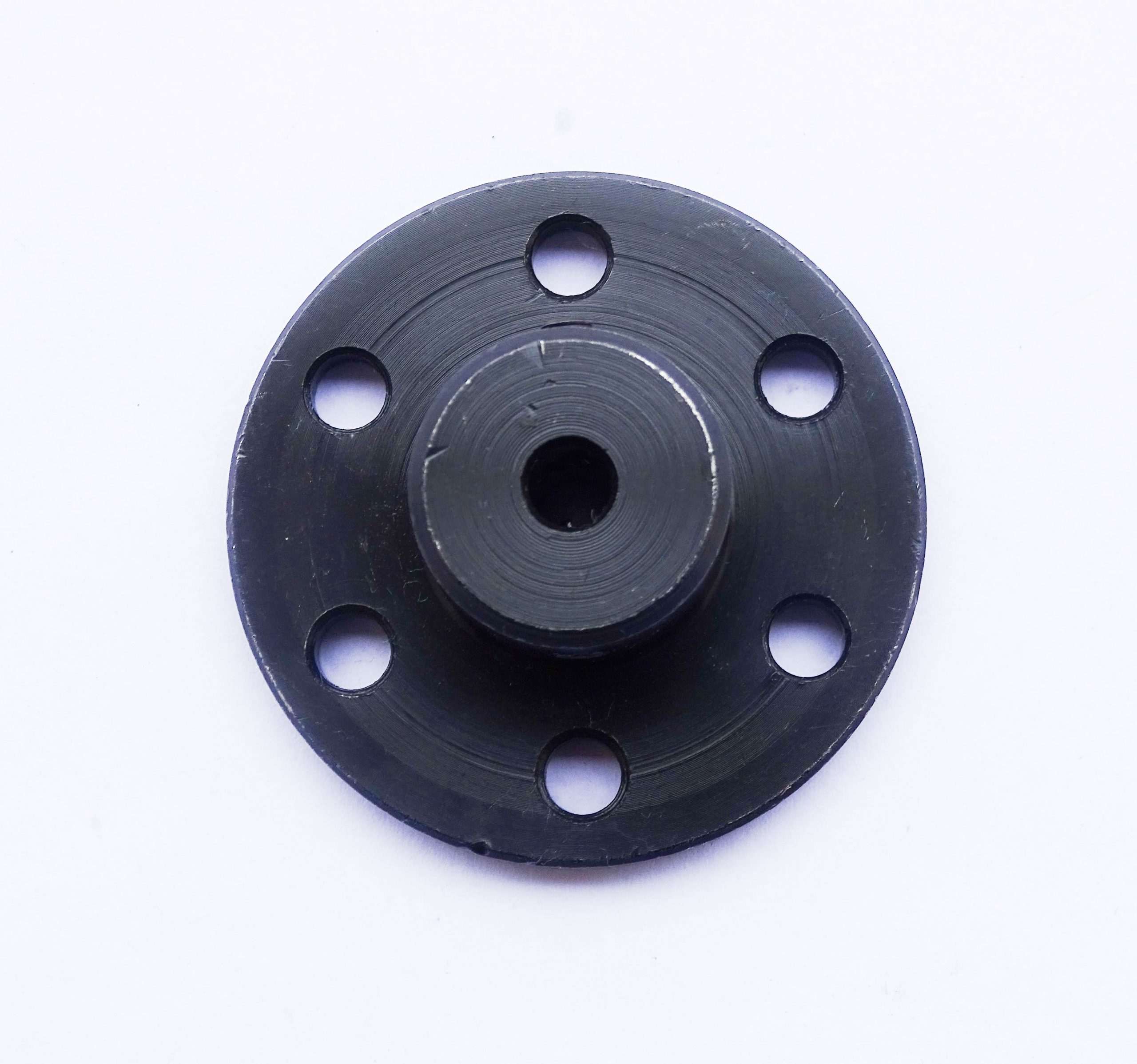

This coupling is compatible with all NEMA17 stepper motors. The EasyMech NEMA17 Motor Coupling Hub 5 MM Internal Dia (ID) (Small) is a special design for the Motors having a shaft diameter of 5mm.
So don’t look further and buy this NEMA17 Coupling by EasyMech and start running your Wheel or Disc with precise position control.
These couplings are manufactured with the high-quality hardened Mild Steel which makes them more sturdy and durable. Also, the use of MS material makes them much heavy and increases the strength of coupling.
Kindly take a note that you can connect a wheel/disc which has a Pitch Circle Diameter(PCD) of 35mm.
The EasyMech is a brand of Robu.in which designs, produces and supplies the different types of hubs or couplings, It also accepts the custom design suggestions from the customers starting from low quantity orders.
Compatible wheel by EasyMech,
EasyMech 100mm Double Aluminium Omni Wheel (BUSH TYPE ROLLER)
EasyMech 100mm Double Aluminium Omni Wheel (BEARING TYPE ROLLER)
1 x EasyMech NEMA17 MOTOR Coupling HUB 5 mm.
1 x Medium Quality Allen Key 2mm
2 x MS M4x6 Socket Set Screws (Allen Grub)
