Dimensional Drawing
EasyMech 127mm Aluminium Mecanum wheels (Bearing Type Rollers) – Right
- Size : 5″(127 mm) Diameter.
- Thickness of wheel : 50 mm.
- Weight : 502 gm.
- Plate Thickness : 2.5 mm.
- Side plates : Aluminum(High Grade alloy aluminium).
- Number of Plates per wheel : 2.
₨ 100.10
Out of stock
Out of stock
12
People watching this product now!
| Internal Diameter(ID)(mm) |
18 |
|---|---|
| Length of Roller (mm) |
47.5 |
| Load Capacity(Kg/Wheel) |
12 ~ 15 |
| Net weight (g): |
502 |
| Number of Plates |
2 |
| Number of Rollers per Wheel |
12 |
| Outer Diameter (OD) (mm) |
127 |
| Roller Material |
Nylon+ TPR |
| Spacer material |
Nylon |
| Wheel Width (mm) |
50 |
| Plate Thickness (mm) |
2.5 |
| Diameter of Holes |
5 mm (M5 bolt compatible). |
| Holes for Mounting |
PCD 47.5 mm. |
| Nut Type |
Hex, Nyloc Nut. |
| Shipping Weight | 0.7 kg |
| Shipping Dimensions | 13 × 13 × 6 cm |

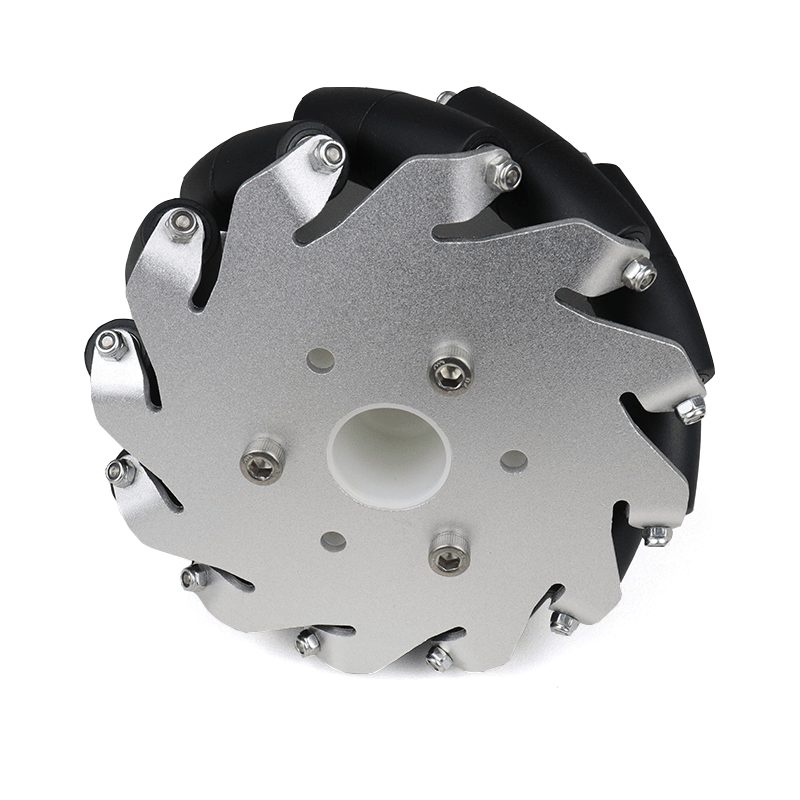

The EasyMech 127mm Aluminium Mecanum wheels (Bearing Type Rollers) – Right allow a robot to achieve omnidirectional movement while supporting large weights. The 5″(127mm) Mecanum wheel utilize 12 rollers positioned between 2 plates.
A wheel is connected to its own, independent motor and driven independently. Every wheel includes a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
Mecanum wheel using a standard chassis shape and powering each wheel with a different motor, which can be capable of moving in any direction, no need to change the direction the wheels spin. This design enables the wheel to propel your robot forward, backward and directly sideways.
EasyMech Wheels are Robu.in‘s new branded wheels.
What is EasyMech?
Package Includes :
1 x EasyMech 127mm Aluminium Mecanum wheels (Bearing type roller).

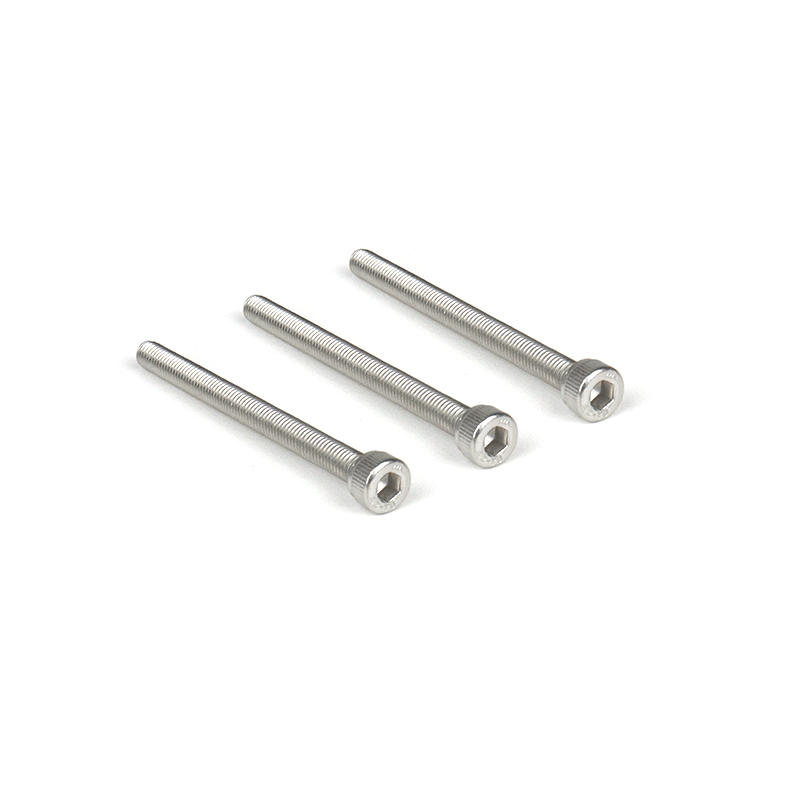

3 x M5 x 65mm Allen Bolt.
