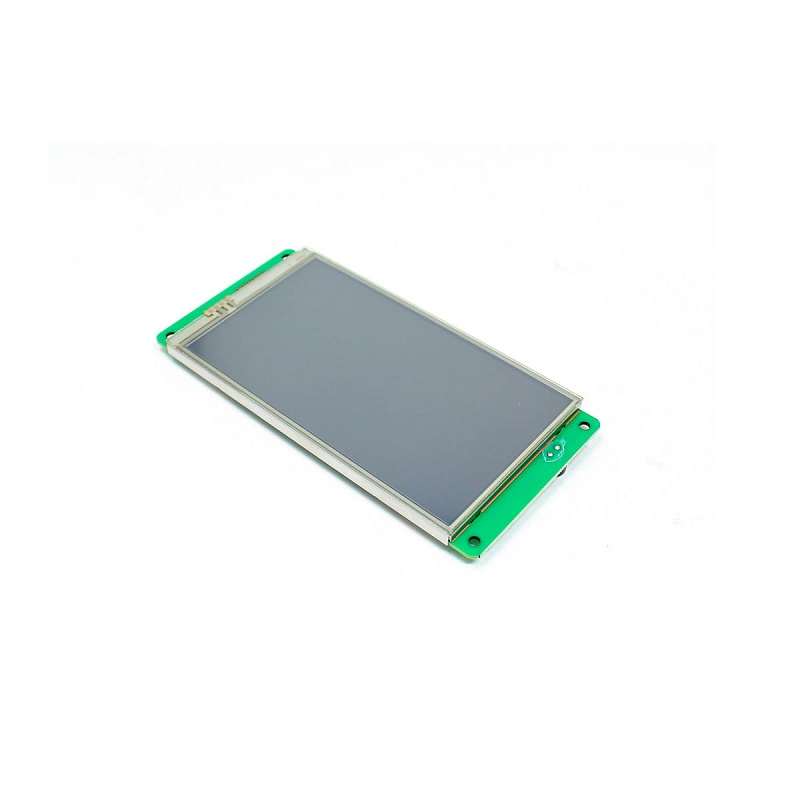

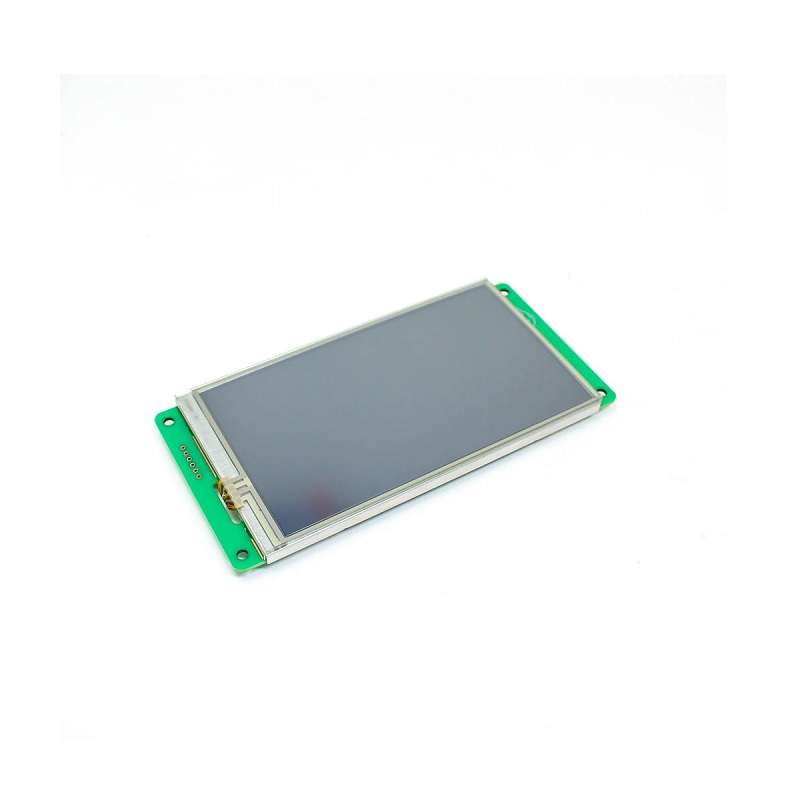

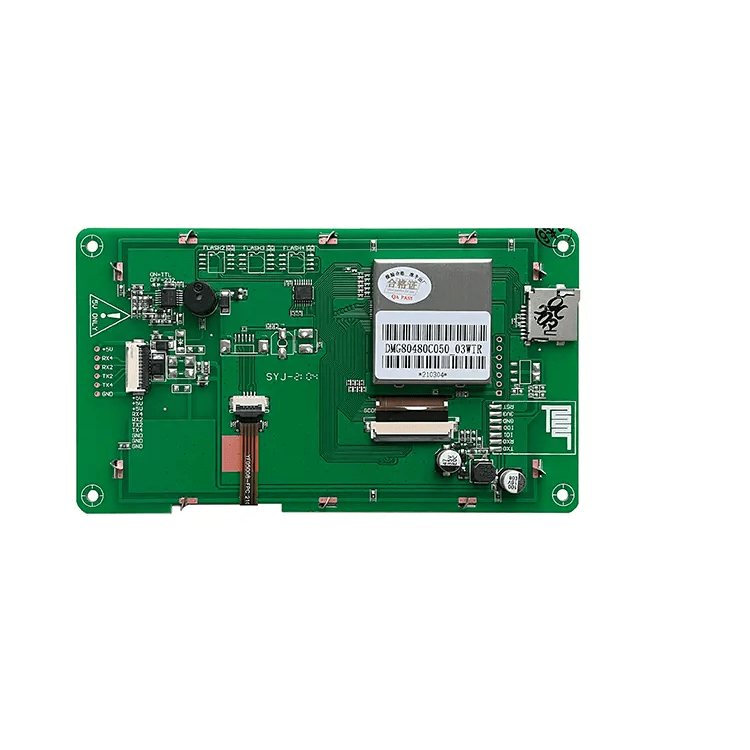

DWIN HMI 5 Inch TN LCD Resistive Touch Display

DWIN HMI 5 Inch TN LCD Resistive Touch Display is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software pre-installed from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Suh as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB colour and 16.7M colours. It is also equipped with 250nitnit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.

Note : Image may vary in terms of design.

Features:

1. Built-in DGUS II intelligent software
2. Integrated smart screen
3. Powerful data management
4. Operating Voltages:5V typical.(MIN:4.5V,MAX:5.5V)
5. Dimensions:143.5(W) × 80.9(H) × 15.8(T) mm
6. 16.7M colors
7. Resistive Touch Display

Display:

1. Size -5″
2. Resolution: 800 x 480
3. Brightness -250nit
4. Active Area – 108.0mm (W) ×64.8mm (H)
5. Colour – 24-bit colour 8R8G8B
6. Backlight – LED

Interface:

Package Includes :

1 x DWIN HMI 5 Inch TN LCD Resistive Touch Display
