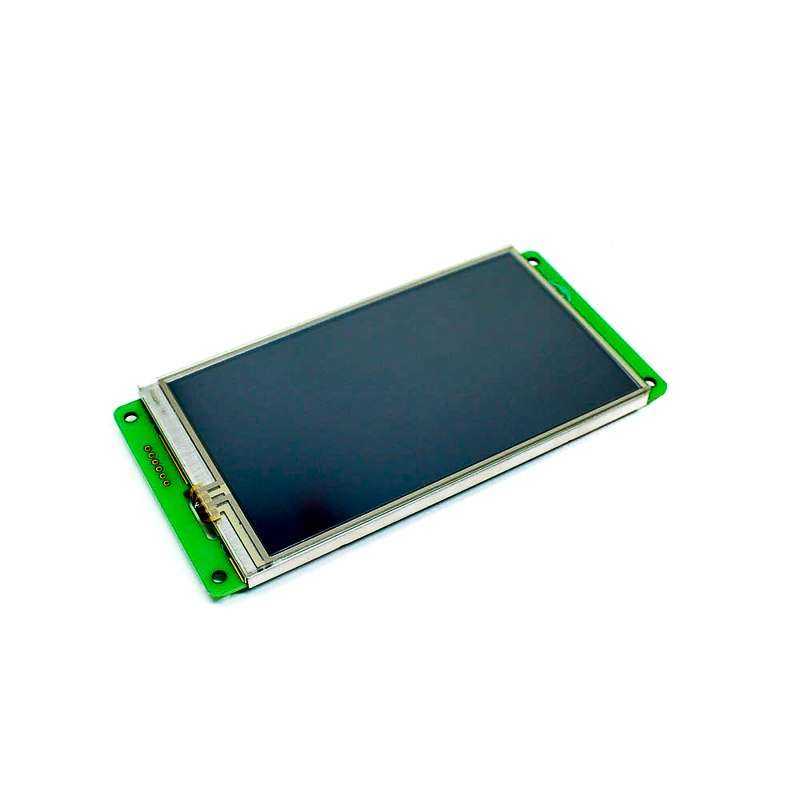

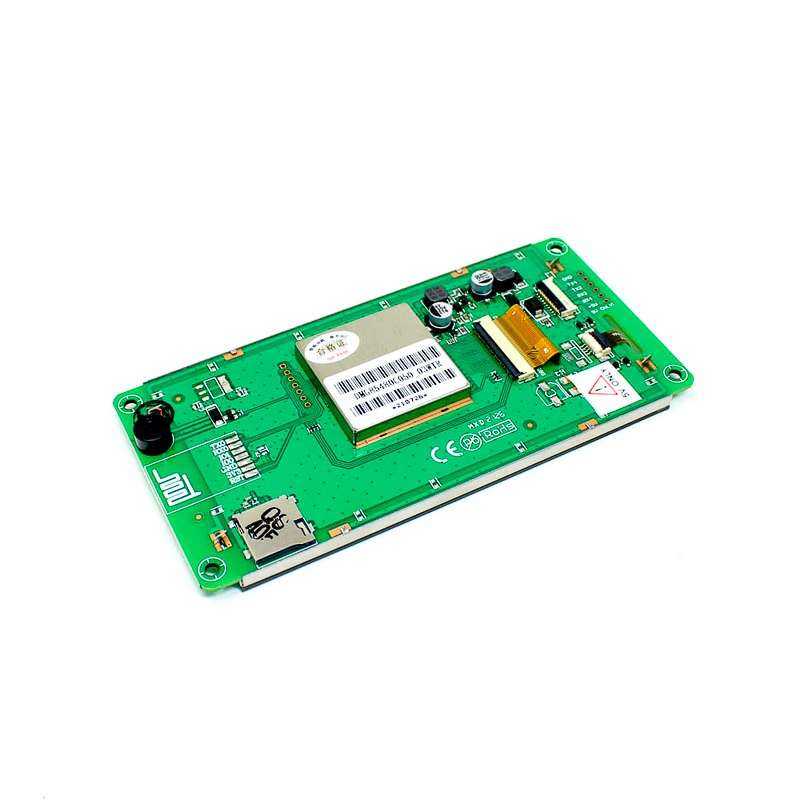

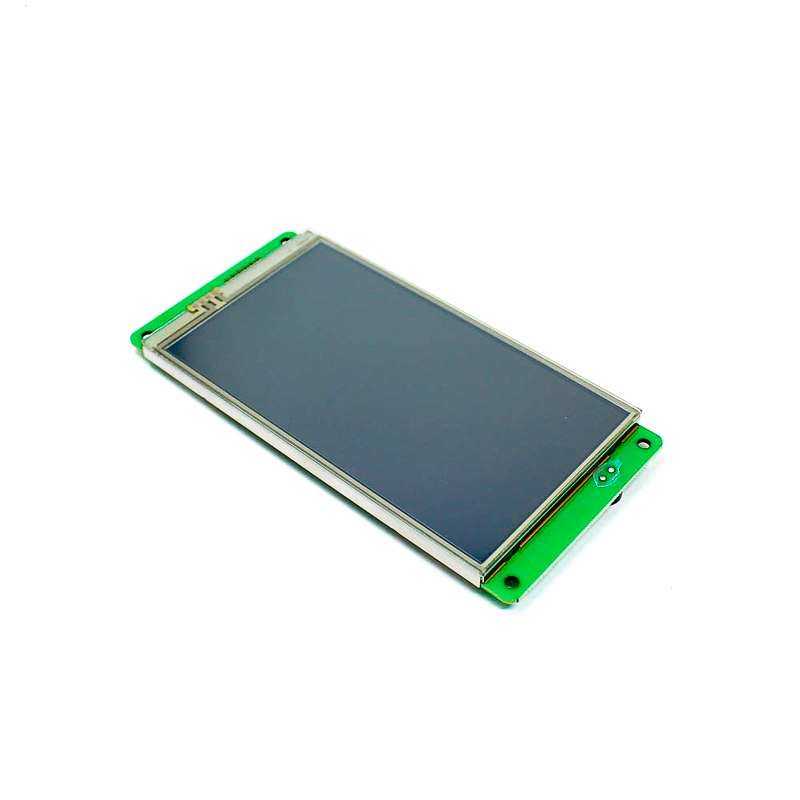

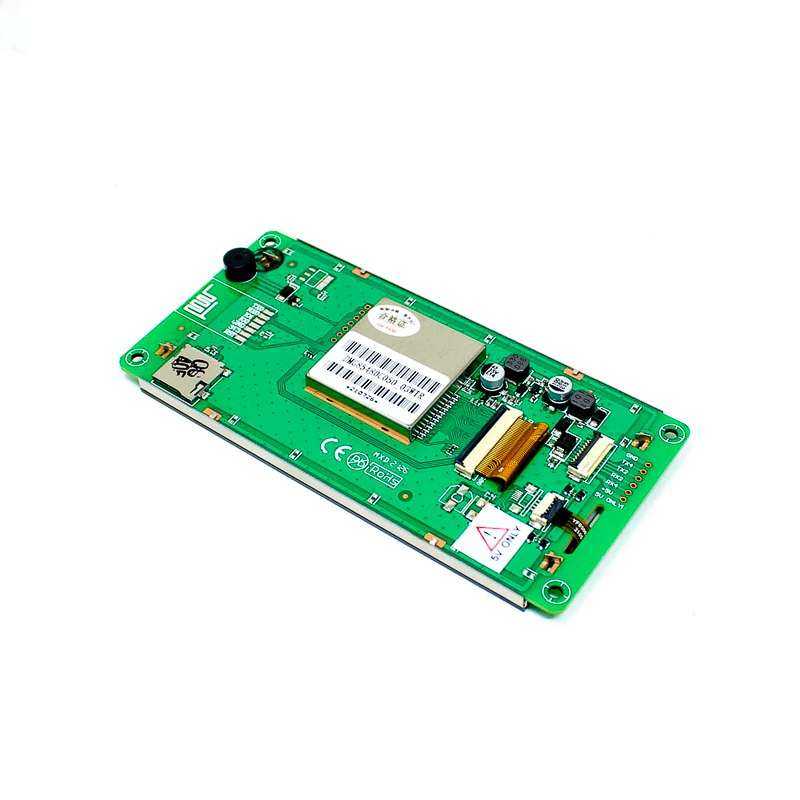

DWIN HMI 5 Inch IPS LCD Resistive Touch Display

This DWIN 5 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Suh as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it is supported with RGB colour and 16.7M colours. It is also equipped with 250nitnit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.

Features:

1. Built-in DGUS II intelligent software
2. Integrated smart screen
3. Powerful data management
4. Operating Voltages:5V typical.(MIN:4.5V,MAX:5.5V)
5. Dimensions:143.5(W) × 80.9(H) × 15.8(T) mm
6. 16.7M colours
7. Resistive Touch Display

Display:

1. Size -5″
2. Resolution: 480 x 854
3. Brightness -250nit
4. Active Area – 108.0mm (W) ×64.8mm (H)
5. Colour – 24-bit colour 8R8G8B
6. Backlight – LED

Interface:

Package Includes :

1 x DWIN HMI 5 Inch IPS LCD Resistive Touch Display
