DFRobot Fermion MEMS Formaldehyde HCHO Gas Detection Sensor (Breakout, 0-3ppm)

This is DFRobot Fermion MEMS Formaldehyde HCHO Gas Detection Sensor (Breakout, 0-3ppm). Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. This sensor qualitatively measures the concentration of formaldehyde gas, making it suitable for applications in air purifiers, HVAC systems, smart wearables, portable detectors, and more.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.


Applications:

Note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical CO Sensor (0-1000 ppm, I2C & UART).

Precautions for use

For more info., click below.

Features:

1. Easy to use.

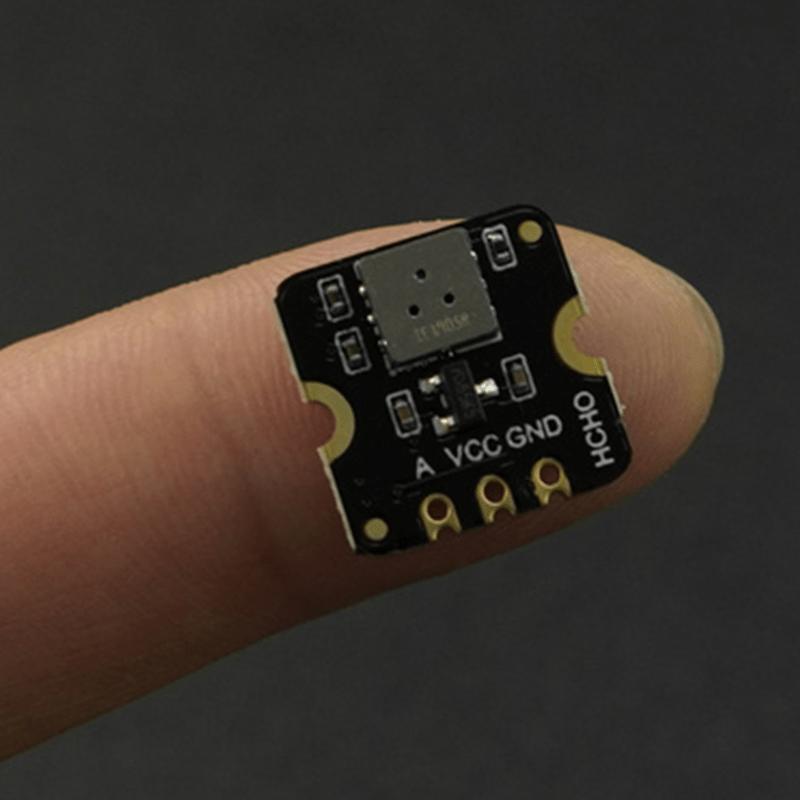

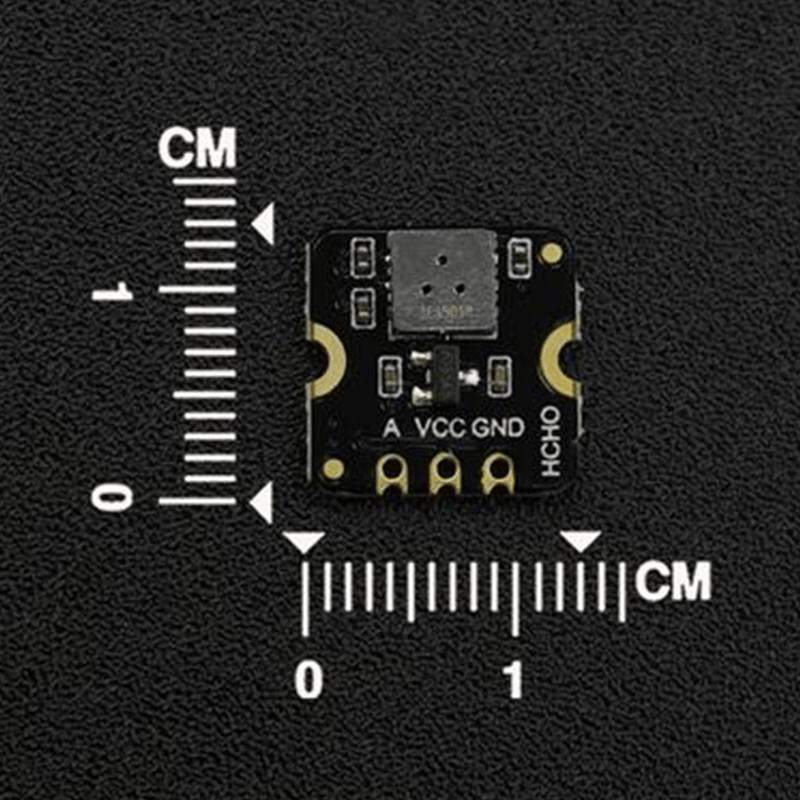

2. Compact size, measuring only 13*13*2.5mm
3. Low power consumption,operating current ＜20mA
4. High sensitivity and rapid response recovery
5. Advanced MEMS technology
6. Gas detected: HCHO
7. Lifespan: ≥3 years (in air)
8. Sensitivity: R0(in air)/Rs(in 0.4ppm HCHO) ≥ 1.8
9. Good quality product

Package Includes:

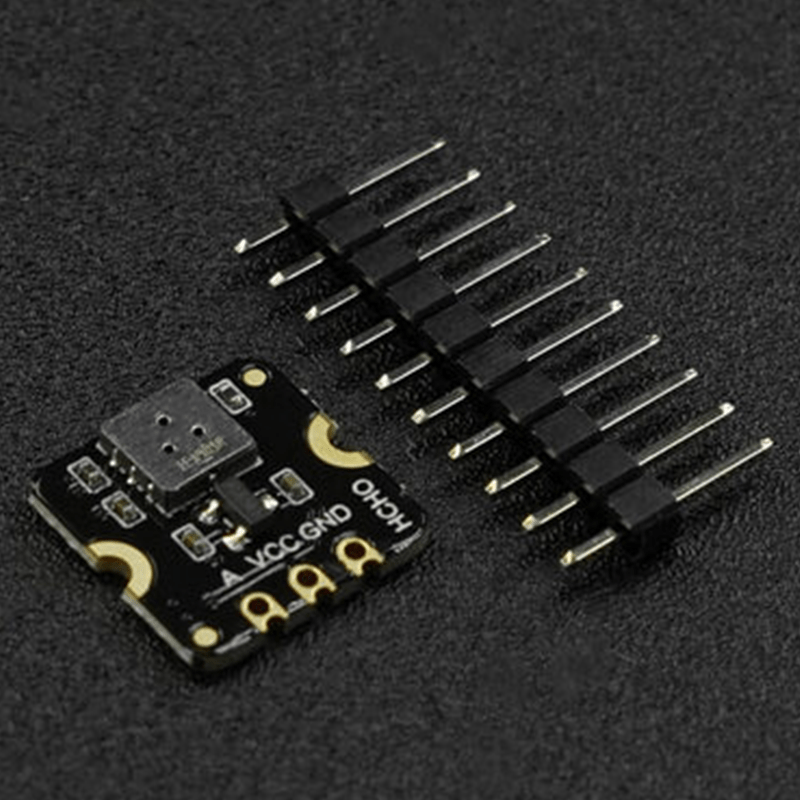

1 x DFRobot Fermion MEMS Formaldehyde HCHO Gas Detection Sensor (Breakout, 0-3ppm)

1 x 2.54mm pitch header pin
