| Item Type: |
Normally Closed |
|---|---|
| Voltage Rating (VDC/VAC): |
12VDC |
| Valve Type |
2 Way Normally Open |
| Port Size |
1/4″ BSP Female Port |
| Coil Voltage |
DC12V |
| Service Media |
Air, Gas, Liquid, Water |
| Operation Mode |
Direct Acting |
| Flow Model |
Uni-Directional |
| Flow Rate |
0.23Cv (Fluid Flow) |
| Response Time(s) |
Less than 50 ms |
| Pressure Range (MPa) |
1.2Mpa |
| Operating Temperature (°C) |
-10 to 80 °C |
| Coil Power |
6.5W |
| Shipping Weight | 0.13 kg |
| Shipping Dimensions | 9 × 7 × 3 cm |
DC 12V Solenoid Valve 1/4″ 2 Way Normally Closed Direct-Pneumatic Valves For Water Air Gas Hot
- Valve Type: 2 Way Normally Open
- Port Size: 1/4″ BSP Female Port
- Coil Voltage: DC12V
- Flow Model: Uni-Directional
- Flow Rate: 0.23Cv (Fluid Flow)
- Response Time: Less than 50 ms
- Operating Pressure: 1.2Mpa
₨ 1,192.00
Out of stock
Out of stock
10
People watching this product now!

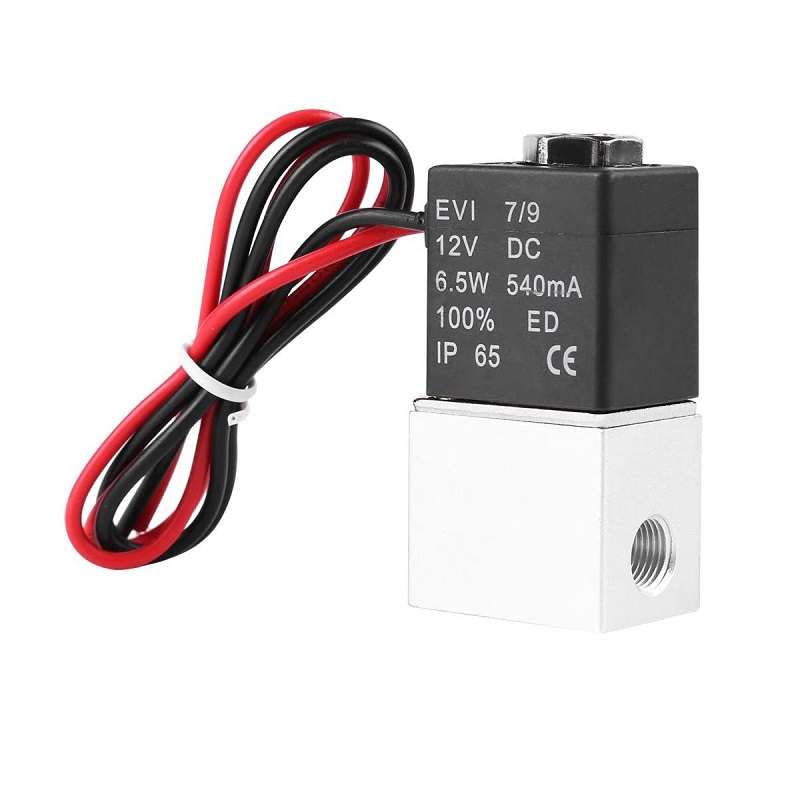

This is a DC 12V Solenoid Valve 1/4 inch 2 Way Normally Closed Direct-Pneumatic Valves For Water Air Gas Hot.
The 12V Solenoid Valve works with the solenoid coil which operates electronically with DC 12 volt supply. As it is a normally closed assembly, it opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage removed.
Note: While Connecting the Valve in the Flow pipeline, you need to mind the Input and Output direction of the valve. It will work only if you connect it in the right direction. (Hint: Inside the value, at one side you will find the filter this is the input side of the value).
Package Includes:
1 x DC 12V Solenoid Valve 1/4 inch 2 Way Normally Closed Direct-Pneumatic Valves
