| Processor |
STM32F412 |
|---|---|
| Input Voltage (V) |
6 to 62 |
| Max Current (A) |
110 |
| Resolution |
0.01A/V |
| Voltage accuracy(V) |
±0.05 |
| Current accuracy(A) |
±0.1 |
| Power port output(V) |
5.4V/5A |
| Max output power(W) |
6000 |
| Max stable power(W) |
5000 |
| Protocols |
UAVCAN |
| Firmware upgrade |
Support |
| Interface Type |
CAN: GHR-04V-S, IN/OUT:XT90(Cable）, Power:5025850670 |

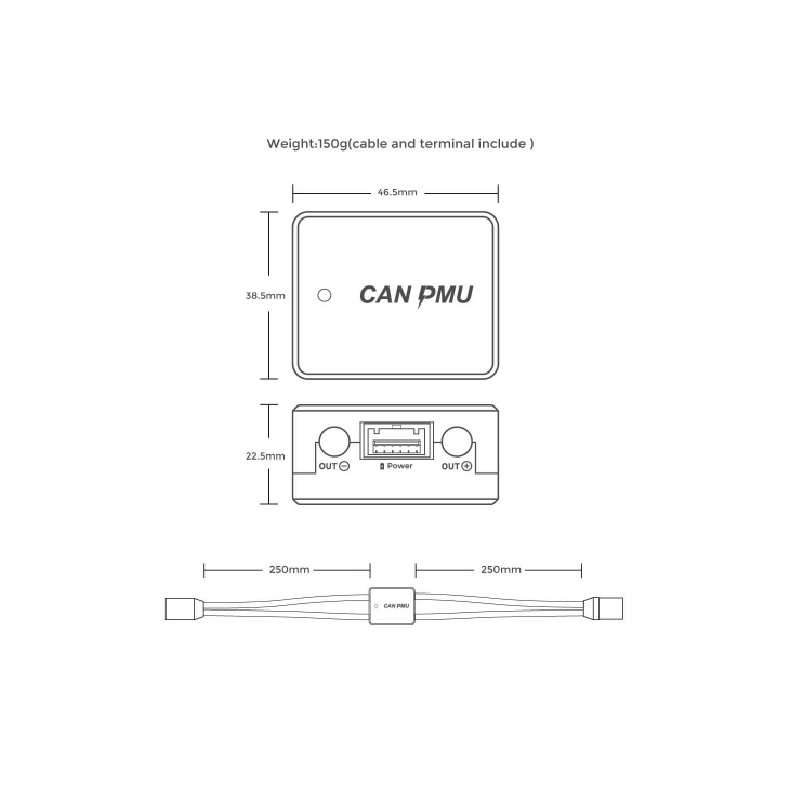

| Length (mm): |
46.5 |
| Width (mm): |
38.5 |
| Height (mm): |
22.5 |
| Weight (g): |
76 |
| Shipping Weight | 0.314 kg |
| Shipping Dimensions | 16 × 16 × 4 cm |

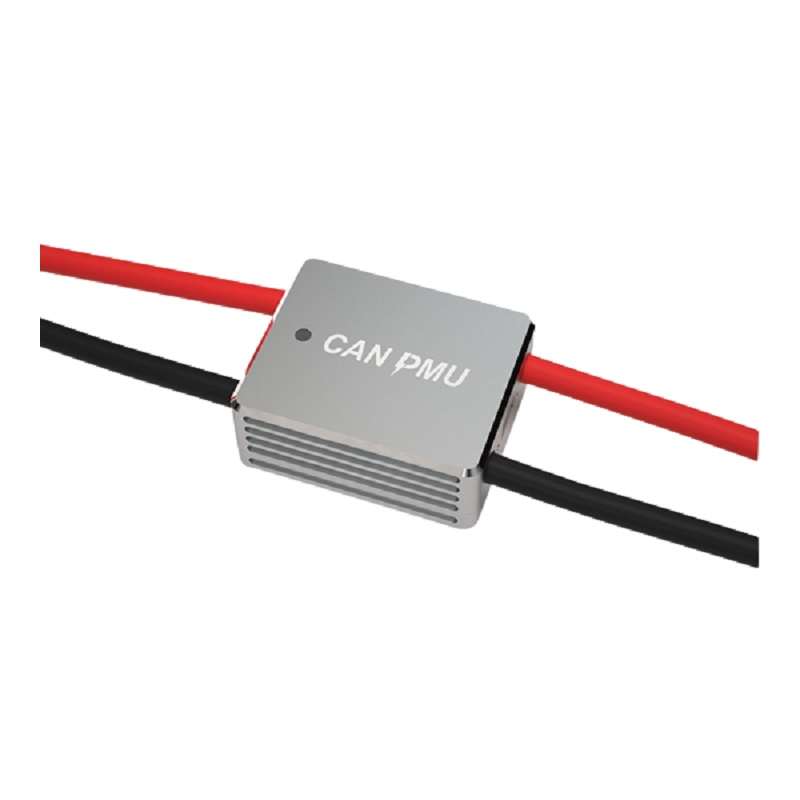

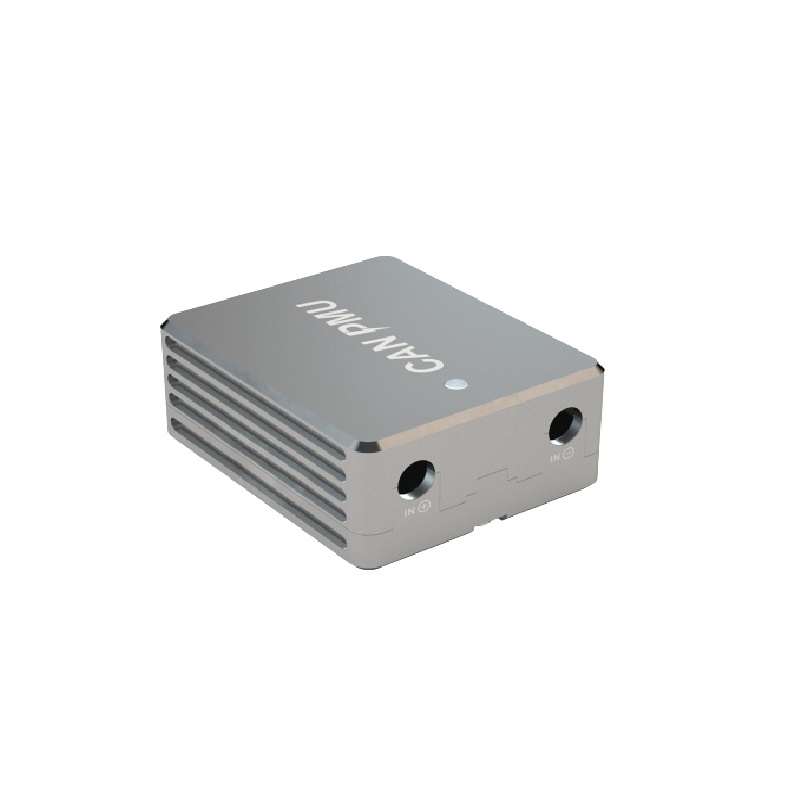

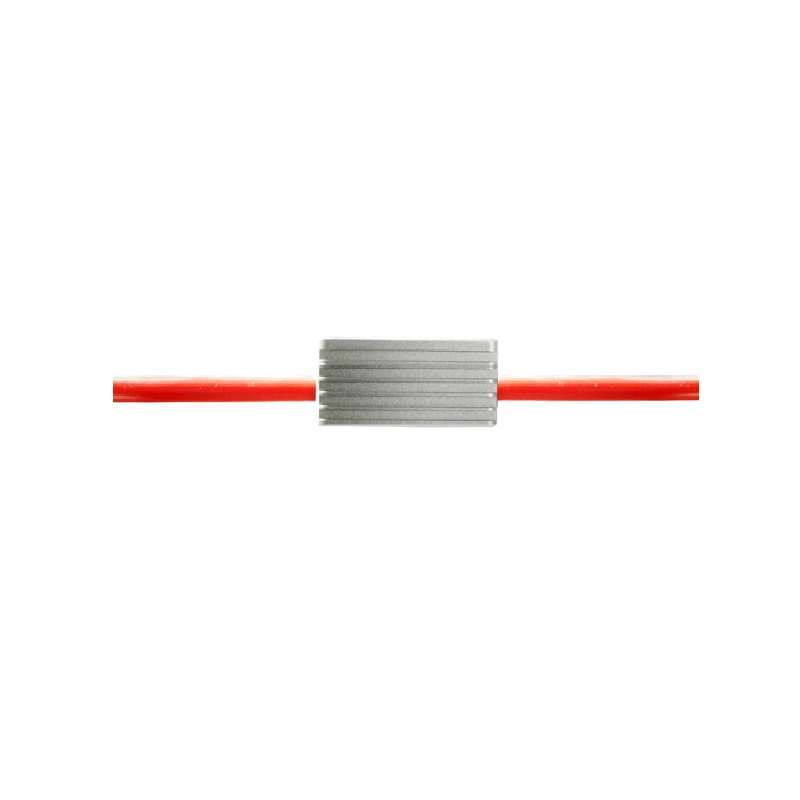

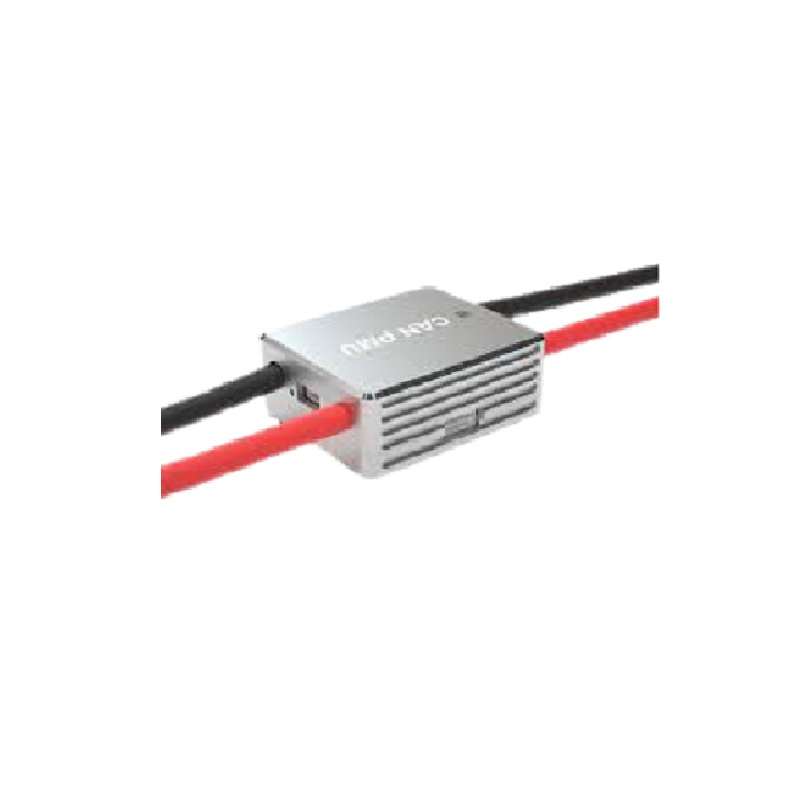

CUAV CAN PMU Autopilot Power Module
- Model: CAN PMU
- Processor: STM32F412
- Input Voltage: 6 to 62 V
- Max Current: 110A
₨ 100.10
Out of stock
Out of stock
11
People watching this product now!
CUAV CAN PMU Autopilot Power Module is a drone power management module with a built-in STM32F4 processor; running CUAV ITT compensation algorithm can accurately measure the voltage and current of the drone; support 6~62V voltage input, and the POWER port can output 5V/ 8A. It uses advanced CAN bus communication and supports the standard UAVCAN protocol; each PMU uses factory-level calibration to ensure good consistency and high accuracy.
Features:
- Efficient power management for autopilot systems in UAVs.
- Utilizes a CAN interface for seamless integration with autopilot systems.
- Supports multiple power inputs for redundancy and uninterrupted operation.
- Real-time monitoring of voltage and current levels.
- Facilitates power distribution to various UAV components.
- Incorporates overcurrent and overvoltage protection mechanisms.
- Configurable parameters for customization.
- Compact and lightweight design.
Package Includes:
1 x CUAV CAN PMU Autopilot Power Module
1 x X7 Series Power Cable
1 x V5 Series Power Cable
