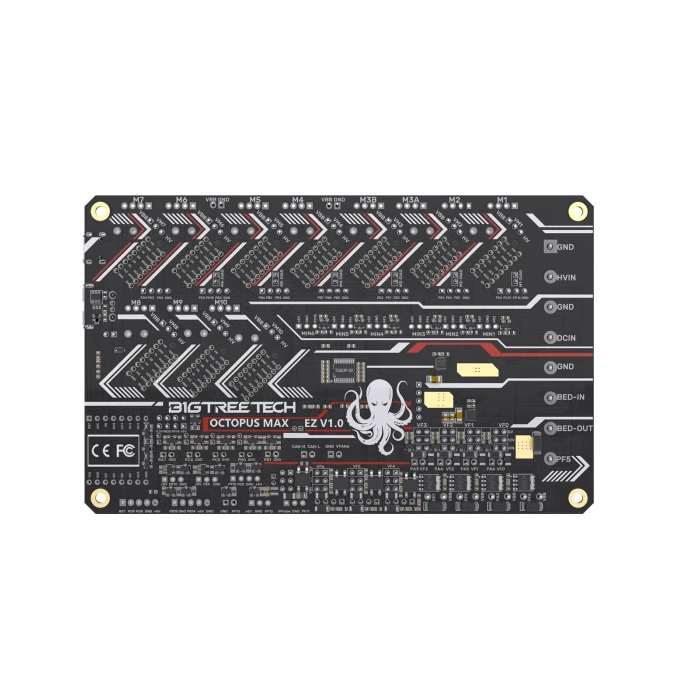

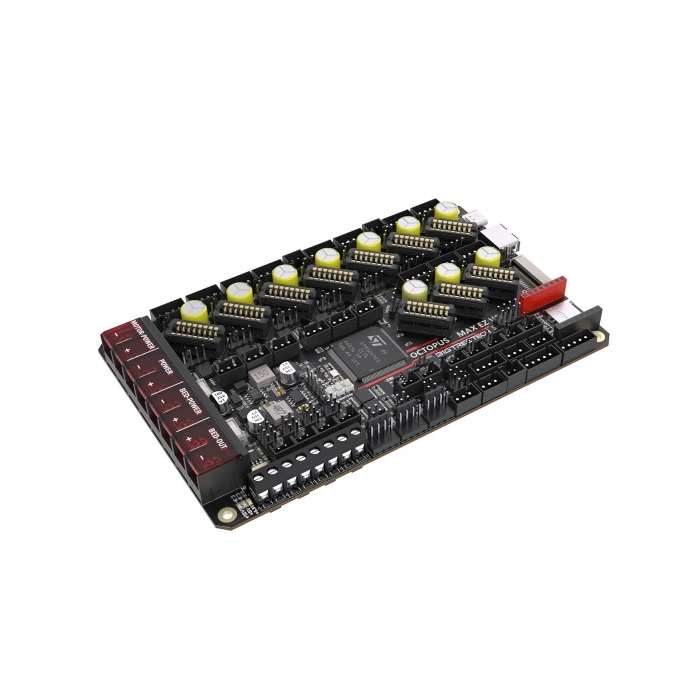

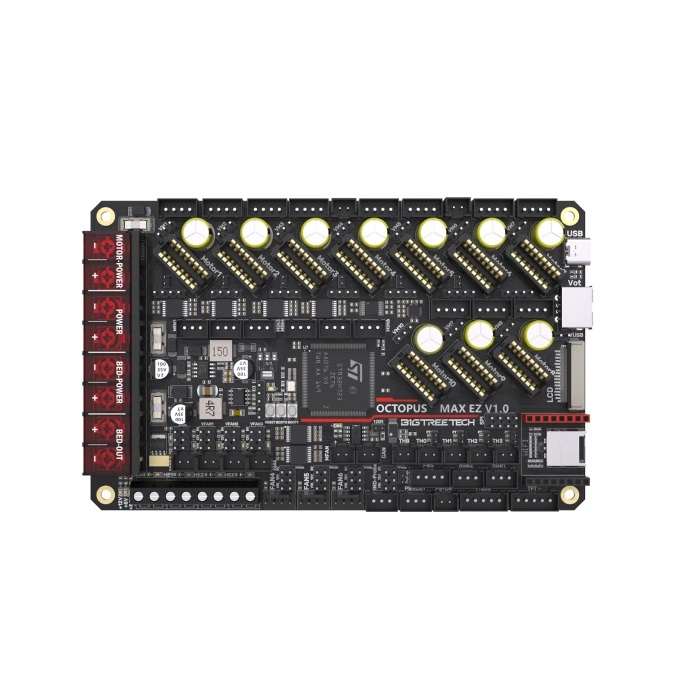

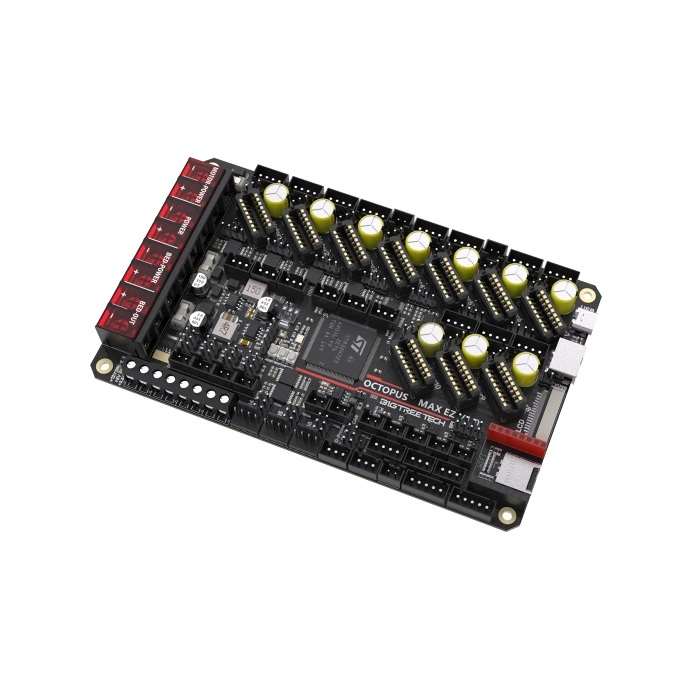

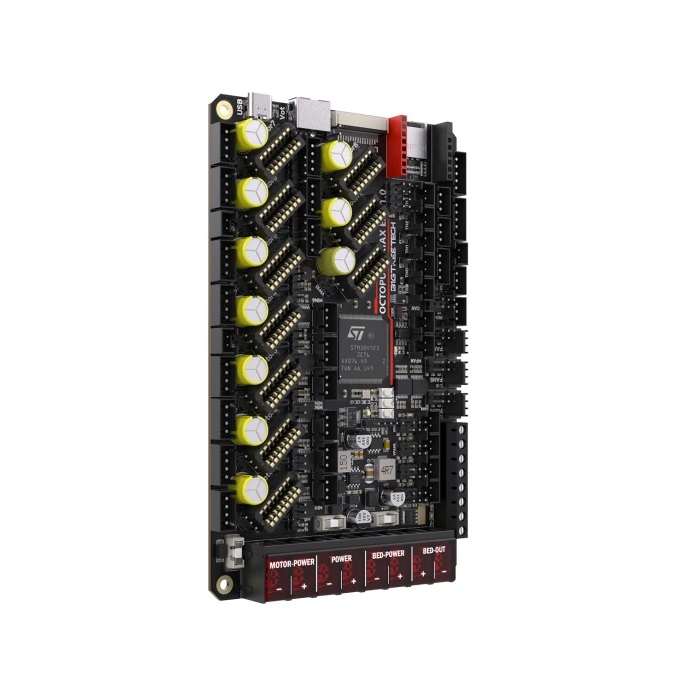

BIGTREETECH BTT Octopus Max EZ for 3D Printer
- Onboard BOOT button to enable DFU mode to update the bootloader
- The thermistor circuit is protected to prevent MCU damage from shorted heated bed and heater cartridge connections
- Selectable voltage (24V, 12V, 5V) for CNC fan, no more need for external stepdown thus preventing board damage from user error
- Upgraded with eFuse protection, which response faster with strong protection, effectively protecting the motherboard from being damaged caused by short circuits, over-current, electric spark, etc
- Support power loss recovery, filament runout sensor, CAN, auto power-off, BL Touch, RGB, etc
- Replaceable fuse for easy maintenance
₨ 100.10
Out of stock
Out of stock
10
People watching this product now!
| Item Type: |
Controller Board Only |
|---|---|
| Model Series: |
BTT Octopus Series |
| Compatibility |
EZ Specific Driver Series |
| Microcontroller |
STM32H723ZET6 |
| MCU Type |
ARM Cortex-M7 STM32H723ZET6 550 MHz |
| Input Voltage (V) |
DC12V or DC24V |
| Logic Voltage (V) |
DC3.3 V |
| PC Communication Interface |
USB Type-C |
| Expansion interfaces |
CAN, FWS, IND-Probe, Probe, PS-ON, PWRDET, RGB x 2, Servos, SPI, TFT, WIFI |
| Compatible Motor Driver |
ET2225, EZ2130, EZ2208, EZ2209, EZ2226, EZ5160 |
| Driver Working Mode |
SPI, UART |
| Motor driver interface |
Motor1, Motor10, Motor2, Motor3, Motor4, Motor5, Motor6, Motor7, Motor8, Motor9 |
| Dimensions (mm) |
160 x 100 x 18 |
| Weight (g): |
175 |
| Shipping Weight | 0.3 kg |
| Shipping Dimensions | 21 × 14 × 5 cm |
BIGTREETECH Octopus MAX EZ, a 32-bit motherboard, is an upgraded version of Octopus Pro developed by the 3D printing team of BTT Its self-developed stepper motor sockets enhance safety and user experience, and it adds a series of features that Octopus Pro does not have, greatly enhancing its DIY capabilities. BIGTREETECH’s Octopus Max EZ is a 32-bit motherboard with many interfaces for versatile upgrade possibilities. The main board is compatible with Klipper and Marlin as well as with a Raspberry Pi.
BIGTREETECH BTT Octopus Max EZ meets the normal operating requirements, but besides these, it also supports various improvements such as upgrading to a dual extruder or running the EZ-MAX31865. It also serves as a replacement in case of a burned-out driver port. The main board is equipped with fail-safe EZ drivers, and has a protected chip and a pinless design, making it extra safe to use.The 32-bit 550MHz ARM Cortex-M7 STM32H723ZET6 microcontroller is compatible with both Marlin and Klipper.
Note: Refer to Manual in the ATTACHMENTS section for more info. regd. the product.
Features:
- 10 driver ports for versatile applications
- PS5450-5A enables direct power supply with a Raspberry Pi
- eFuse for a fast response and precise protection
- CNC fan voltage is freely selectable between 5, 12 and 24 V
- 3 x 4 pins fan port designed for water cooling
- 550MHz ARM Cortex-M7 STM32H723ZET6
Package Includes:
1 x BIGTREETECH BTT Octopus Max EZ for 3D Printer
1 x DIY Crimp Terminal Set
20 x 2.54mm Black Jumper
20 x 2.0mm Black Jumper
1 x 50cm USB2.0 Type-C Data Cable
