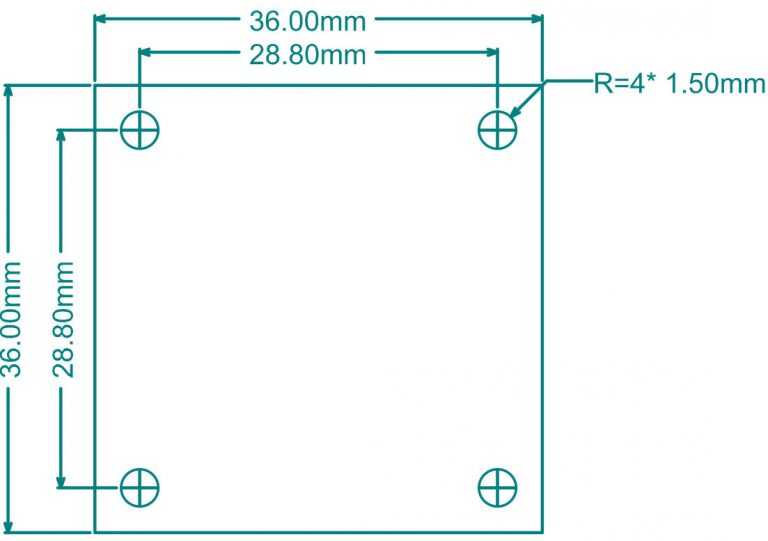

Schematics

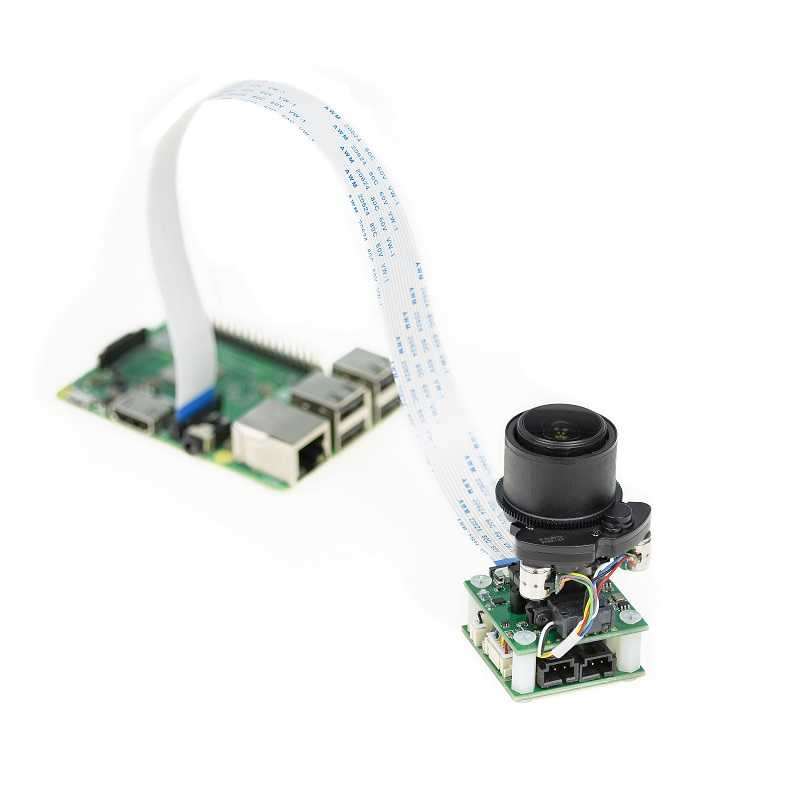

Arducam PTZ Pan Tilt Zoom Camera Controller for Raspberry Pi 4/3B+/3
- Switchable IR Cut through software for your day/night vision
- Autofocus control, pan/tilt/zoom keyboard control supported in software
- 5MP OV5647 1080P Camera board
₨ 100.10
Out of stock
Out of stock
16
People watching this product now!
| Camera Driver |
Native |
|---|---|
| Focus Type |
Auto |
| IR Sensitivity |
IR Cut Switch |
| Interface |
MIPI |
| Resolution |
5 MP |
| Sensor Color |
Color |
| Shutter Type |
Rolling Shutter |
| Focal-Length |
3.2-11.1±5% |
| TTL |
52.14±0.2 |
| Image Circle |
∅6.9 |
| Lens Structure |
6G3P |
| FOV |
1/2.7”(16:9): H(113~30),V(60~16),D(137~34) |
| M.O.D |
0.8m |
| Focus |
Front group: focus |
| Pan and Tilt Range |
0-180° |
| PWM Control Signal Frequency |
50HZ |
| Auto Focus Time |
4s to 20s |
| Zoom Range (Wide => Tele) |
2317 steps 0.00396mm/step |
| Focus Range(Near => Far) |
3009 steps 0.0047mm/step |
| Length (mm): |
36 |
| Width (mm): |
36 |
| Height (mm): |
45 |
| Weight (g): |
20 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 5 × 5 × 5 cm |
PTZ is an abbreviation for pan, tilt, and zoom and reflects the movement options of the camera, and a pan–tilt–zoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control. A PTZ camera is not a still camera. Instead, it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera if a PTZ camera can handle the job. With its moveable lens, you will also be able to zoom the camera to see a specific area that you are interested in. To conclude, it’s “do more with less.
Note: Camera Board is not included in this kit
Useful link:
To use this camera, please follow this tutorial for hardware and software setup.
Features:
- Real PTZ with servos for directional control and varifocal lens for optical zoom now comes to the Raspberry Pi and Jetson Nano / Xavier NX
- Switchable IR Cut through software for your day/night vision
- Make full use of the CSI connector now that a single camera can be used to monitor places that should be covered by multiple ones
- Autofocus control, pan/tilt/zoom keyboard control supported in software
- 8MP IMX219 Camera board

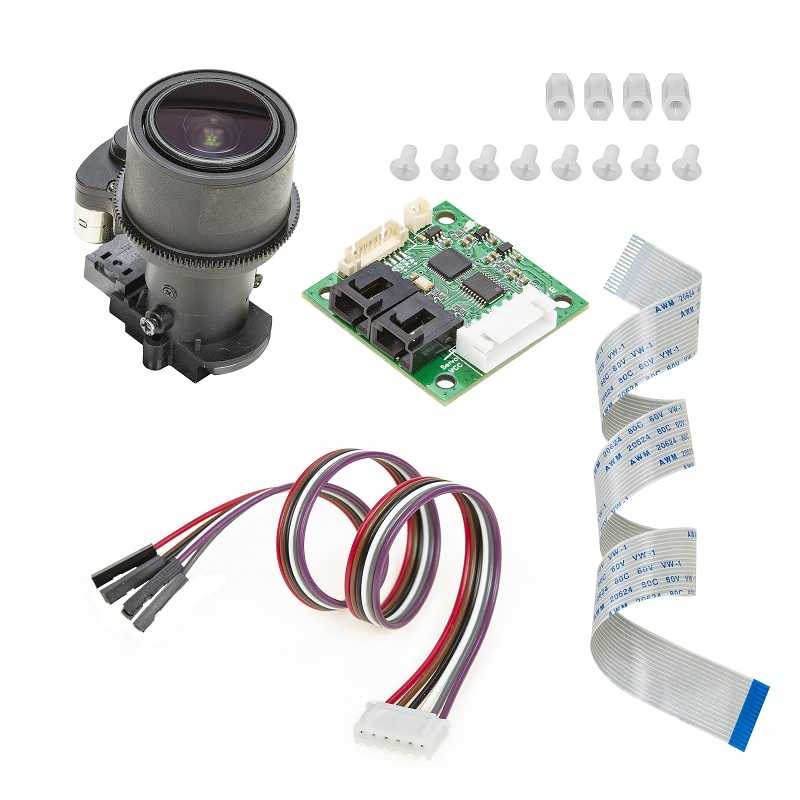

Package Includes:
1 x Arducam PTZ Pan Tilt Zoom Camera Controller for Raspberry Pi 4/3B+/3
