Arducam 64MP Camera and Pan-Tilt Kit for Raspberry Pi

The Arducam 64MP Camera and Pan-Tilt Kit for Raspberry Pi is an advanced camera module designed to capture high-quality images and videos. Equipped with a 64-megapixel sensor, this camera module provides exceptional clarity and detail in every shot.

The Pan-Tilt Kit allows for remote control of the camera’s movement, providing a versatile range of shooting angles and perspectives. The kit includes two servo motors that enable precise control over the camera’s rotation and tilt, allowing for seamless tracking of moving objects or capturing panoramic shots.

With easy installation and compatibility with Raspberry Pi, this camera and the pan-tilt kit is a perfect solution for hobbyists and professionals alike who require high-quality imaging capabilities and flexibility in their projects. Whether for photography, videography, or surveillance applications, the 64MP Camera and Pan-Tilt Kit for Raspberry Pi is a reliable and efficient tool for capturing stunning visuals.

The most powerful pan-tilt camera kit ever made for Raspberry Pi. With our 64MP-AF camera, a handy PT system, and the help of OpenCV, you can build a mini face/movement tracking solution like this:

Features:

1. PTZ-capable: pan-tilt bracket with a camera that supports digital zooming.
2. 64-megapixel: ultra-high resolution for Pi.
3. Autofocus: AF/Manual/Continuous-AF out of the box.
4. Easy to use: compatible with the official software. (libcamera)
5. V1/V2 ready: bracket also supports any camera in v1/v2 form factors.

Specifications:

64MP-AF CAMERA:

1. Optical Size: Type 1/1.7″                                                                                                                                                                                9.25 mm Diagonal (7.4×5.SS mm)
2. Focus Type: Manual/Auto
3. Sensor Resolution: 9152X 6944
4.  Video Mode(on Raspberry Pi): 1080p30,720p60 and 640 x 480p60/90
5. Video Mode(Camera Module): 1280×720@120fps 1920xl080@60fps 2312xl736@30fps                                                                                               4624×3472@10fps 9152×6944@2.7fps 3840×2160@20fps
6. Color Filter: Quad Bayer Coding (QBC}
7. Supported Platforms(Full Resolution – 64MP): Pi48/CM4
8.  Supported Platforms{Superpixel Resolution· 16MP): Pi2/3/CM3/Zero W/Zero 2 W
9.  Raspberry Pi OS: Bullseye (32-bit/64-bit)       (01/28/22 or later releases)
10. Focus: 8cm~INF
11. Focal ratio (F Stop): F1.8
12. Focal length: 5.1mm
13. View Angle: 84 Degrees (Diagonal)
14. Dimensions: 25mm X 24mm
15. Shutter Type: Rolling
16. Output Format: JPEG/YUV/RGB/RAW 10

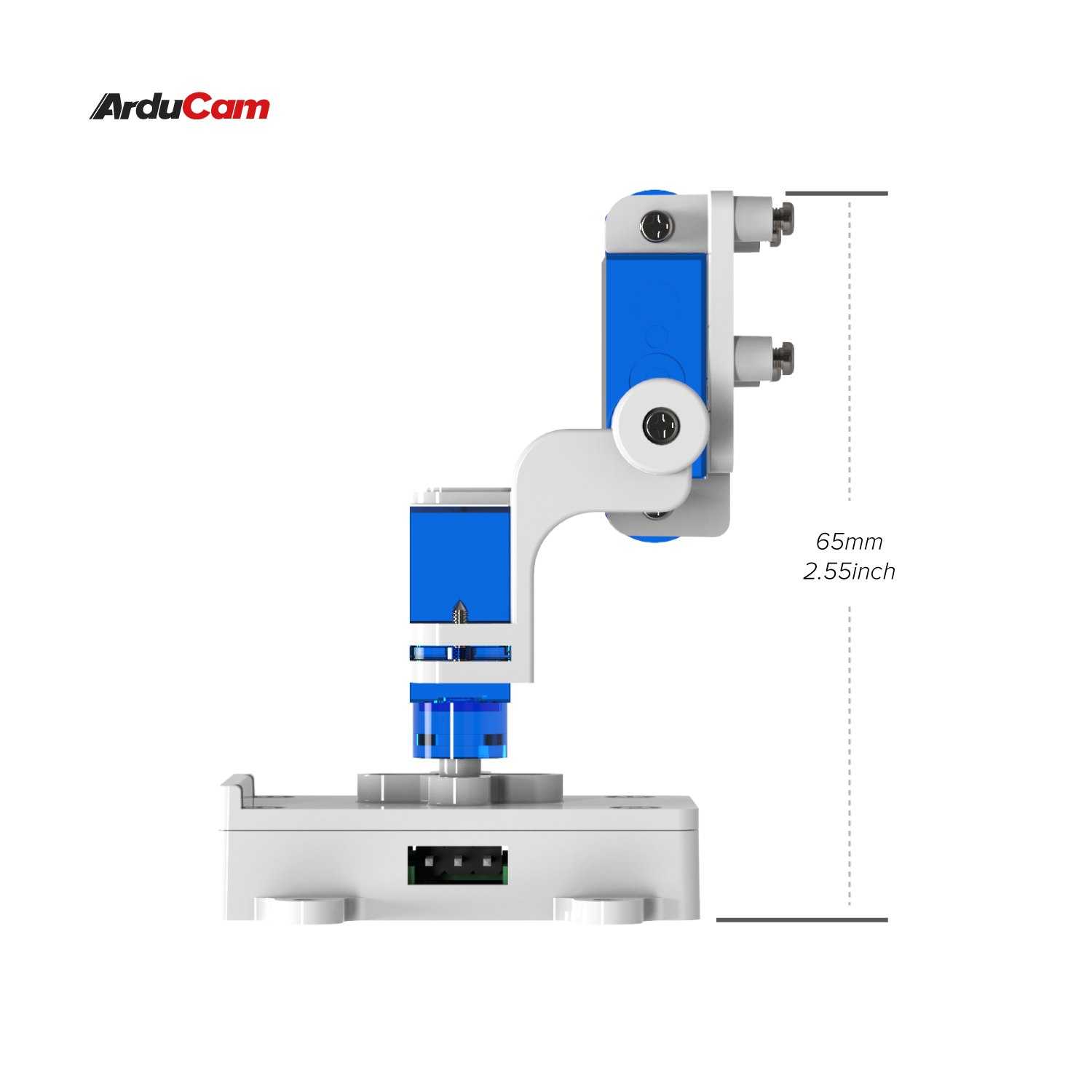

PAN-TILT KIT:
Digital Servo:

1. Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
2. Operating Speed: 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V
3. Operating Voltage: 3.6v～4.8v
4. Operating Current: ＜350mA
5. Dead Band: 3 sec
6. Dimension: 20mm x 8.75mm x 22mm

Customized Control Board

1. PWM resolution: 12-bit
2. Communication interface: I2C
3. Operating voltage: 3V-5V
4. Dimension: 38mm x 28mm

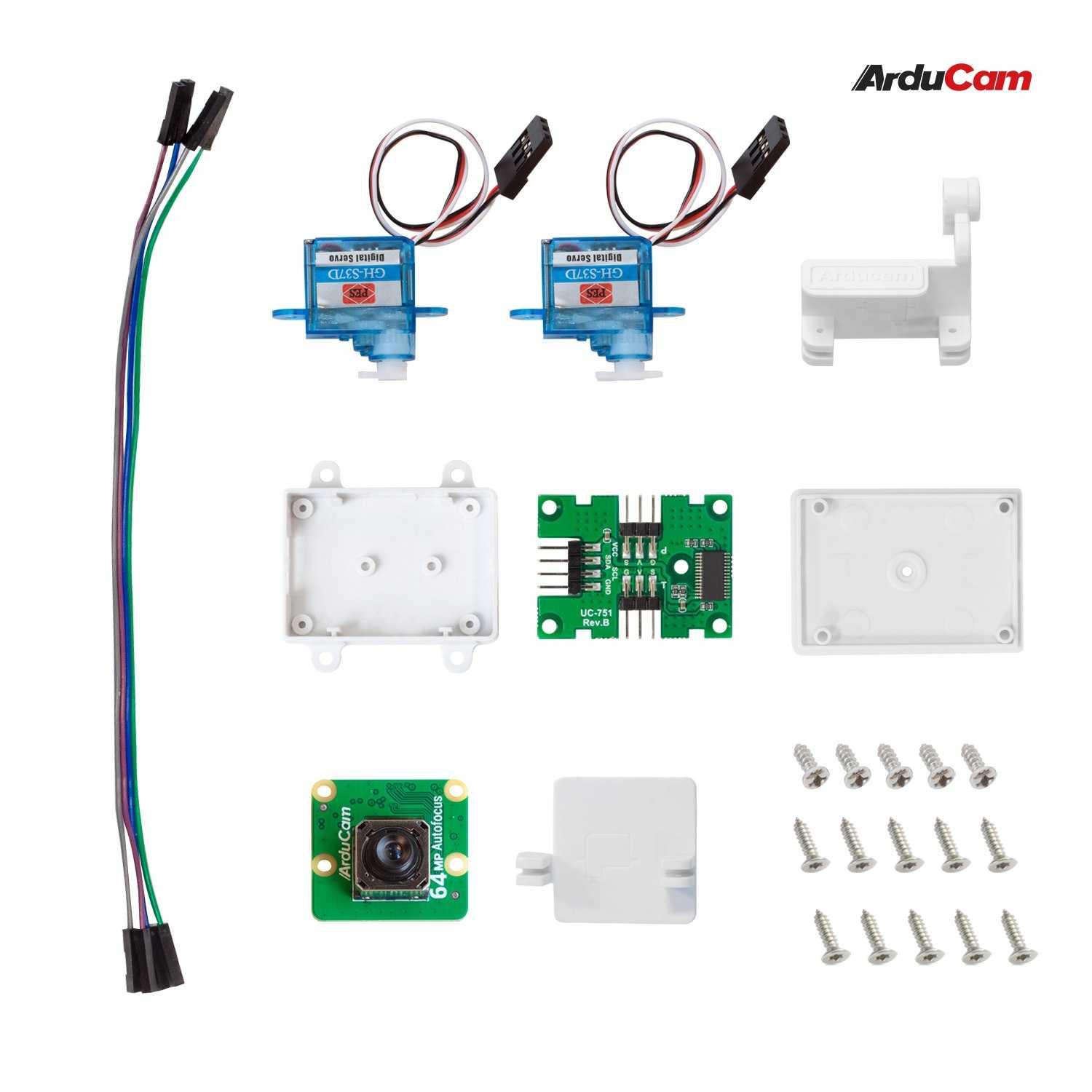

Package Includes:

1 x 64MP-AF Camera

1 x Pan-Tilt Kit
