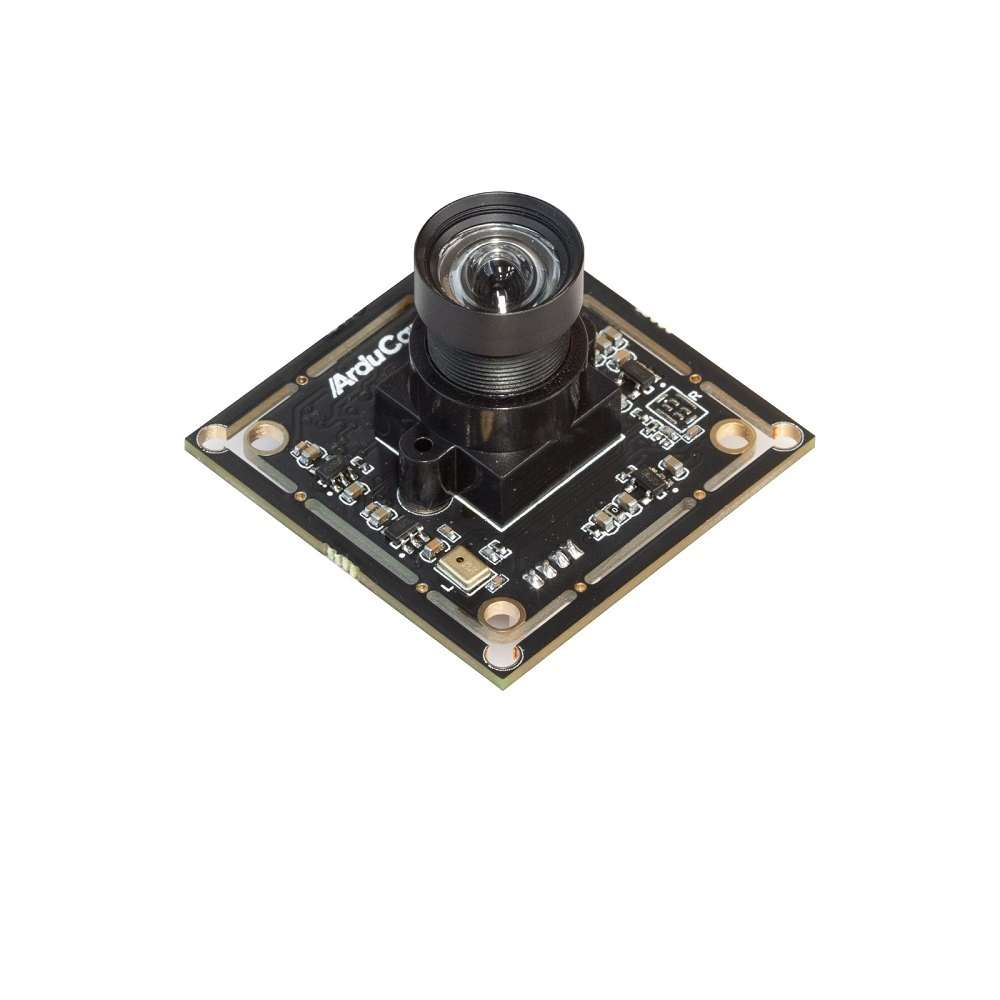

Arducam 1080P Low Light Low Distortion USB Camera Module with Microphone

This IMX323 USB camera boasts a maximum resolution of 2 megapixels utilizing the advanced IMX323 image sensor. With a maximum still resolution of 1920*1080, users can capture detailed images. Moreover, the camera’s frame rate can reach up to 30fps@1080P, ensuring smooth and fluid video capture.

With its low distortion M12 Lens offering a field of view of 83° DFoV, this camera captures stunningly accurate images.

Arducam USB camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows, Linux, Mac OS, and Android, no additional drivers are needed, simplifying the setup process.
Applications:

1. Video conference
2. Home video surveillance system
3. Dashcam
4. Monitoring 3D printer
5. Robot and machine vision

Notes:

1. The package contains small contents, please keep it away from children to avoid accidental ingestion
2. After receiving the package, please confirm whether the contents of the package are consistent with the description.

Features:

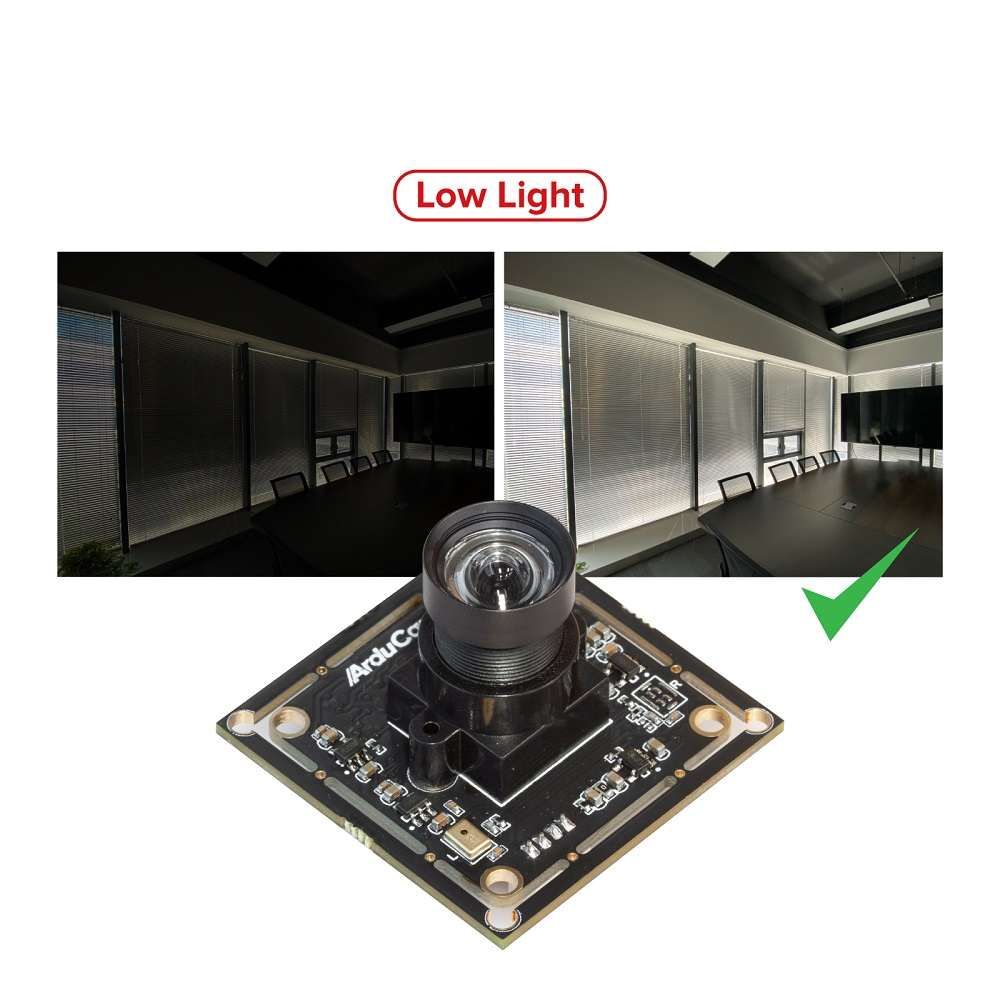

1. HD Resolution and Low Light: Based on a 2MP IMX323 sensor, minimum illumination 0.01 Lux@F1.2
2. Low Distortion: with 83°(D) Low-Distortion (<1%) M12 Lens
3. Capture Video with Audio: H.264/MJPG: 30fps@1080p; YUYV: 30fps@640*480
4. Plug&Play: UVC-compliant, no extra drivers needed
5. Applications: Home surveillance, day-night vision, dashcam, machine vision

Specification:

Sensor:
IMX323

Still Resolution:
2 Megapixels

Color Filter Type:
Color

Shutter Type:
Rolling

Optical Size:
1/2.9″

Output Format:
MJPG/YUYV/H.264

Pixel Size:
2.8μmx 2.8μm

Sensor Active Area:
1936(H)*1097(V)

Frame Rate:
MJPG: 19201080@30fps, 1280720@30fps, 800600, 640360, 640480, 352288,320240@30fps
YUYV: 15fps@800600, 30fps@320240/352288/640360/640480
H.264: 30fps@ 19201080, 1280720, 800600, 640360, 640480, 352288,320*240

Lens

Focus Type:
Manual Focus

FOV:
83°(D)×71°(H)×55°(V)

Lens Mount:
M12 Mount

F.NO:
F2.8

E.F.L:
4mm

Distortion:
<1%

IR Sensitivity:
Integral IR-cut Filter, visible light only

USB Interface

Interface:
USB 2.0 device

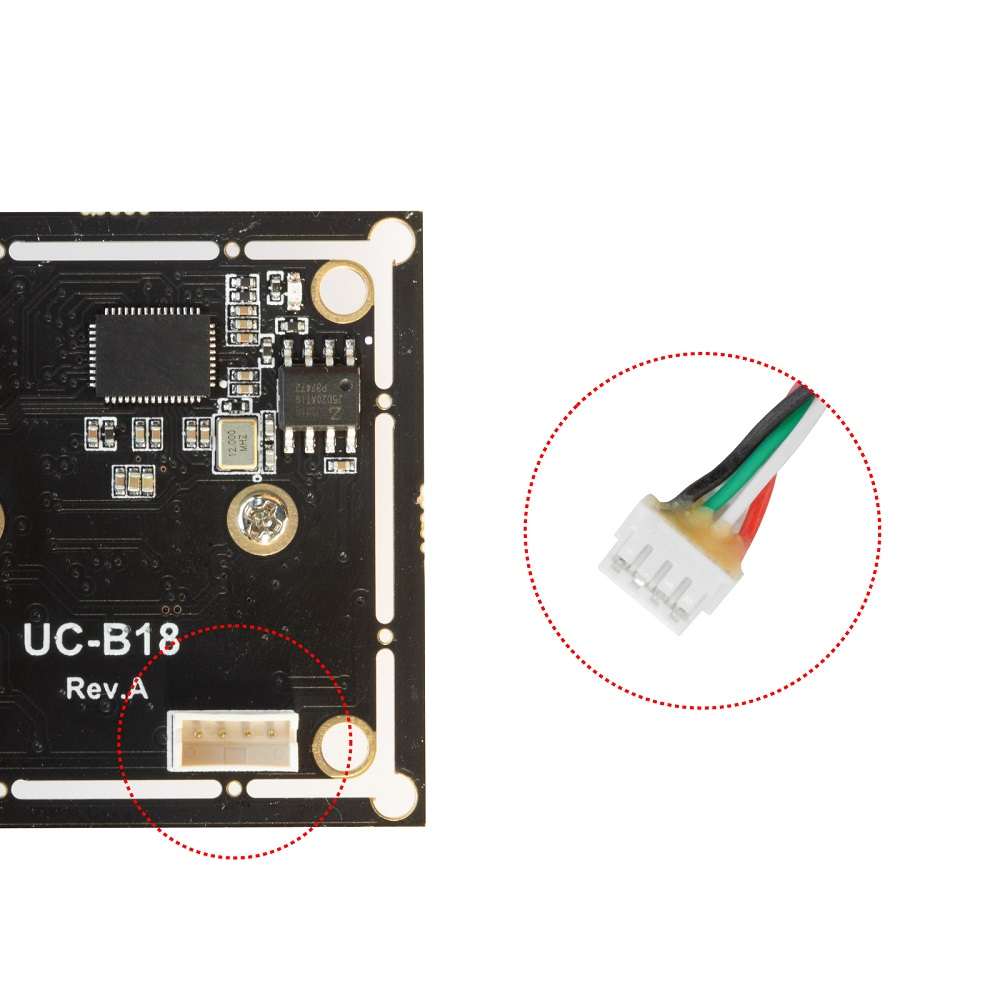

Connector:
S4B-ZR

UVC Compliant:
No additional drivers required

Electrical and Mechanical

Operating Voltage:
5 V +/- 5%

Operating Temp.:
0°C to 70°C

Power Requirements:
Max: 1.25W

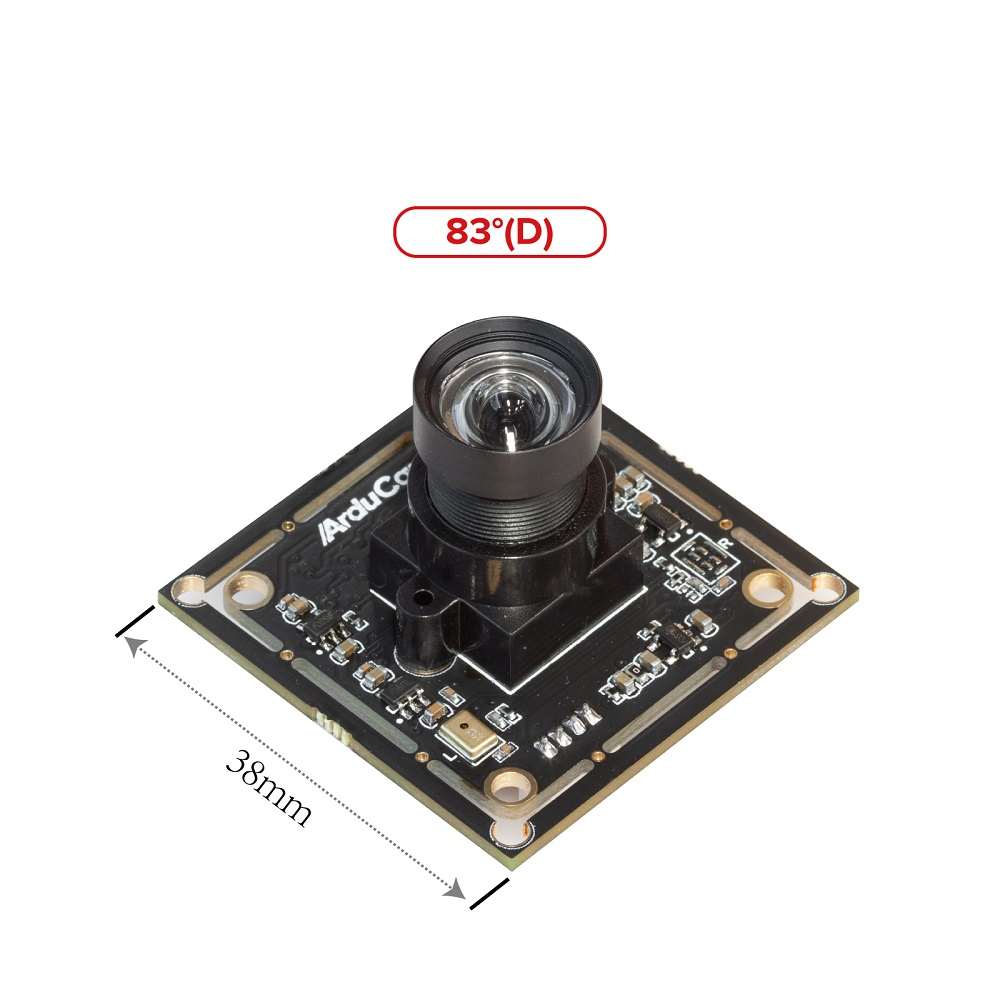

Camera Board Size:
38*38 mm (Hole Pitch: 34mmx34mm, 28mmx28mm)

Functionality and Compatibility

Audio:
Single Microphone

Supported OS:
Windows, Linux, Android, and MAC OS

Sample Application:
AMCap

UVC Controls:
Brightness, Contrast, Hue, Sharpness, Saturation, Gama, Gain, White Balance(Manual and Auto), Backlight contrast, Exposure(Manual and Auto)

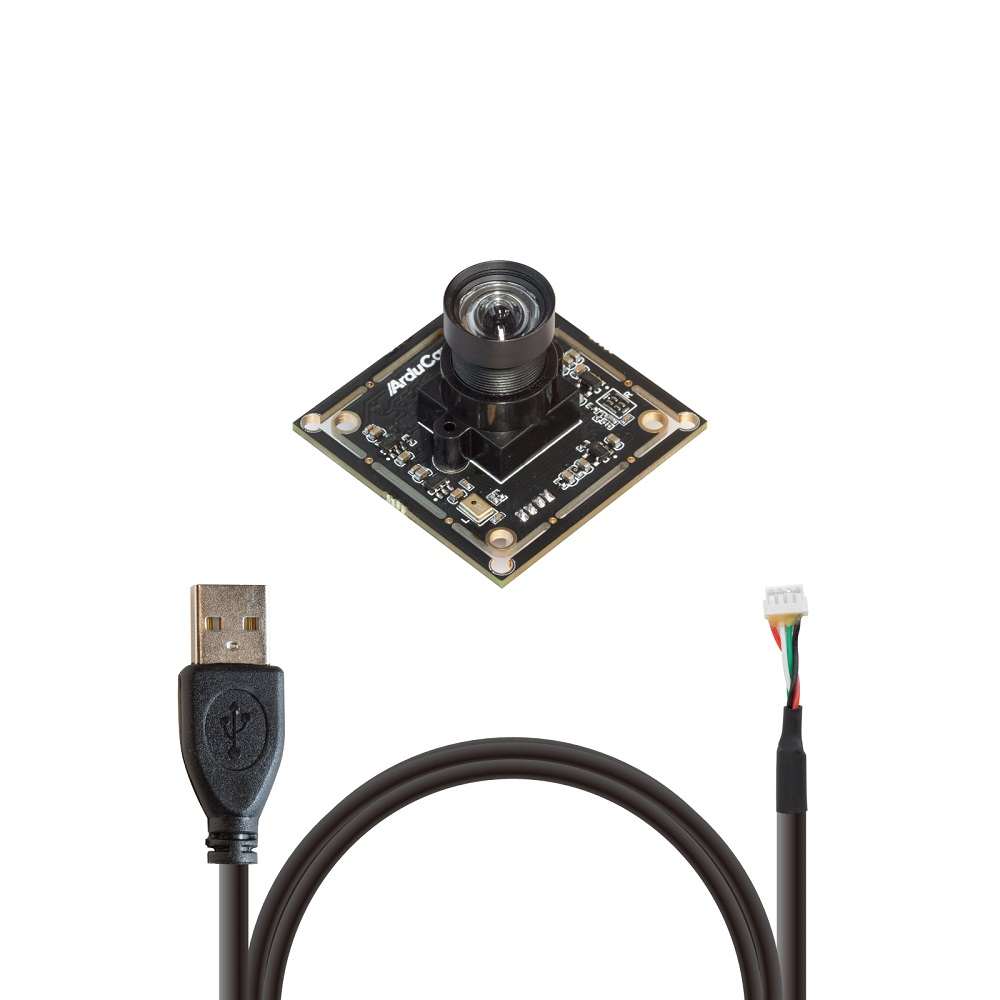

Package Includes:

1 x 1080P USB Camera Module with Lens

1 x 1m USB 2.0 Cable

1 x Quick Guide Start
