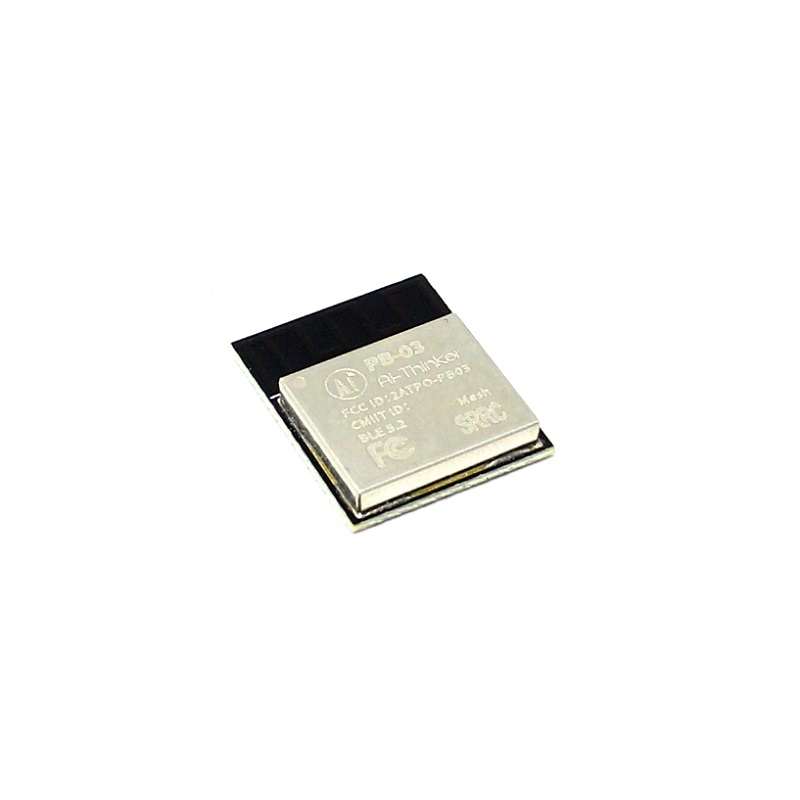

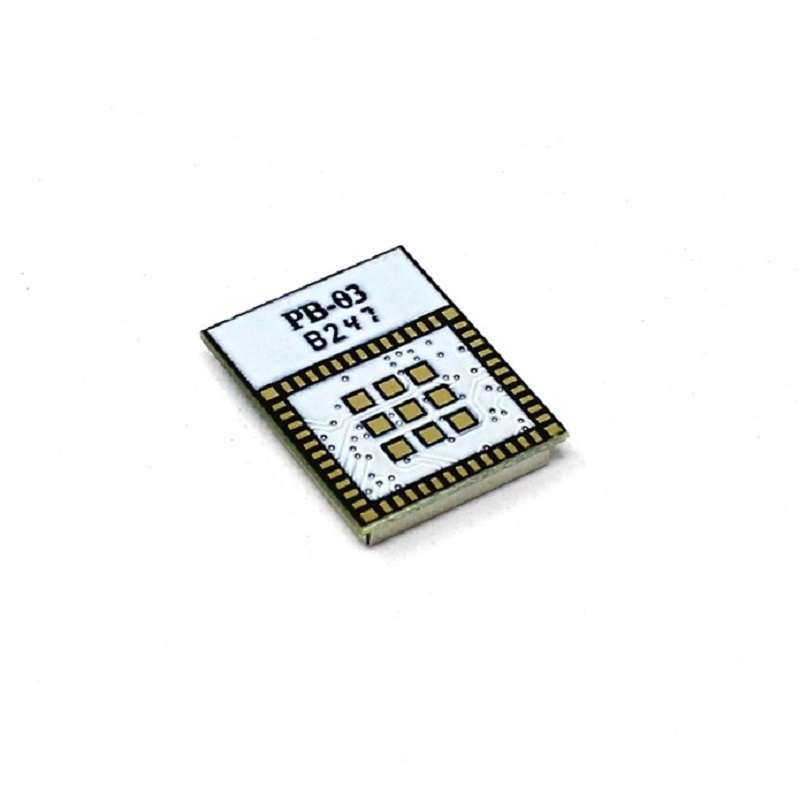

Ai-Thinker PB-03 BLE 5.2 Module

PB-03 can meet the power consumption requirements of most application scenarios, as the RF output power is adjustable, and other features can be fine-tuned. As such, the Bluetooth LE 5.2 module provides an optimal balance between the communication range, data rate, and power consumption

PB-03 is a BLE module developed by Shenzhen Ai-Thinker Technology Co, Ltd.

The core processor chip PHY6252(SSOP24)of this module is a BLE SoC with high integration and low power consumption, which is specially designed for various applications such as IoT, mobile devices wearable electronic devices and smart homes.

Features:

1. PB-03 module provide rich peripheral interfaces including UART, PWM, ADC, I2C, SPI, PDM, DMA and up to 19 IOs.
2. PB-03 module has many unique hardware security mechanisms Hardware encryption accelerator supports AES algorithm.
3. PB-03 module supports BLE with low power consumption: BLE 5.2 and BLE mesh Bluetooth rate
4. support: 125Kbps, 500Kbps, 1Mbps, 2Mbps. Support broadcast expansion multi-broadcast channel selection.
5. Application: Smart light control, mesh networking

Packages includes:

1 x  Ai-Thinker PB-03 BLE 5.2 Module
