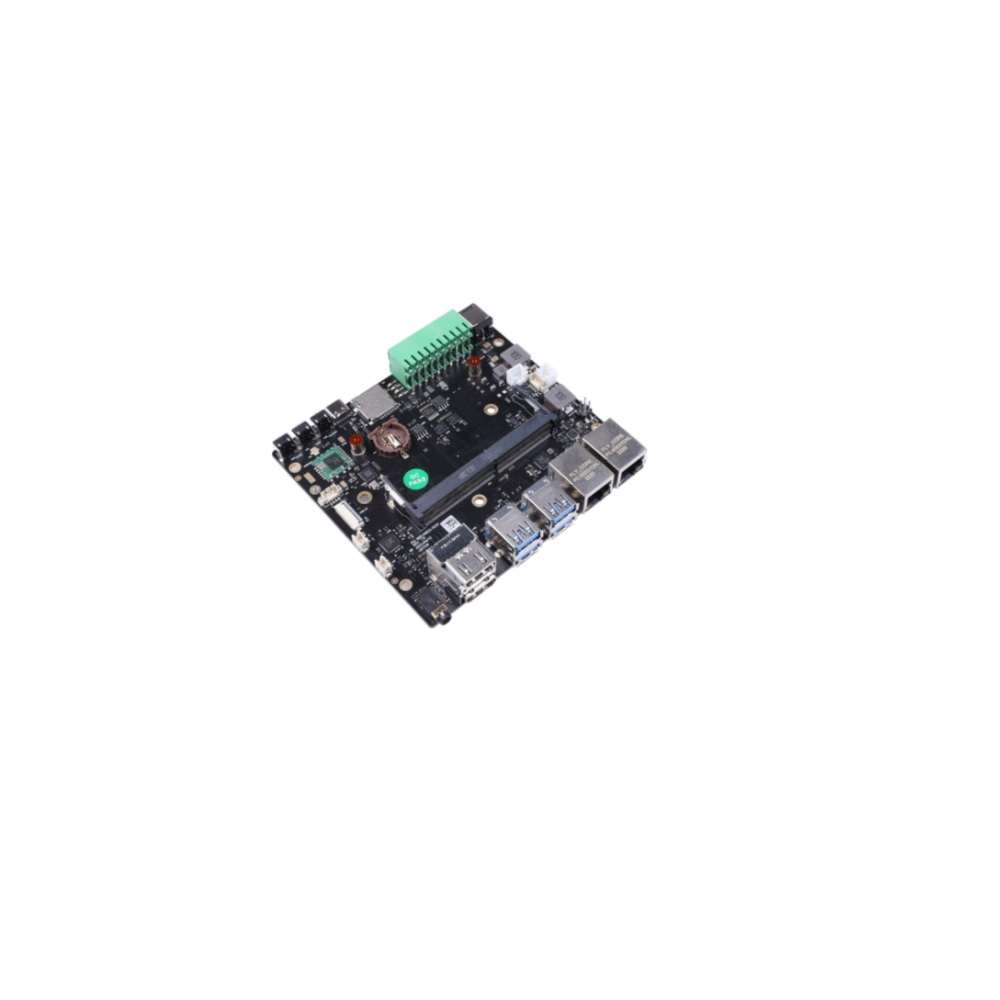

A205E Carrier Board RoboNepal.com Nepal Buy in Nepal

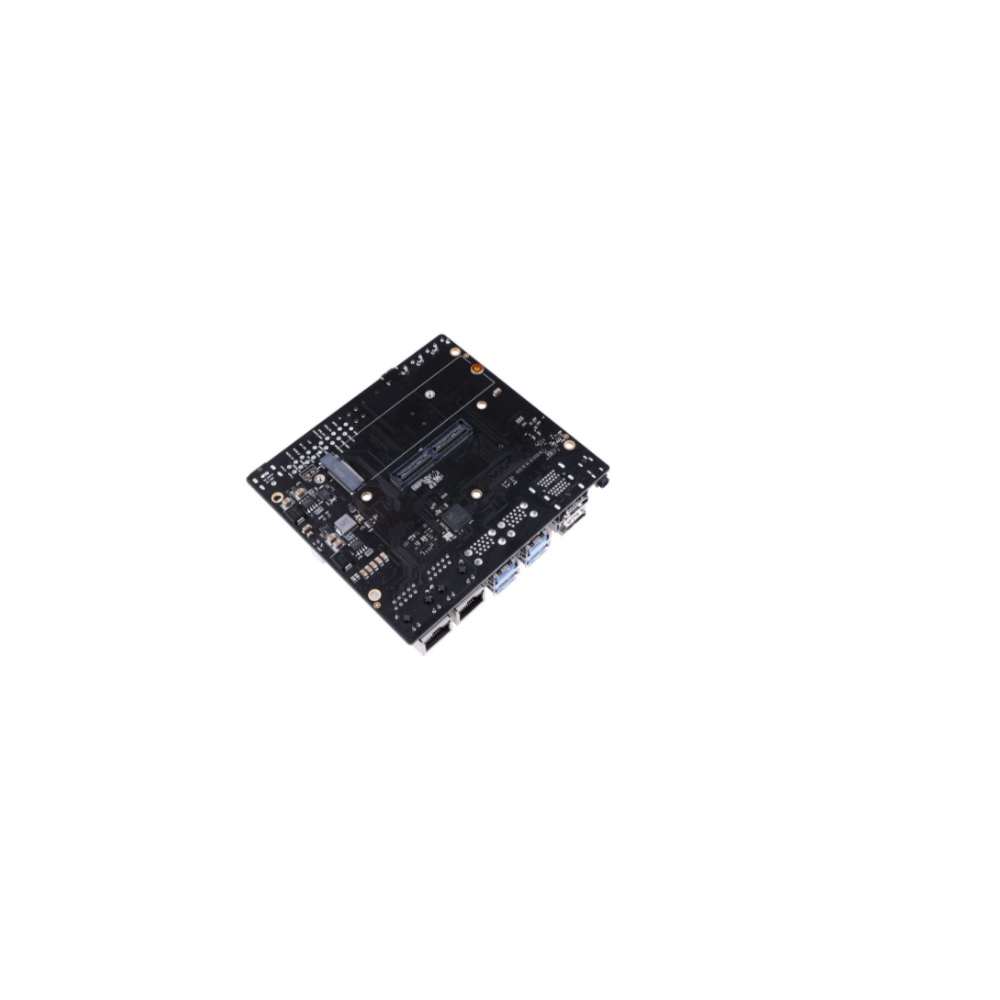

1529201-05 RoboNepal.com Nepal Buy in Nepal

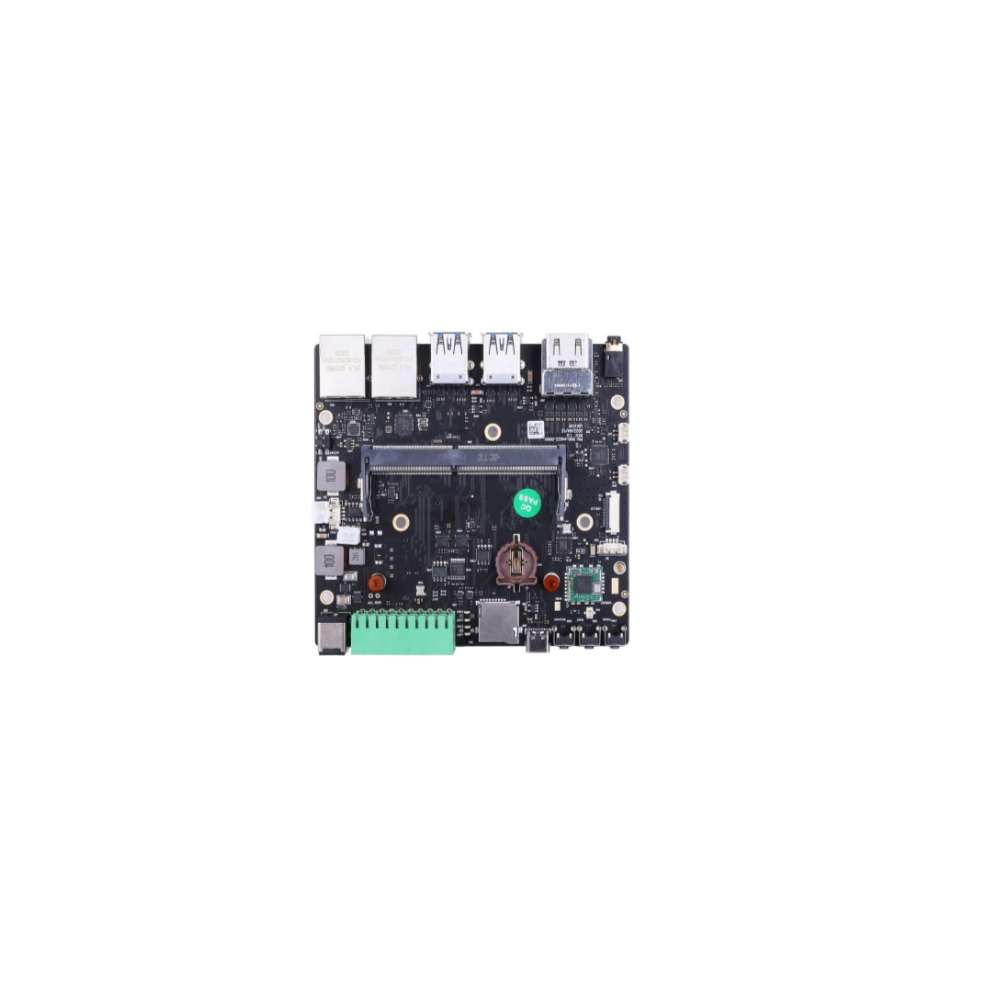

1529201-02 RoboNepal.com Nepal Buy in Nepal

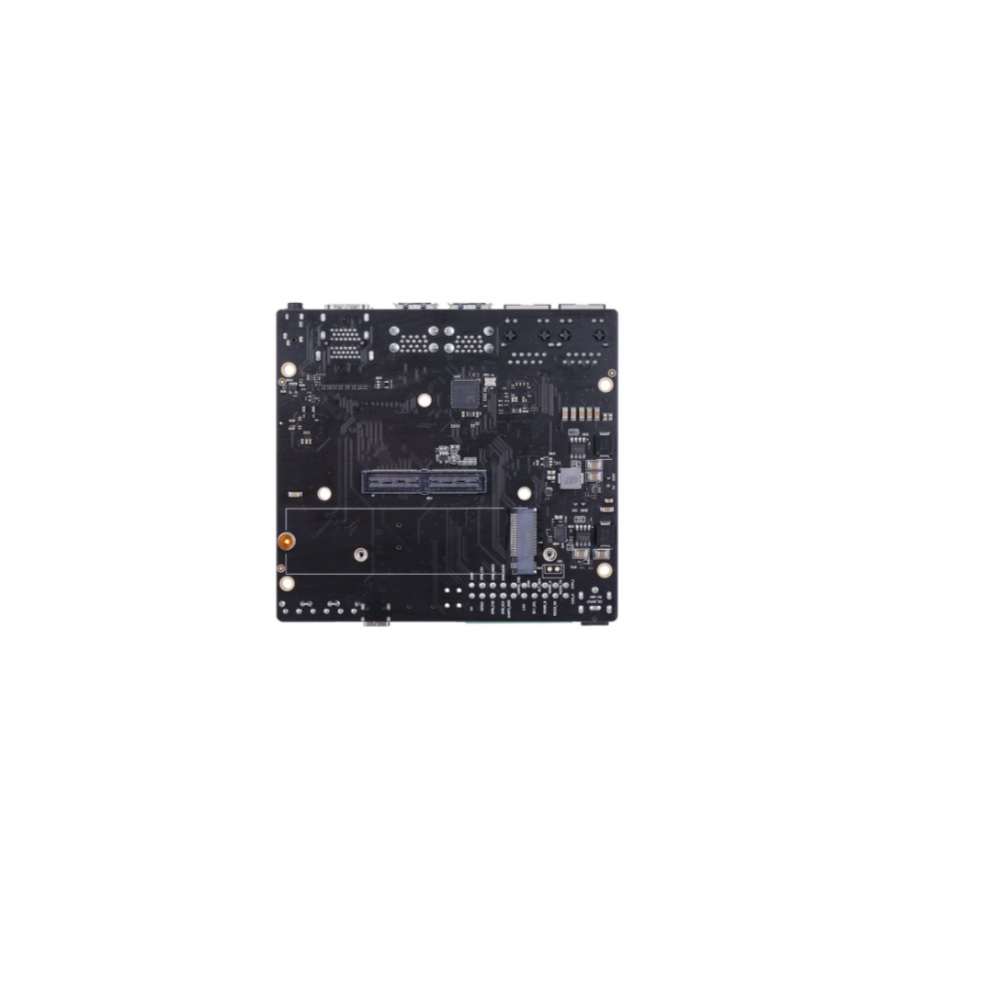

1529201-04 RoboNepal.com Nepal Buy in Nepal
Click to enlarge
A205E Carrier Board RoboNepal.com Nepal Buy in Nepal
1529201-05 RoboNepal.com Nepal Buy in Nepal
1529201-02 RoboNepal.com Nepal Buy in Nepal
1529201-04 RoboNepal.com Nepal Buy in Nepal

A205E Carrier Board for NVIDIA Jetson Nano/Xavier NX/TX2 NX module

  1. Compatible with NVIDIA Jetson Nano/Xavier NX/TX2 NX modules.
  2. Includes a carrier board with various connectivity options, such as HDMI, USB, Ethernet, and CSI/DSI interfaces.
  3. Supports power input options, including 5V DC and POE (Power over Ethernet).
  4. Features an onboard DC-DC converter for efficient power management.
  5. Equipped with a variety of I/O interfaces, including GPIO pins, UART, I2C, SPI, and CAN.
  6. Supports expansion with M.2 Key E and M.2 Key M slots for additional storage and connectivity options.

₨ 100.10

Out of stock

Out of stock

Compare
Add to wishlist
17 People watching this product now!

DATASHEET

DOWNLOAD

SPECIFICATION

DOWNLOAD

Network

2 x Gigabit Ethernet Connector (10/100/1000)
WiFi/Bluetooth module
Video Output

2 x HDMI 2.0 (TYPE A)
USB 3.0

4x USB 3.0 Type A
USB 2.0

1x USB 2.0 Type C; 1x USB 2.0 ZIF 20P 0.5mm pitch
IO

1x CAN
1 x RS485 ;1 x RS232;
1x UART
1x SPI Bus(+3.3V Level)
2x I2C Link(+3.3V I/O)
1x FAN(5V PWM);
Camera

1x MIPI connector (Compatible with MIPI CSI and GMSL)
Storage

MicroSD card slot
PCIe M.2

1x M.2 KEY M (NVMe SSD);
Audio

Audio Jack x1
Speaker

Speaker Connector x2
Power Input

9V-36V DC
Dimension

115mm x 105mm

This is A205E Carrier Board for NVIDIA Jetson Nano/Xavier NX/TX2 NX module.

Designing for industrial communication use, A205-E provides RS232 RS485, and CAN interfaces, high-speed PCIe M.2 Key M(SSD). It also provides a rich set of I/Os including a micoSD card slot, HDMI, dual Gigabit Ethernet, 4x USB 3, USB2.0 Type C, SPI, I2C, GPIO, and Fan for different application needs. The board supports operate in the temperature range from -25°C to 80°C.

With various I/O functions, A205-E is the ideal cost-effective choice for designing an IoT embedded system with an NVIDIA Jetson module in industrial automation, robotics, and intelligent video analytics applications across the industry of the smart city, manufacturing, and healthcare.

  • High-speed interfaces such as dual Gigabit Ethernet and four USB 3 enable connecting high-speed devices, and cameras. There is also a MIPI connector compatible with MIPI CSI and GMSL.
  • With M.2 Key M and an onboard microSD card slot, you can extend sufficient storage for local processing.
  • Additional isolated I/Os let the devices send a signal to the camera or PLC device to enable M2M communications.

    • Note: For more technical details go through Datasheet in the attachment section

    Note : Power adapter not included in kit.

    Features:

    1. Cost-effective industrial purpose carrier board: Industrial interfaces and rich I/Os will save costs for both prototyping and deployment.
    2. Work with advanced embedded system: fully support NVIDIA Jetson Nano/Xavier NX/TX2 NX module with up to 21 TOPs AI performances.
    3. Industrial connectivity: 1x CAN, 1x RS232, and 1x RS485
    4. Various set of I/Os: 4x USB Type A, 1xUSB2.0 Type C, 1xSPI, 2x I2C, 1x MicroSD card slot, M.2 Key M(SSD), 1xFan(5V PWM), 2xLED State.
    5. Certifications: CE, FCC, RoHS

    Package Includes:

    1 x A205E carrier board
