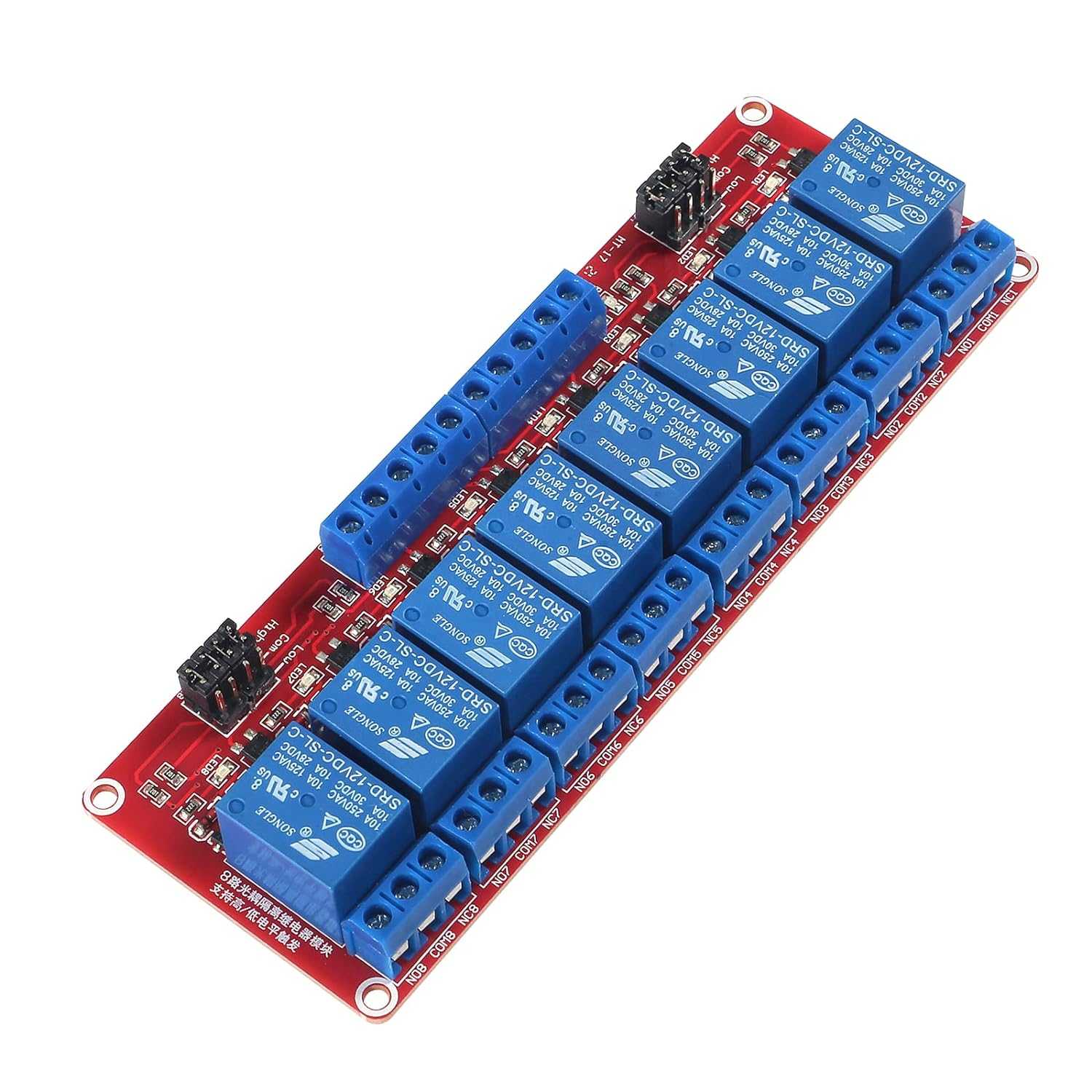

8 Channel Relay Module 12V High and Low Level Trigger Relay Module

Upgrade your electronic projects with  8 Channel Relay Module 12V High and Low Level Trigger Relay Module. Boasting genuine high-quality relays, it handles AC 250v/10a and DC 30v/10a effortlessly. The SMD Optocoupler Isolation ensures a seamless switch without affecting the signal circuit. Choose between “High” or “Low” Level Control with a user-friendly jumper cap, adapting to various scenarios.

The fault-tolerant design guarantees non-actuation even if the control line breaks. Enjoy hassle-free connectivity through the user-friendly interface design, making installation a breeze. Elevate your projects with the reliability and versatility of our 8 Channel Relay Module.

Features:

1. Genuine High-Quality Relays:
2. Handles AC 250v/10a and DC 30v/10a for versatile applications.
3. SMD Optocoupler Isolation:
4. Utilizes advanced technology for fully isolated power supply systems.
5. Ensures zero impact on the signal circuit during relay switching.
6. Offers the choice between high-level and low-level drive modes.
7. Low trigger current of 5mA enhances efficiency.
8. “High” or “Low” Level Controllable:
9. Jumper cap allows seamless adaptation to different control scenarios.
10. Fault-Tolerant Design:
11. Non-actuation even in the event of a broken control line for enhanced reliability.
12. User-Friendly Interface Design:
13. All interfaces connect directly through a convenient terminal block.
14. Simplifies installation for both professionals and DIY enthusiasts.

Specifications:

1. Operating Voltage: 12V DC
2. Maximum Load: AC: 250v/10a and DC: 30v/10a
3. Isolation: SMD Optocoupler Isolation with two fully isolated power supply systems
4. Drive Modes: High-level and Low-level drive mode
5. Trigger Current: 5mA
6. Control Options: “High” or “Low” level controllable with a jumper cap.
7. Fault Tolerance: Non-actuation in case of a broken control line.
8. Interface: User-friendly terminal block for easy connectivity.

Package Includes:

1 x 8 Channel Relay Module 12V High and Low-Level Trigger Relay Module
