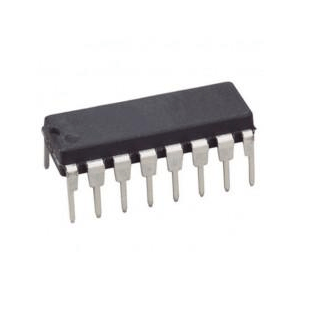

74HC157 Quad 2-Input Multiplexer IC (74157 IC)

The 74HC157 contains four data selectors/ multiplexers to select one of two data sources. All channels are controlled by the same address select (A/B) input, and strobe (G) input. A high level at the strobe terminal forces all outputs low.

Features

1. Wide operating voltage range of 2 V to 6 V
2. Outputs can drive up to 15 LSTTL loads
3. Low power consumption, 80-µA max ICC
4. Typical tpd = 11 ns
5. ±6-mA output drive at 5 V
6. Low input current of 1 µA max

Note:

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.

Package Includes:

1 x 74HC157 Quad 2-Input Multiplexer IC (74157 IC)
