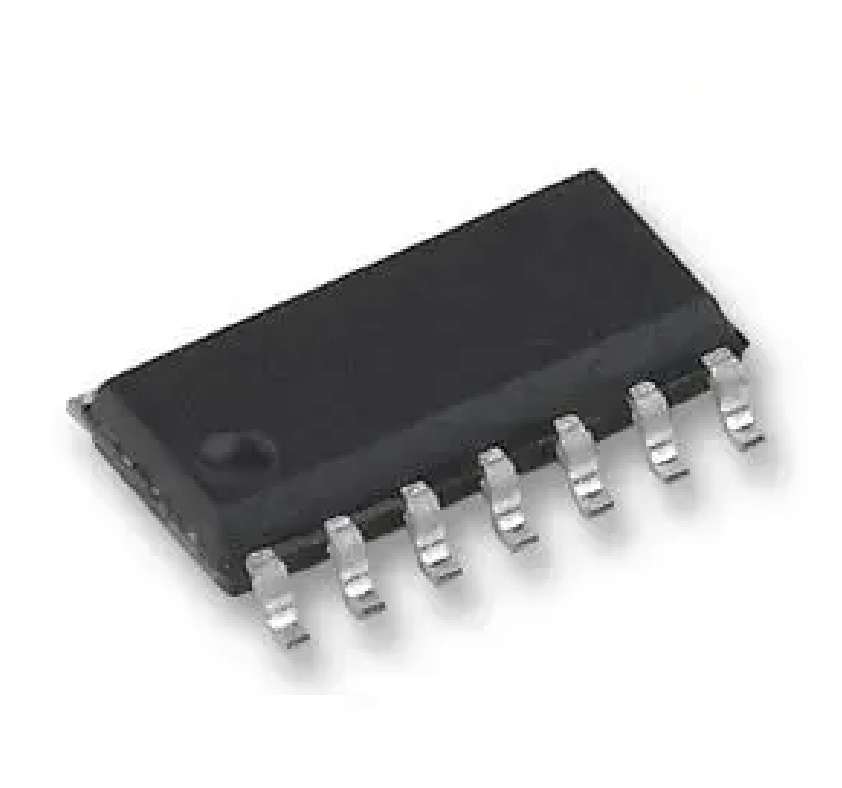

74HC02D,653-NEXPERIA-Logic IC, NOR Gate, Quad, 2 Inputs, 14 Pins, SOIC, 74HC02
- No. of Inputs: 2
- No. of Pins: 14Pins
- Supply Voltage: 2 to 6V
- Output Current: 5.2mA
- Operating Temperature: -40 to 125°C
- Logic IC Family: 74HC
₨ 52.00
Out of stock
Out of stock
12
People watching this product now!
| No. of Inputs |
2 |
|---|---|
| No. of Pins |
14 |
| Supply voltage(V) |
2 to 6 |
| Max Output Current (mA) |
5.2 |
| Operating Temperature (°C) |
-40 to 125 |
| Logic IC Family |
74HC |
| Shipping Weight | 0.003 kg |
| Shipping Dimensions | 5 × 4 × 1 cm |
The 74HC02D is a quad two-input NOR gate in a 14-pin SOIC package. This high-speed Si-gate CMOS device complies with JEDEC standard number 7A. The 74HC02D is pin-compatible with low-power Schottky TTL (LSTTL).
Features:
- Supply voltage ranges from 2V to 6V
- CMOS level input
- Features ESD protection
- Ambient temperature range from -40°C to 125°C
Package Includes:
1 x 74HC02D,653-NEXPERIA-Logic IC, NOR Gate, Quad, 2 Inputs, 14 Pins, SOIC, 74HC02
