| Charging voltage (V) |
21 |
|---|---|
| Single Cell overcharge protect voltage |
4.23 – 4.28V |
| Overcharge Protect Delay |
0.5 – 1.5S |
| Single Cell over-discharge protect voltage: |
2.72 – 2.88V |
| Single Cell over-discharge rotect recover voltage |
2.9 – 3.1V |
| Overcharge Protect Current |
60A |
| Over-discharge Protect Current: |
60A |
| Charging current |
25A |
| Discharging Current: |
25A |
| Length (mm): |
55 |
| Width (mm): |
19 |
| Height (mm): |
5 |
| Weight (g): |
4 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 6 × 6 × 1 cm |

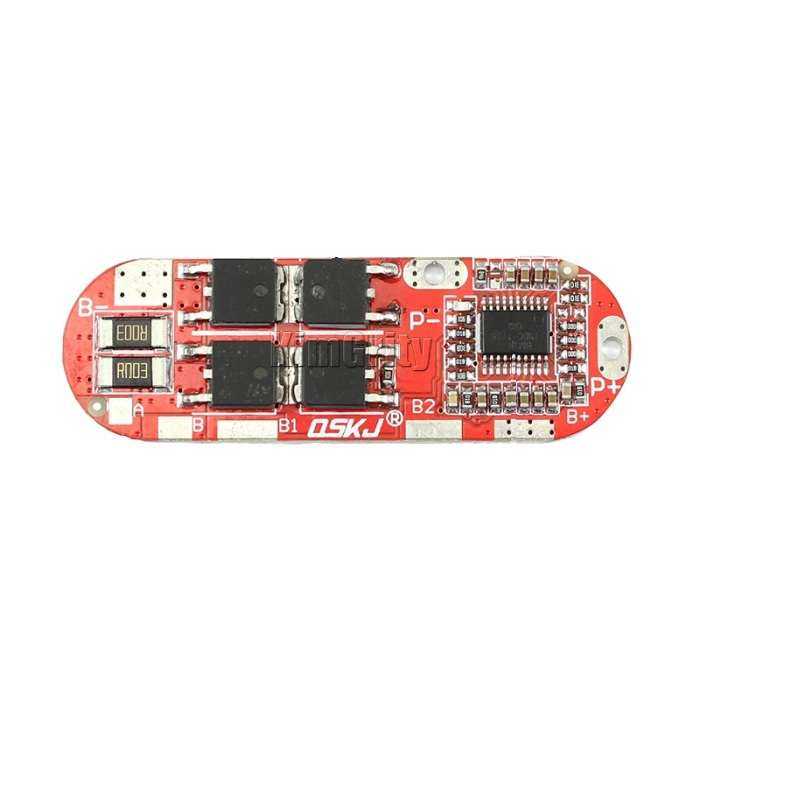

5S 40A 18650 Li-ion Lithium Battery Charger Protection Board
- Charging current: 25A
- Discharging Current: 25A
- Charging voltage: 21V
- Single Cell overcharge protect voltage: 4.23 – 4.28V
- Overcharge Protect Delay: 0.5 – 1.5S
- Single Cell over-discharge protect voltage: 2.72 – 2.88V
- Single Cell over-discharge protect recover voltage: 2.9 – 3.1V
- Overcharge/Discharge Protect Current: 60A
₨ 458.00
Out of stock
Out of stock
15
People watching this product now!
This Battery protection board can be used for high current applications as a lithium battery protection board, which is suitable for large current draining equipment up to 40A at pick such as electric tools, motors, electric drills, etc.
Connection Diagram:
Note: The Circuit/Connection Diagram is for illustration purpose, may differ from actual product
Package Includes:
1 x 5S 40A 18650 Li-ion Lithium Battery Charger Protection Board
