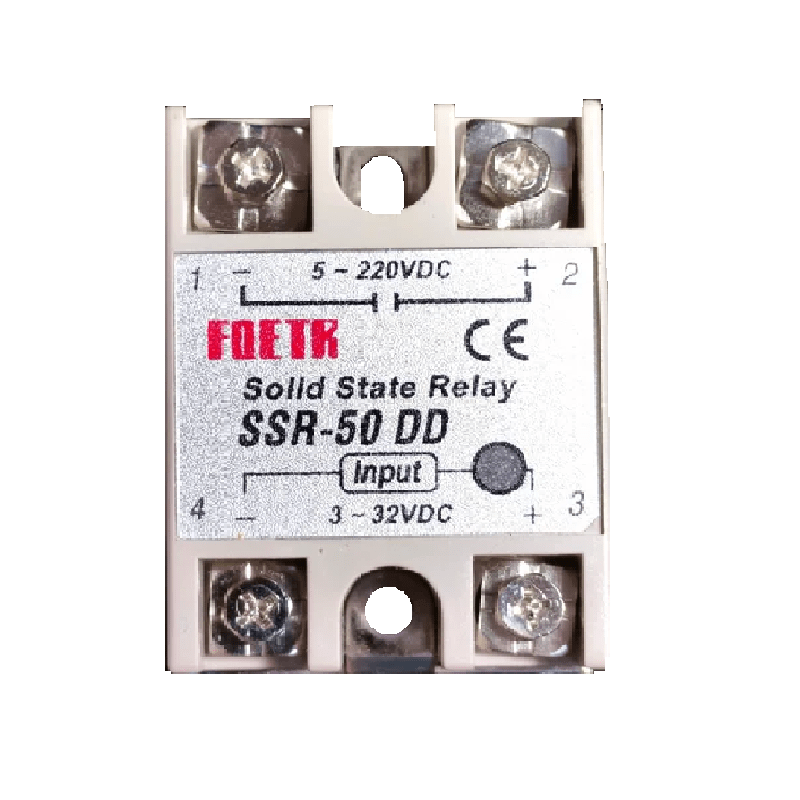

5-200V SSR-50DD Solid State Relay

  1. Rated Load Current: 50A
  2. Dielectric Strength: Over 2.5kVA / 1 min
  3. Trigger Voltage (VDC): 3-32VDC
  4. Switching Voltage (VDC): 5-200
  5. Operating Temperature Range (C): -20 to 85

₨ 1,084.00

Out of stock

Out of stock

Compare
Add to wishlist
15 People watching this product now!
Dielectric Strength

Over 2.5kVA / 1 min
Trigger Voltage (VDC)

3-32VDC
Switching Voltage (VDC)

5-200
Operating Temperature (°C)

-20 to 85 °C
Material:

ABS
Length (mm):

45.5
Width (mm):

62.5
Height (mm):

24
Weight (g):

93
Shipping Weight 0.105 kg
Shipping Dimensions 12 × 9 × 2 cm

The DC To DC SSR-50DD Solid State Relay Module (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low-voltage signal which is isolated optically from the load.

The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.

Features:

  1. Long service life and high reliability
  2. Reduced electromagnetic interference
  3. Highly reliable, compact size designed to offer users maximum simplicity

Package Includes:

1 x 5-200V SSR-50DD Solid State Relay
