| Resistance (Ω) |
220 |
|---|---|
| Tolerance (%): |
1 |
| Maximum Working Voltage (V) |
500 |
| Maximum Overload Voltage (V) |
1000 |
| Temperature Co-efficient |
?50 ppm/?C |
| Operating Temperature (°C) |
–40 to 150 |
| Mounting Type |
Through Hole |
| Length (mm): |
9 |
| Width (mm): |
3.2 |
| Weight (g): |
12 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 8 × 10 × 1 cm |

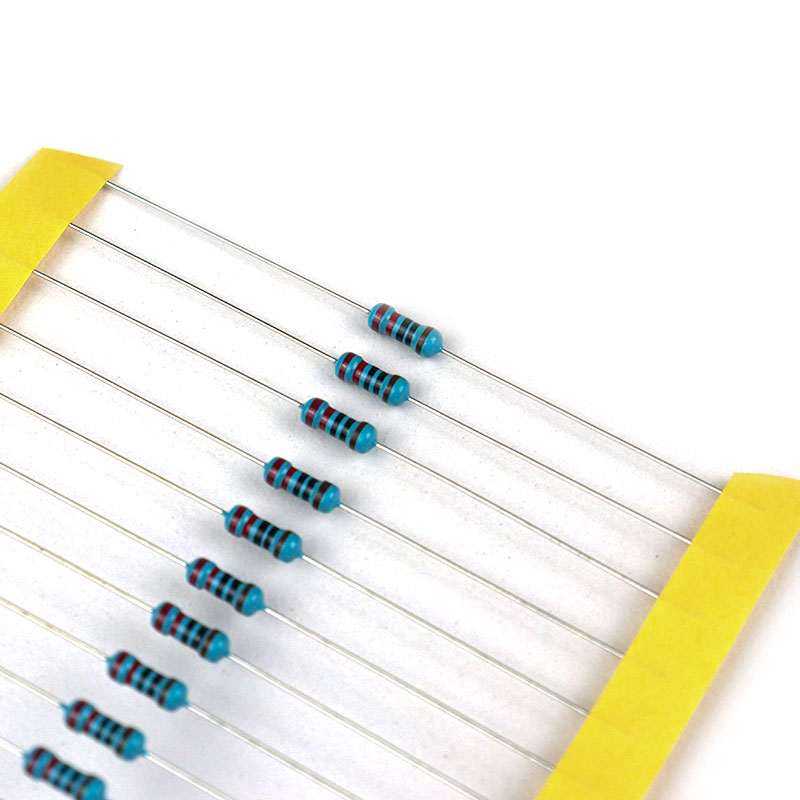

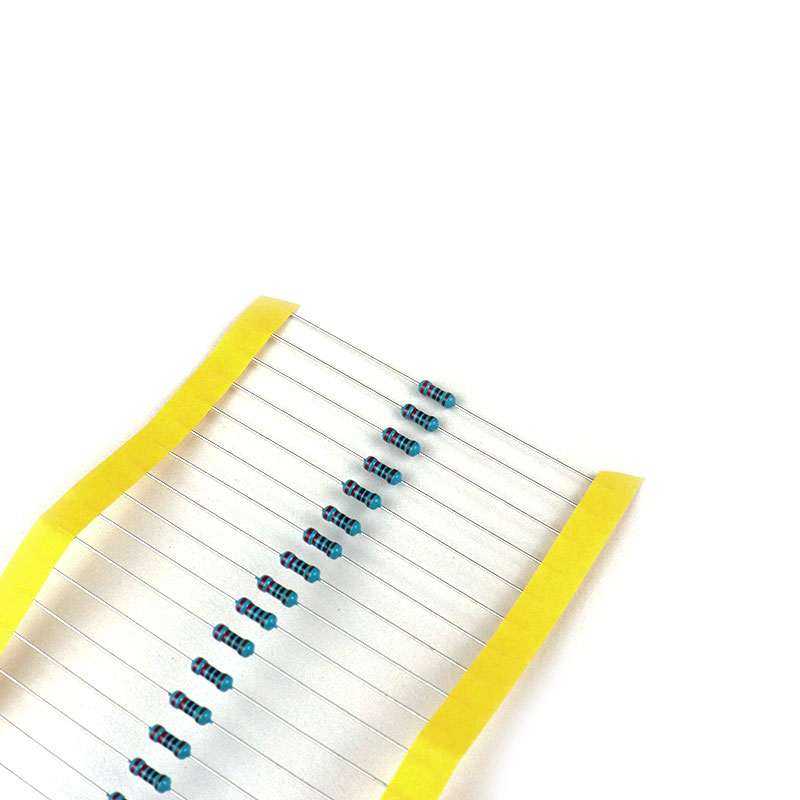

220 Ohm 1W Metal Film Resistor (Pack of 40)
- Resistance: 220 Ohm
- Max. Working Voltage: 500 V
- Tolerance: 1%
- Temperature Coefficient of Resistance: 50 PPM/°C
- Operating Temperature Range: -40ºC to 125ºC
₨ 118.00
Out of stock
Out of stock
19
People watching this product now!
We are presenting a 220 Ohm 1 W Metal Film Resistor for through-hole applications. These WMF series Metal Film Resistors are manufactured using the latest Magnetron Vacuum Sputtering System and are insulated with layers of lacquer ensuring a very stable resistive medium having a very low-temperature coefficient.
Package Includes:
40 x 220 Ohm 1W Metal Film Resistor.
