09 9764 70 04-SOCKET, 4WAY, FREE

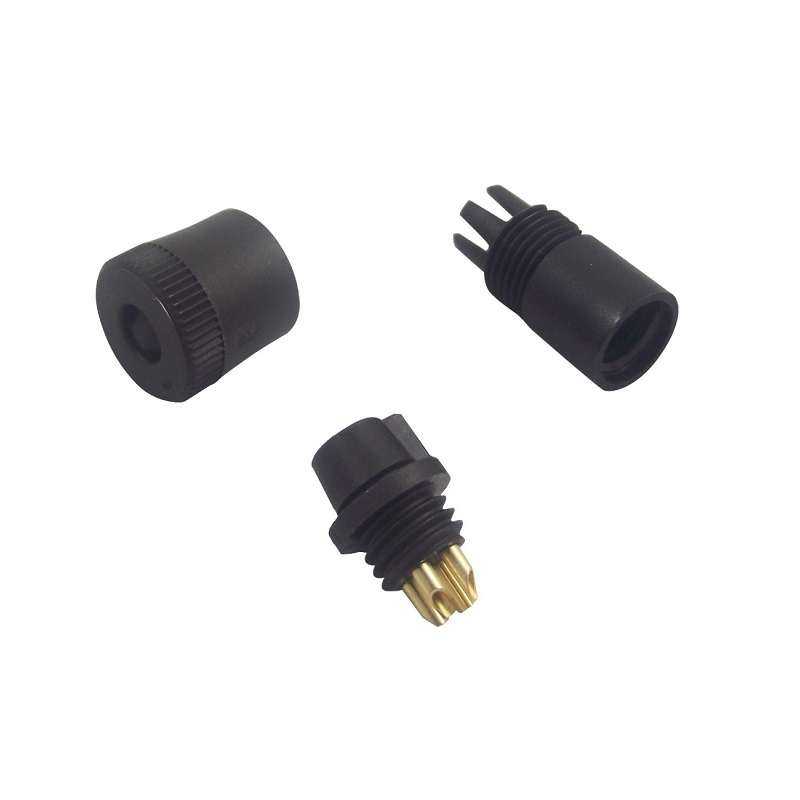

The 09 9764 70 04 from Binder is a 4-socket contact subminiature circular female cable connector with strain relief. This connector is easy to assemble and has snap-in locking facility.
Applications:

Industrial

Features:

1. Solder termination
2. Wire gauge size is 0.25mm² (24AWG)
3. Maximum cable outlet diameter is 4mm
4. IP40 degree of protection
5. Temperature range from -25°C to 70°C
6. Rated voltage of 60V
7. Rated current of 3A at 40°C
8. Bronze (CuSn) contacts with gold (Au) plating
9. Polyamide (PA) housing
10. Polyamide (PA) contact body

Specifications:

1. Product Range: 719 Series
2. Circular Connector Shell Style: Cable Mount Receptacle
3. No. of Contacts: 4Contacts
4. Circular Contact Type: Solder Socket
5. Connector Body Material: Nylon (Polyamide) Body
6. Connector Body Plating: –
7. Contact Material: Bronze
8. Contact Plating: Gold

Package Includes:

1 x 09 9764 70 04-SOCKET, 4WAY, FREE
