XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1

This XL4016E1 Step-Down Power Supply Module with voltage rating 4-40VDC to 1.25-36VDC.This module is rated for a maximum power of 200W. The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC.

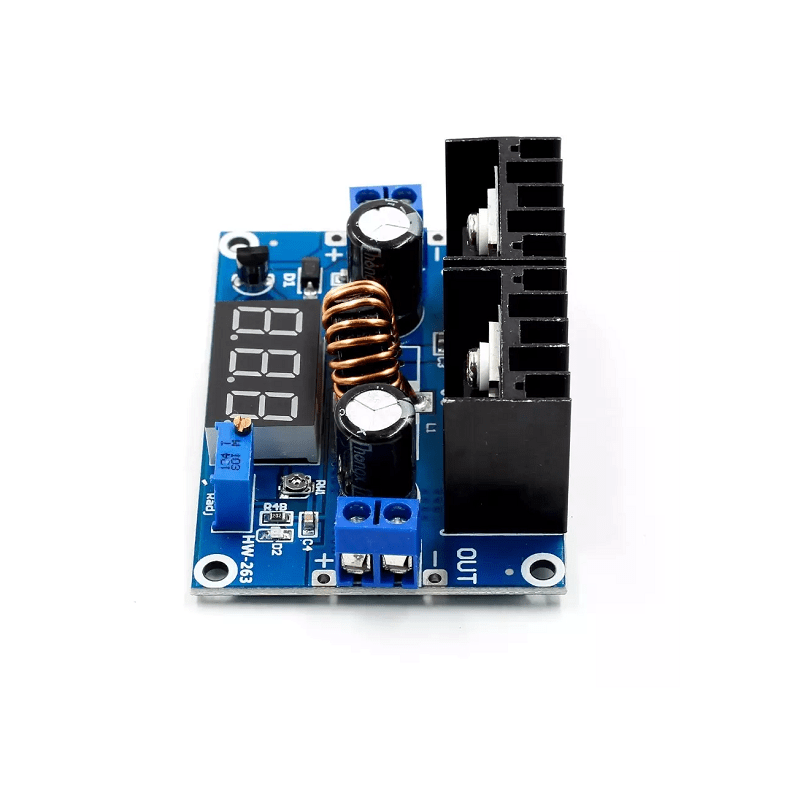

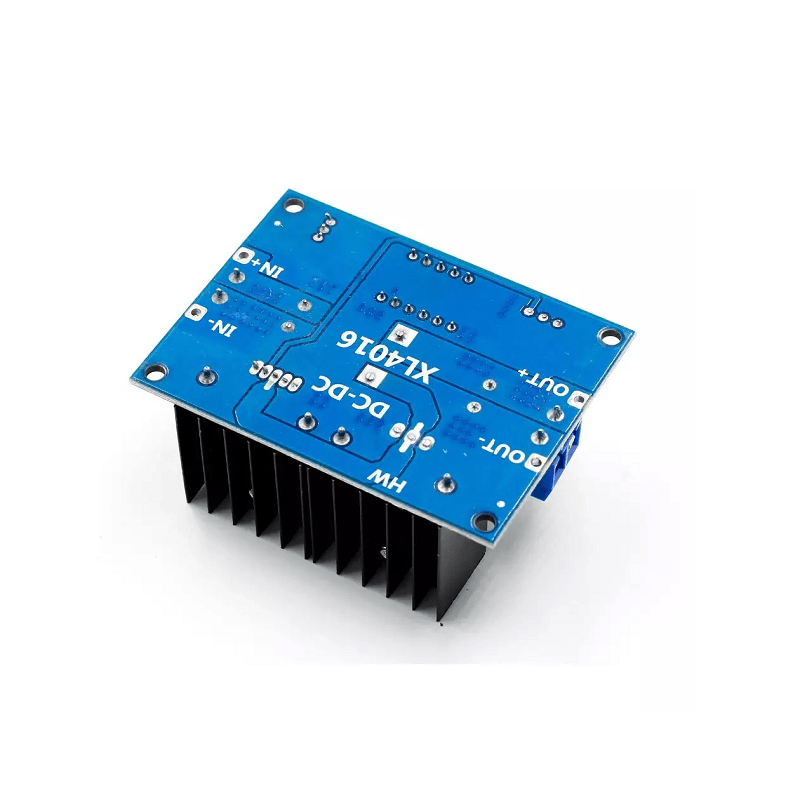

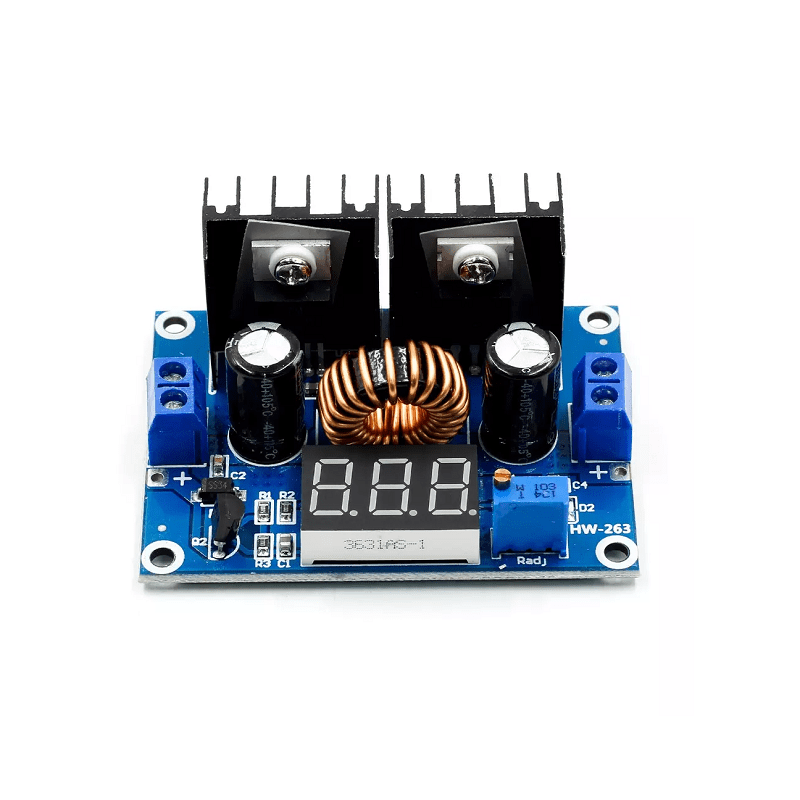

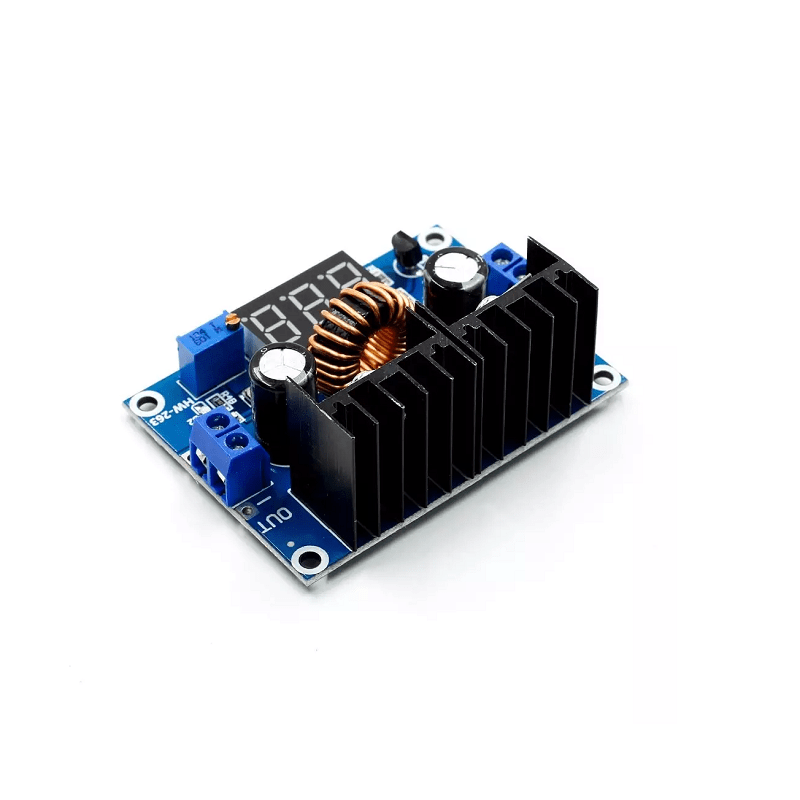

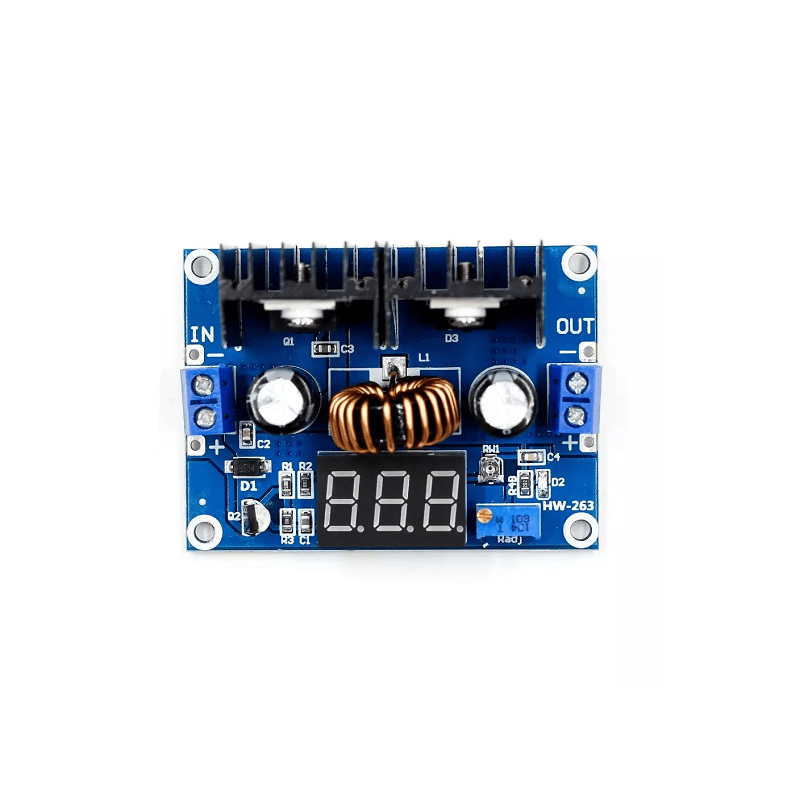

Note: This Product is available in two different variants (XH-M404 and HW-263) with the same working we will ship it randomly.

Features:

1. Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
2. Input: IN+ input positive IN- input negative
3. Output: OUT+ output positive OUT- output negative
4. Static power consumption is only about 6mA.
5. Connection: Welding, plus pin can be directly soldered after the PCB.
6. Short circuit protection: current limiting, thermal protection, self-recovery.
7. Non-isolated step-down (BUCK) switching regulator.
8. Short circuit protection: Current limiting, self-recovery
9. Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
10. Non-synchronous rectification

Package Includes:

1 x XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustable DC-DC Step Down Voltage Regulator DC XL4016E1
