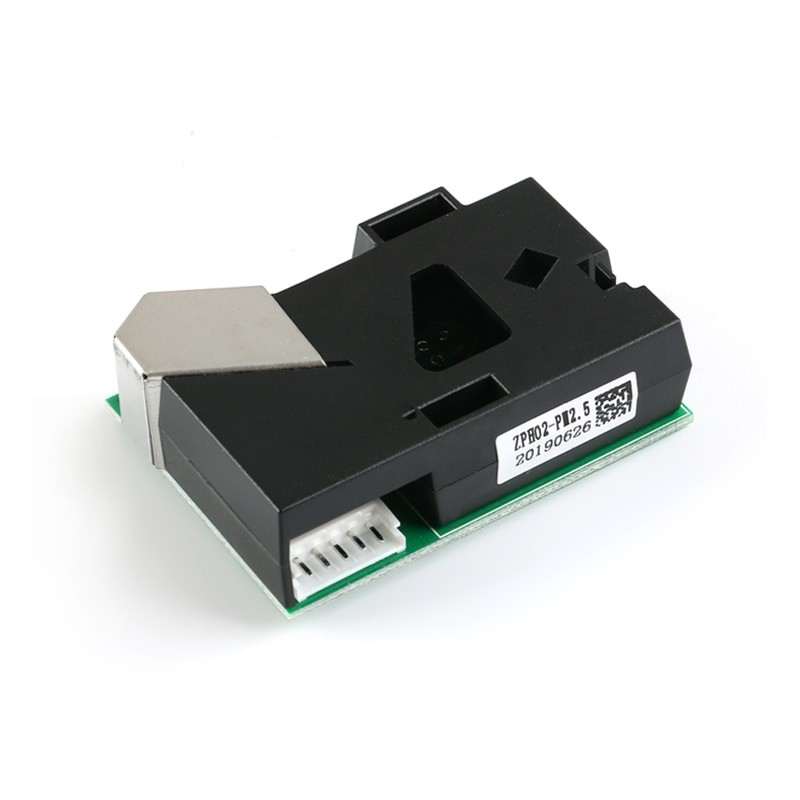

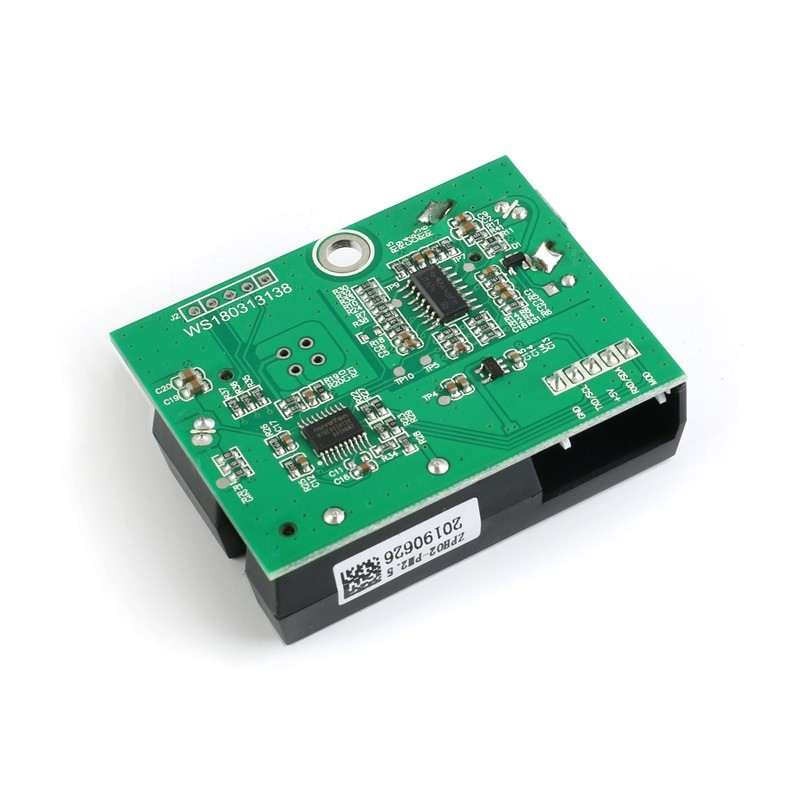

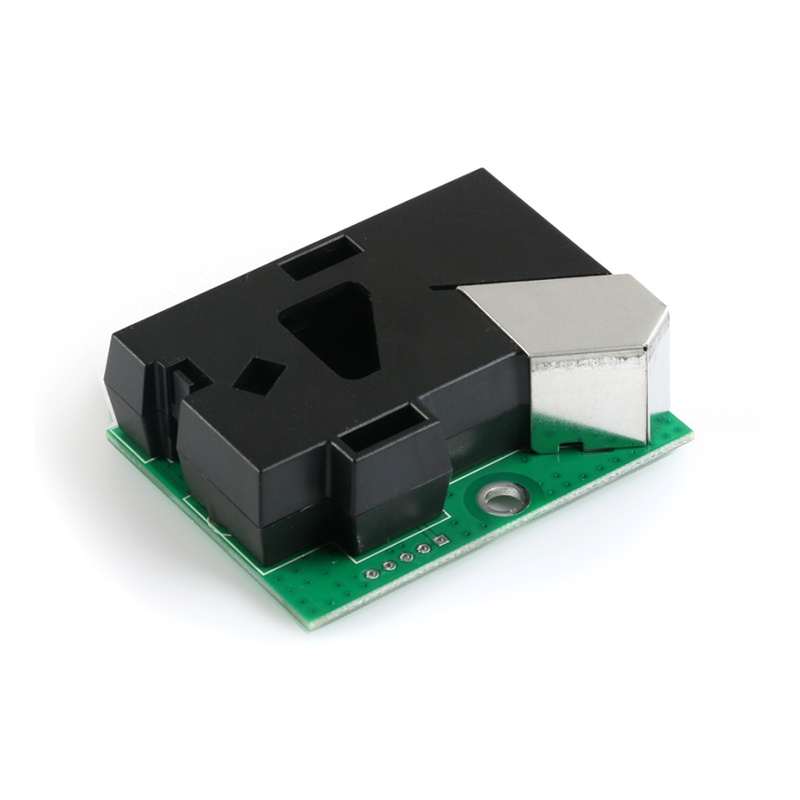

Winsen ZPH02 Particles Sensor
- Model: ZPH02
- Working voltage range: 5±0.2 V (DC)
- Physical interface: EH2.54-5P
- PM2.5 detection technology
₨ 1,144.00
Out of stock
Out of stock
20
People watching this product now!
| Model No. |
ZPH02 |
|---|---|
| Working Current |
≤90mA |
| Working Voltage Range |
5±0.2 V (DC) |
| Output Signal Voltage |
5±0.2 V |
| Detection Ability |
Smallest Particles 1 μm Diameter |
| Warm-Up Time |
≤1min(device warming-up time) |
| Physical Interface |
EH2.54-5P |
| Temperature Range |
0℃～50℃ |
| Humidity Range |
≤95%RH |
| Length (mm): |
59.5 |
| Width (mm): |
44.5 |
| Height (mm): |
20 |
| Weight (g): |
45 |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 6 × 4 × 2 cm |
ZPH02 Particles Sensor integrates infrared PM2.5 detection technology, using the particle counting principle to detect PM2.5 in the environment. It can detect the particles (diameter ≥1μm). Before delivery, the sensor has been aged, debugged, calibrated, and has a good consistency and high sensitivity.
Applications:
- Air purifier
- Air refresher
- Portable instrumentation
- HVAC system
- Air conditioner
- Smoke alarm system
Features:
- Good stability for a long time
- Interface output is multiple
- Easy to install and use
- High sensitivity
- Good consistency
Package Includes:
1 x ZPH02 Particles Sensor
