Winsen ZP07-MP503 Air Quality Detection Module
- Detection Gas volatile organic gases like formaldehyde, benzene, carbon monoxide, etc.
- Physical Interface with XH2.54-4P terminal sockets
- Output Data: 0-3 grade pollution signal
- Working Voltage 5.0±0.2V DC (No voltage reverse connect protection)
- Output: TTL level (200ohm protected resistance inside)
₨ 720.00
Out of stock
Out of stock
20
People watching this product now!
| Model Type |
ZP07 |
|---|---|
| Physical Interface |
XH2.54-4P terminal sockets |
| Detection Gas |
Formaldehyde, Benzene, Carbon Monoxide, Hydrogen, Alcohol, Ammonia |
| Output Data |
0-3 grade pollution signal |
| Working Voltage |
5.0±0.2V DC (No voltage reverse connect protection) |
| Output |
TTL level (200ohm protected resistance inside) |
| Operating Temperature |
0～50℃ |
| Operating Humidity |
≤95％RH |
| Working Current |
≤60mA |
| Length (mm): |
24 |
| Width (mm): |
20 |
| Height (mm): |
16 |
| Weight (g): |
20 |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 2 × 2 × 2 cm |

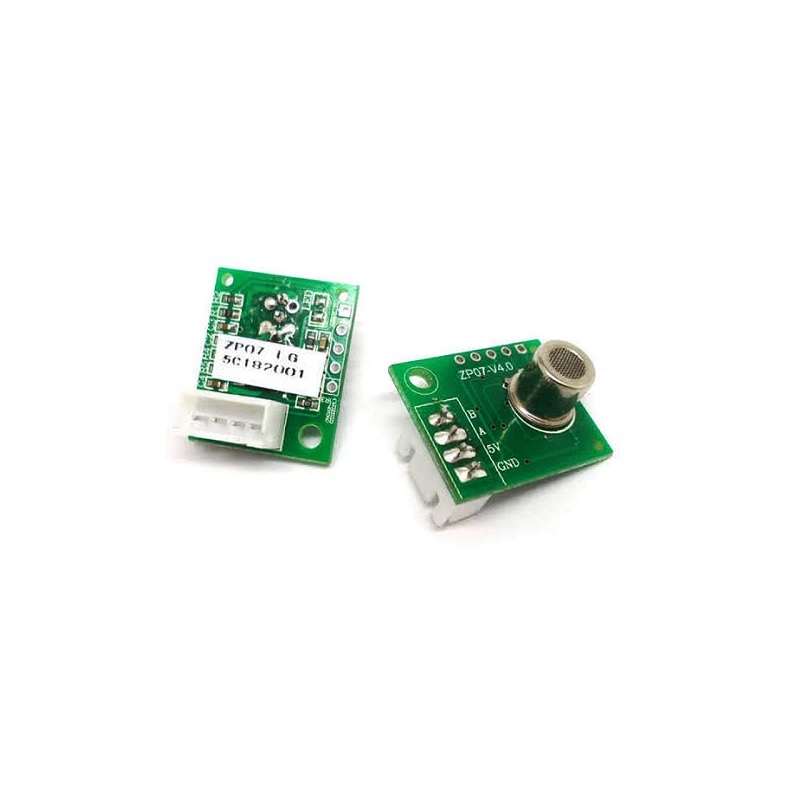

This is Winsen ZP07-MP503 Air Quality Detection Module.
Winsen Air Quality Detection Module is an original and brand new ZP07 air-quality module that adopts a flat surface semiconductor gas sensor. The module has good sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol, and smoke of cigarette, essence &, etc. The module has been aging, debugged, adjusted, and calibrated. So it has a good consistency and high sensitivity.
Applications:
Air cleaner, fresh-air system, intelligent integrated ceiling, air quality detector, ventilator, air-condition.
Features:
- High sensitivity to volatile organic gases
- Low power consumption
- 10 seconds to 3 minutes with auto-preheating function
- High cost-effective
Package Includes:
1 x Winsen Air Quality Detection Module
