DATASHEET

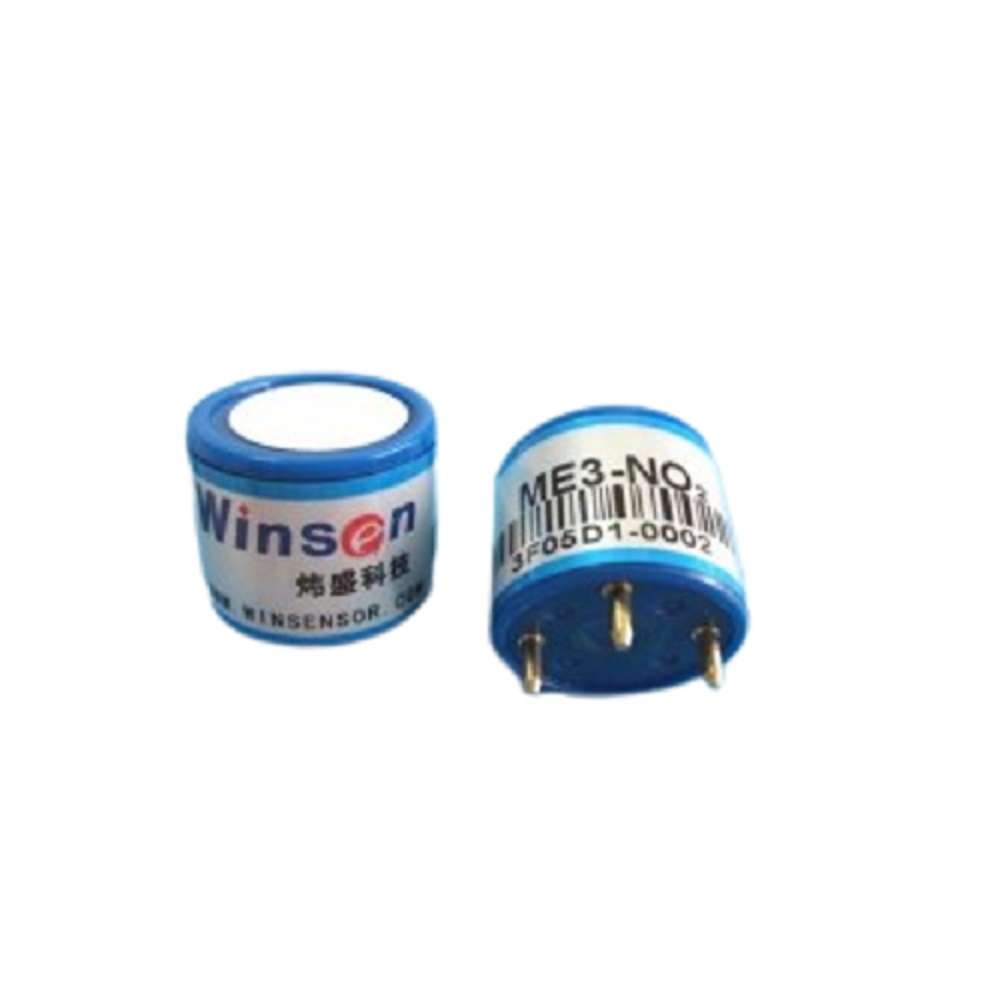

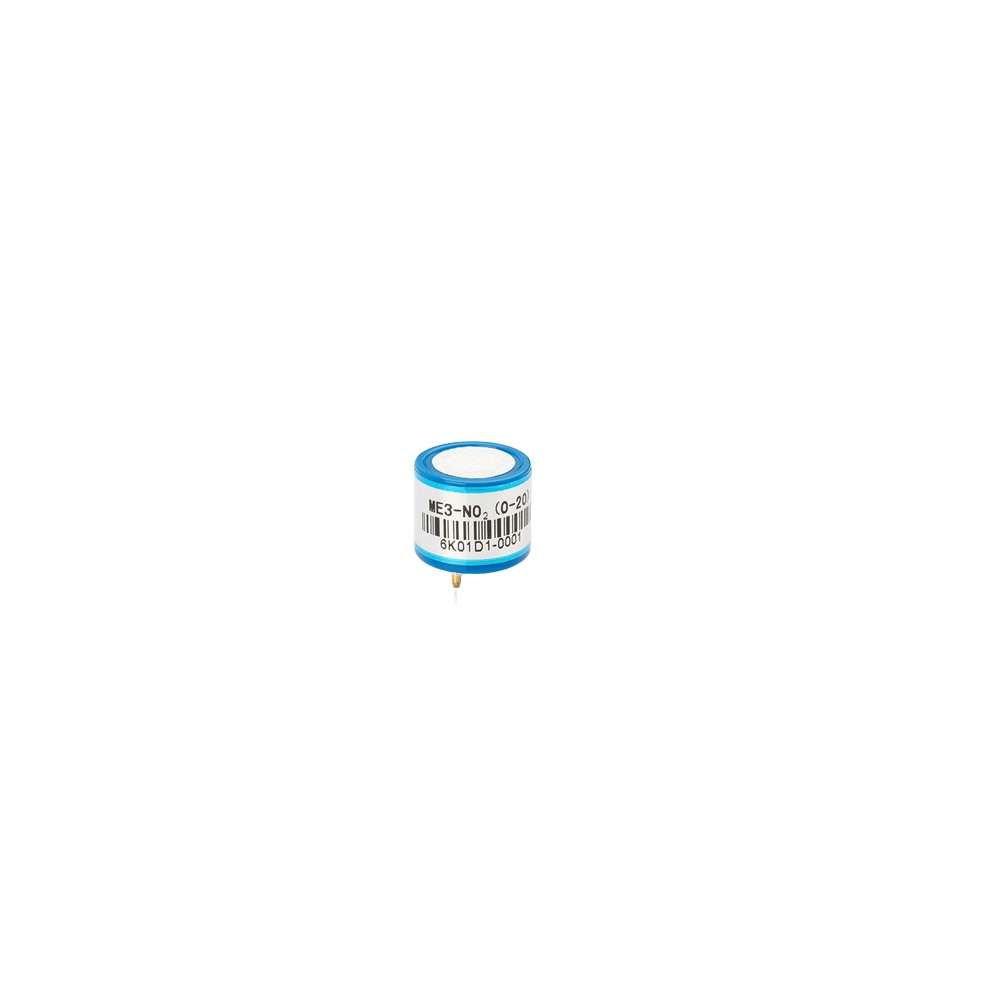

Winsen ME3-NO2 Gas Sensor
- Low consumption
- High precision
- High sensitivity
- Wide linear range
- Good anti-interference ability
- Excellent repeatability and stability
₨ 100.10
Out of stock
Out of stock
15
People watching this product now!
| Model |
ME3-NO2 |
|---|---|
| Detection Gas |
NO2 |
| Measure Range |
0～20ppm |
| Concentration Slope |
150ppm |
| Load Resistance |
10Ω |
| Repeatability |
＜2﹪output value |
| Resolution Ratio |
0.1ppm |
| Sensitivity(S) |
（0.78±0.42）µA/ppm |
| Response Time（T90） |
＜25S |
| Bias voltage |
0mV |
| Stability（／month） |
＜2﹪ |
| Output Linearity |
linear |
| Zero drift（-20℃～40℃） |
0.2ppm |
| Storage Temperature |
-20℃～50℃ |
| Storage Humidity |
15﹪～90﹪RH |
| Working Pressure Range |
90-110(kPa) |
| Anticipated using life |
2 years（In air） |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 7 × 5 × 3 cm |
Winsen Electronics, as a professional gas sensor manufacturer, produce NO2 gas sensor, Nitrogen Dioxide sensor for industrial use, using an electrochemical working principle.
ME3-NO2 electrochemical sensor detects gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in the electrochemical reaction of the target gas is in direct proportion with its concentration while following Faraday law, then the concentration of the gas could be getting by measuring the value of current.
Applications :
Widely used in industrial and environmental protection fields.
Features:
- Low consumption
- High precision
- High sensitivity
- Wide linear range
- Good anti-interference ability
- Excellent repeatability and stability
Package Includes:
1 x Winsen ME3-NO2 Gas Sensor
