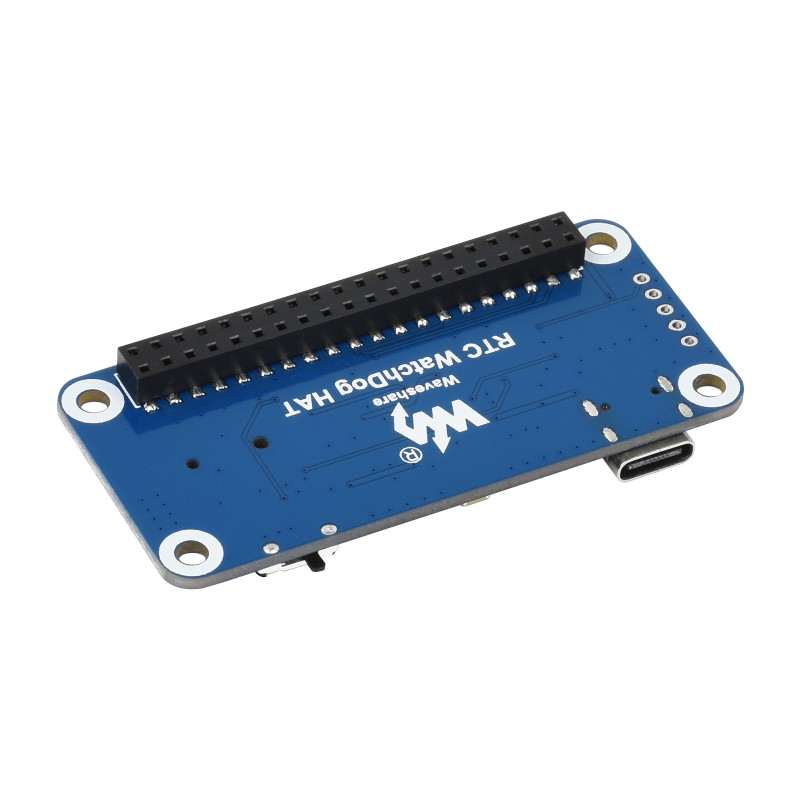

Waveshare RTC WatchDog HAT for Raspberry Pi, Auto Reset, High Precision RTC

  1. MAX705 monitoring circuit with auto-reset function
  2. Incorporates DS3231SN high precision RTC chip, with backup battery holder
  3. Reset pin selection for switching watchdog

₨ 100.10

Out of stock

Out of stock

Compare
Add to wishlist
18 People watching this product now!
Max705

Operating Voltage Range:1~5.5 V
Supply Current:150 µA
Reset Threshold Voltage:4.50~4.75 V
Watchdog Timeout Period:1~2.25 V
WDI Input Current: 50 µA
DS3231

Supply Voltage:2.3~5.5 V
Active Supply Current: (i)200 µA @3.3 V (ii)300 µA @5.5 V
Output Frequency:32.768 kHz
SCL Clock Frequency:100 kHz
Shipping Weight 0.02 kg
Shipping Dimensions 7.5 × 6 × 1 cm

This is a Waveshare RTC WatchDog HAT for Raspberry Pi, Auto Reset, High Precision RTC. It is an easy way to enable a global positioning function for your Raspberry Pi.

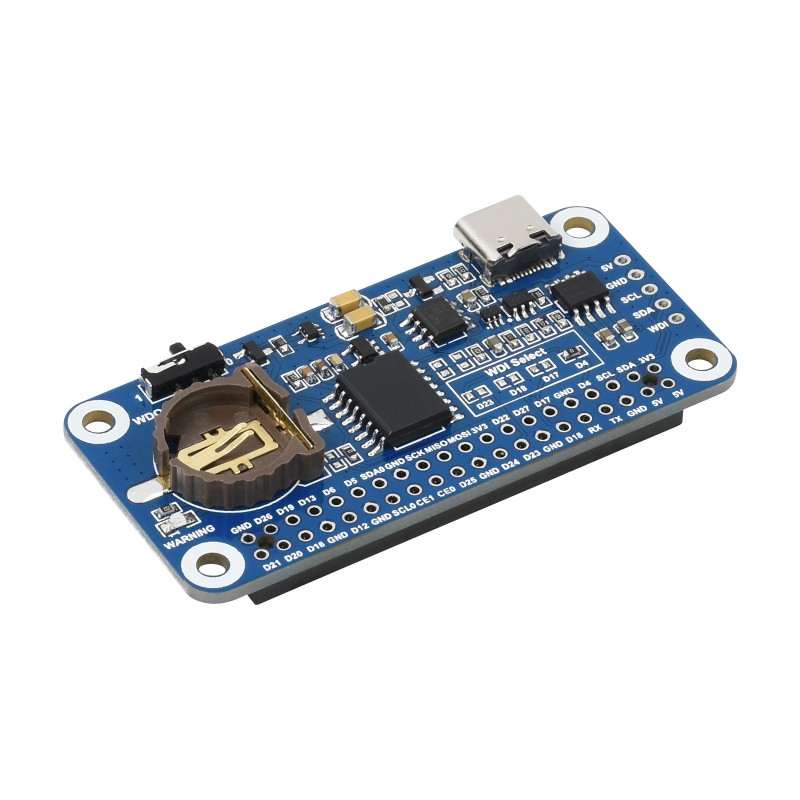

What’s on Board:

  1. USB Type-C power input
  2. MAX705 watchdog
  3. Watchdog output enable
    1: enabled
    0: disabled
  4. CR1220 RTC battery holder: RTC power supply supports CR1220 button cell
  5. Watchdog output warning: lights up if the watchdog is overflow
  6. Raspberry Pi 40PIN GPIO header
  7. RTC chip: DS3231 high precision RTC chip
  8. Watchdog reset pin selection
  9. Control interface for use with other host boards

Features :

  1. MAX705 monitoring circuit with auto-reset function
  2. Incorporates DS3231SN high precision RTC chip, with backup battery holder
  3. Reset pin selection for switching watchdog
  4. Indicator for watchdog output warning

Package Includes:

1 x Waveshare RTC WatchDog HAT for Raspberry Pi, Auto Reset, High Precision RTC
