Waveshare ESP32-H2 Microcontroller, 96MHz Processor, ESP32-H2-MINI-1-N4 Module

The ESP32-H2-DEV-KIT-N4 is a compact microcontroller development board with multiple peripheral interfaces. In terms of hardware, it adopts the ESP32-H2-MINI-1 module with a RISC-V 32-bit single-core processor. It supports up to 96MHz clock frequency with built-in 320KB ROM, 128KB HP SRAM, and 4KB LP SRAM. Onboard CH343 UART and CH334 USB HUB chips, it supports USB and UART development at the same time via a USB-C port. Compatible with the pinout of the ESP32-H2-DevKitM-1 development board, it is more convenient to use and expand a variety of peripheral modules. Comes with online examples and tutorials for the ESP-IDF development environment, so that you can easily and quickly get started and apply it to the product.

Features:

1. Adopts ESP32-H2-MINI-1 module with RISC-V 32-bit single-core processor, up to 96MHz main frequency.
2. Integrated 320 KB SRAM, 128 KB ROM, 4 KB LP memory, and 4MB Flash memory.
3. Integrated Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance.
4. Type-C connector, easier to use.

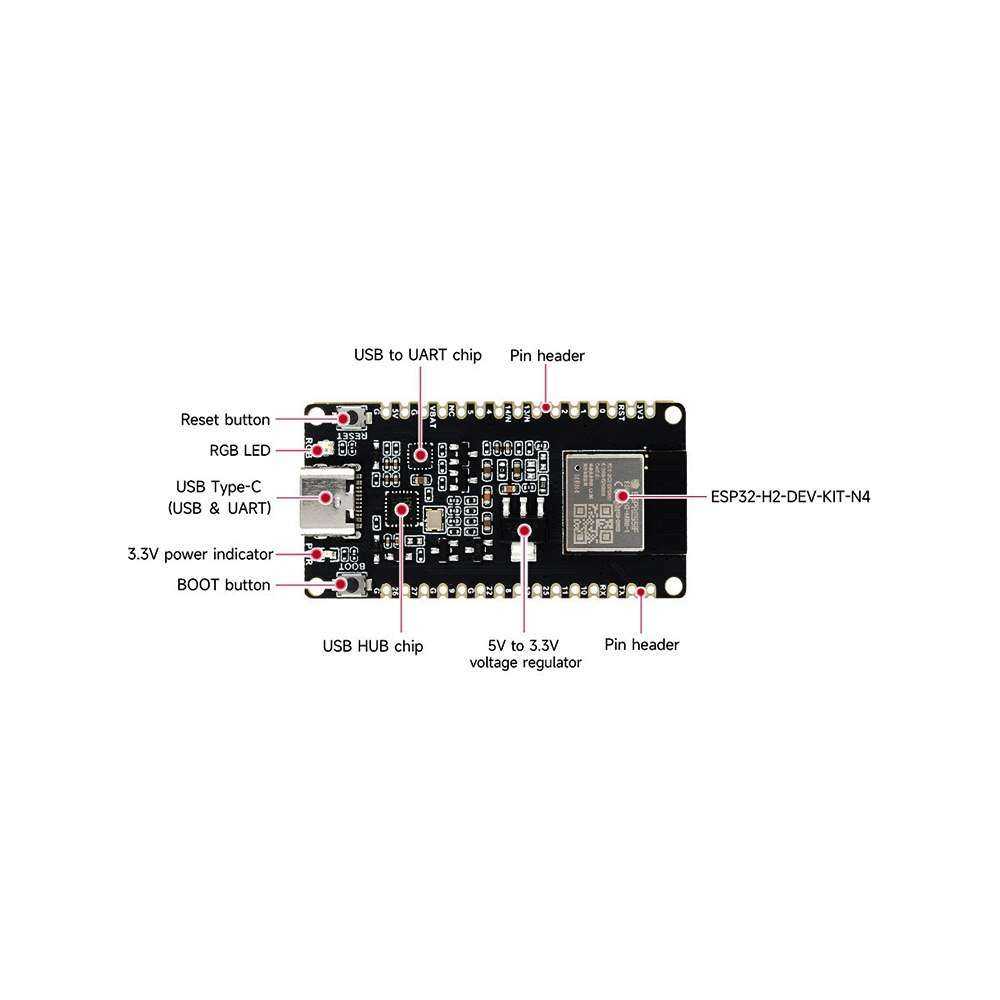

5. Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface.

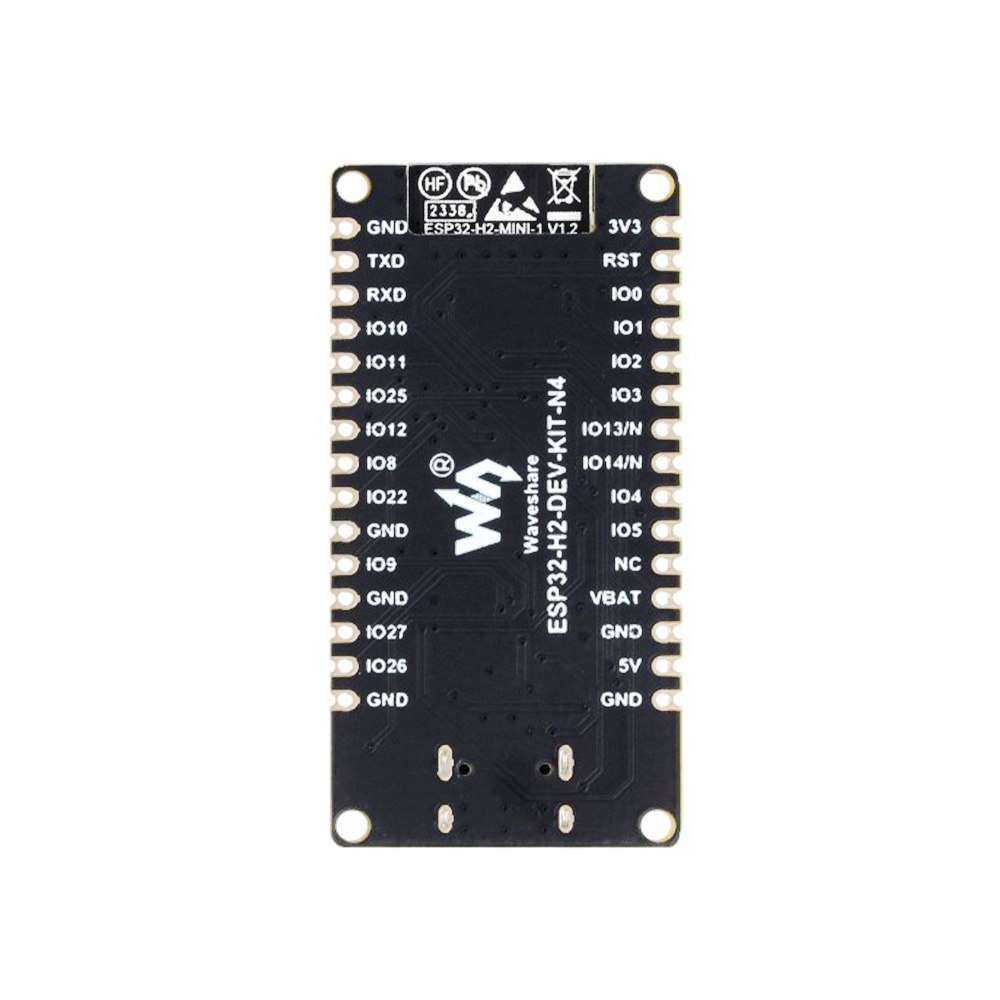

6. Rich peripheral interfaces, compatible with the pinout of the ESP32-H2-DevKitM-1 development board, offer strong compatibility and expandability.
7. The castellated module allows soldering directly to carrier boards.
8. Supports a variety of low-power operating states, adjustable communication distance, data rate, and power consumption balance, to meet the power requirements of various application scenarios.

Package Includes:

1 x Waveshare ESP32-H2 Microcontroller, 96MHz Processor, ESP32-H2-MINI-1-N4 Module

2 x 40PIN male pinheader(black)
