Display |
mipi dsi port (15pin 1.0mm FPC connector) |
---|---|
Input Power |
5V |
Storage |
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants |
Camera |
mipi csi-2 port × 2 (15pin 1.0mm fpc connector) |
USB |
USB 3.2 gen1 × 2 |
Fan header |
5V/12V (12V by default), allows speed adjustment and measurement |
RTC |
Real-time clock with battery socket and ability to wake Compute Module 4 |
Pin header |
Raspberry Pi 40PIN GPIO header |
Length (mm): |
115 |
Width (mm): |
105 |
Height (mm): |
29 |
Weight (g): |
221 |
Shipping Weight | 0.318 kg |
Shipping Dimensions | 18 × 13 × 5 cm |

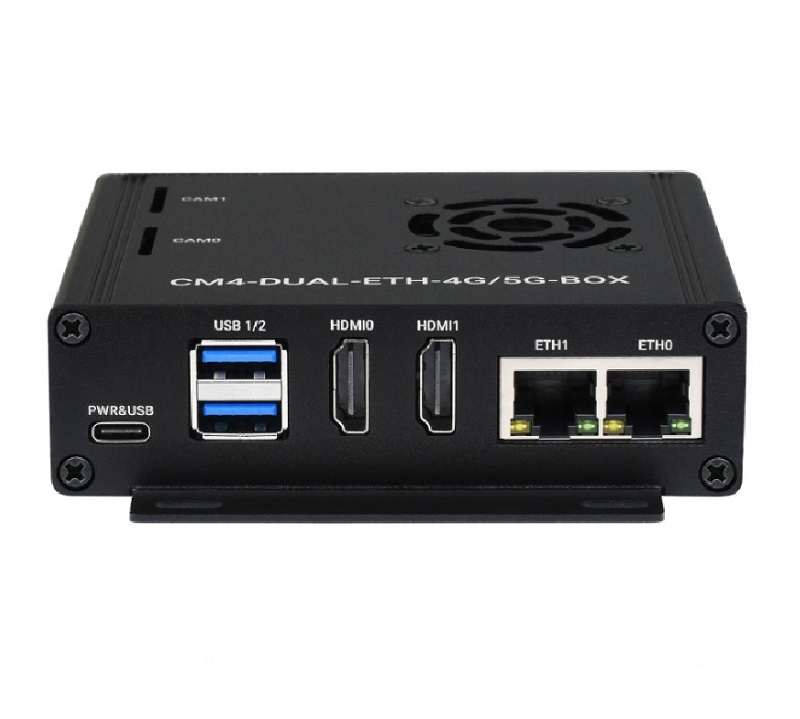

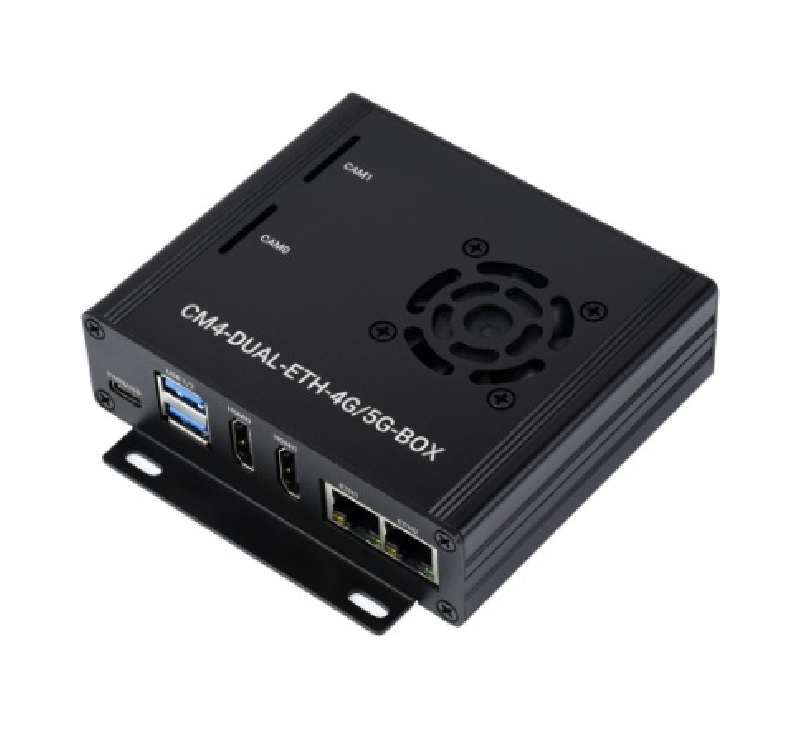

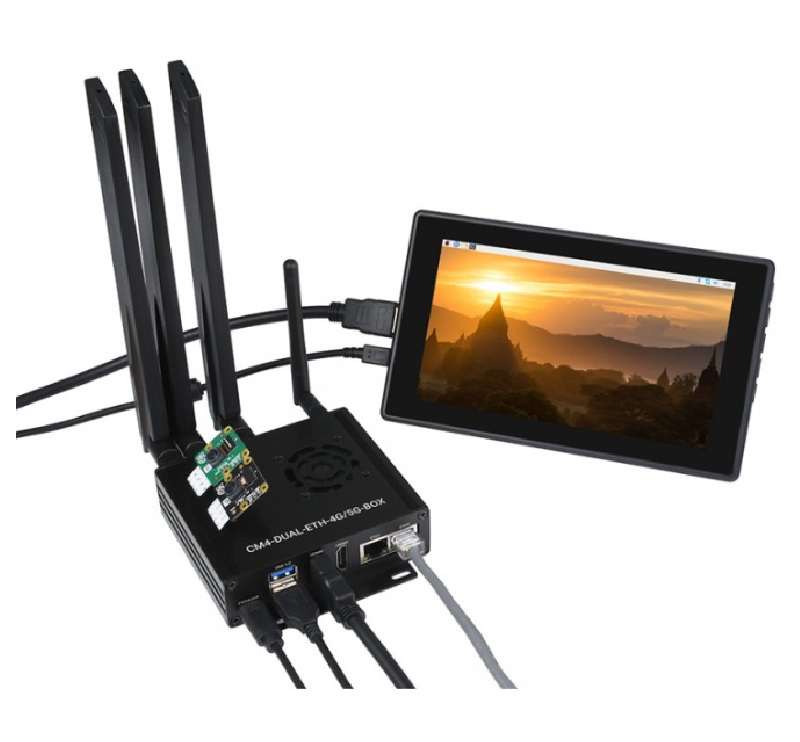

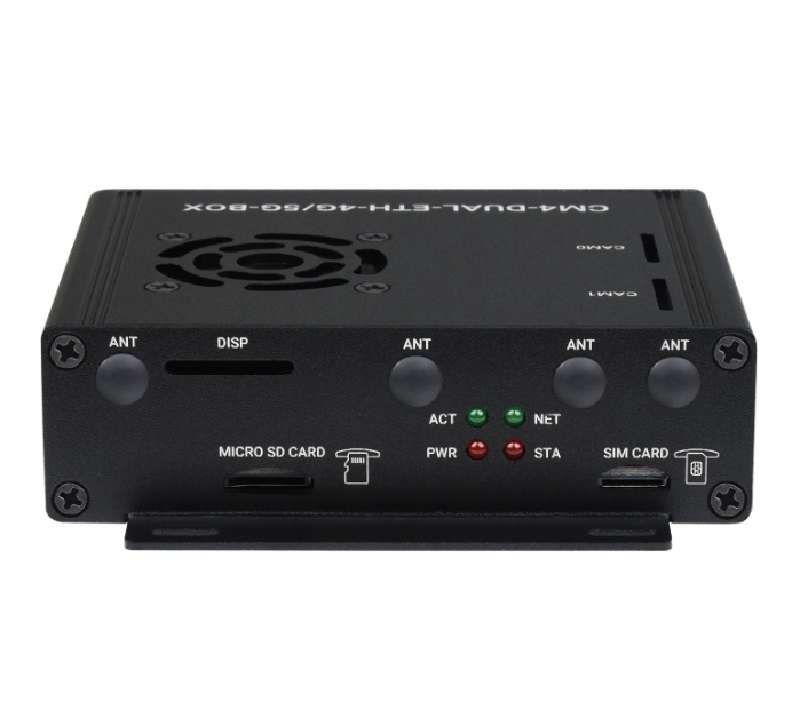

Waveshare Dual Gigabit Ethernet 5G/4G Mini-Computer Based on Raspberry Pi Compute Module 4 (NOT Included), Metal Case, with Cooling Fan (No Power Adapter)
- Display: MIPI DSI port (15pin 1.0mm FPC connector)
- CM4 Socket: suitable for all variants of Compute Module 4
- USB: USB 3.2 Gen1
- Power Input: 5V
₨ 100.10
Out of stock
Out of stock
The Waveshare Dual Gigabit Ethernet Mini-Computer is a compact, high-performance system built around the Raspberry Pi Compute Module 4 (not included). Encased in a robust metal case with an integrated cooling fan, it delivers excellent thermal management. Boasting dual Gigabit Ethernet ports, this device is ideal for networking applications. While it doesn’t include a power adapter, it provides a versatile and efficient solution for users looking to harness the Compute Module 4’s power for various computing and connectivity needs.
Features:
- Built for Raspberry Pi Compute Module 4 (not included)
- Robust metal case with cooling fan
- Dual Gigabit Ethernet for high-speed networking
- Versatile for computing and connectivity
- No power adapter included
- Compact and powerful solution.
Package Includes:
1 x Waveshare Dual Gigabit Ethernet 5G/4G Mini-Computer Based on Raspberry Pi Compute Module 4 (NOT Included), Metal Case, with Cooling Fan (No Power Adapter)
