| Length (mm): |
133 |
|---|---|
| Width (mm): |
76 |
| Height (mm): |
3(mm) |
| Model |
50H-800480 Series |
| Size |
5 Inch |
| Viewing Angle |
160 Deg |
| Resolution |
800 (RGB) × 480 Pixels |
| Touch Screen Dimensions (mm) |
127.7 (H) × 87.45 (V) × 4.9 (D) |
| Display Dimensions (mm) |
120.7 (H) × 75.8 (V) × 2.8 (D) |
| Display Area (mm) |
108.0 (W) × 64.8 (H) |
| IPS Color Gamut |
50% NTSC |
| Brightness |
300 cd/m² |
| Backlight Adjustment |
Software |
| Contrast |
1000:1 |
| Color Depth |
16.7M |
| Refresh Rate |
60 Hz |
| Driver Port |
DSI Port |
| Shipping Weight | 0.139 kg |
| Shipping Dimensions | 16 × 11 × 3 cm |

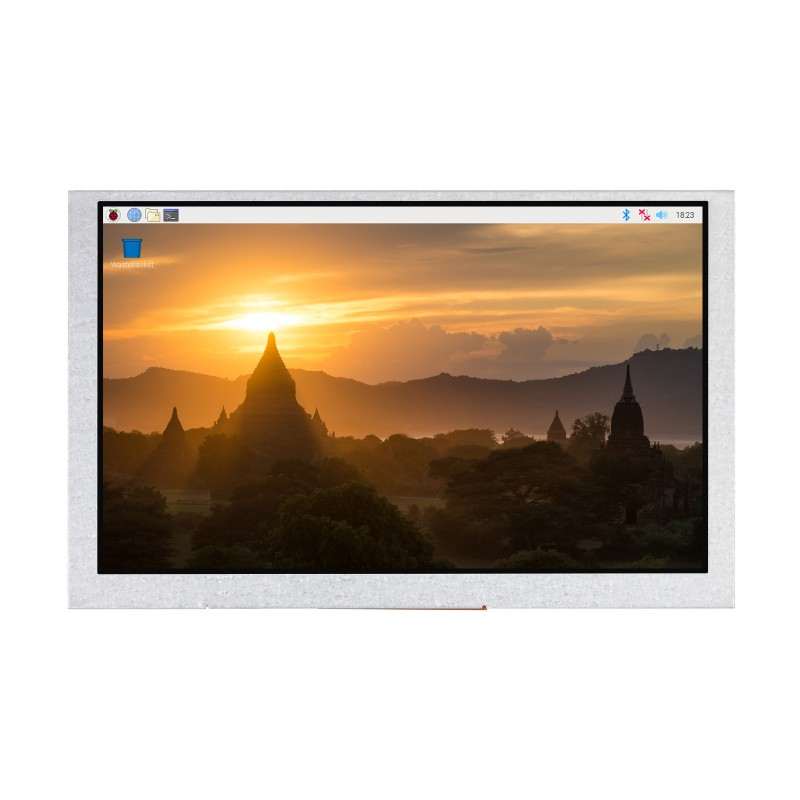

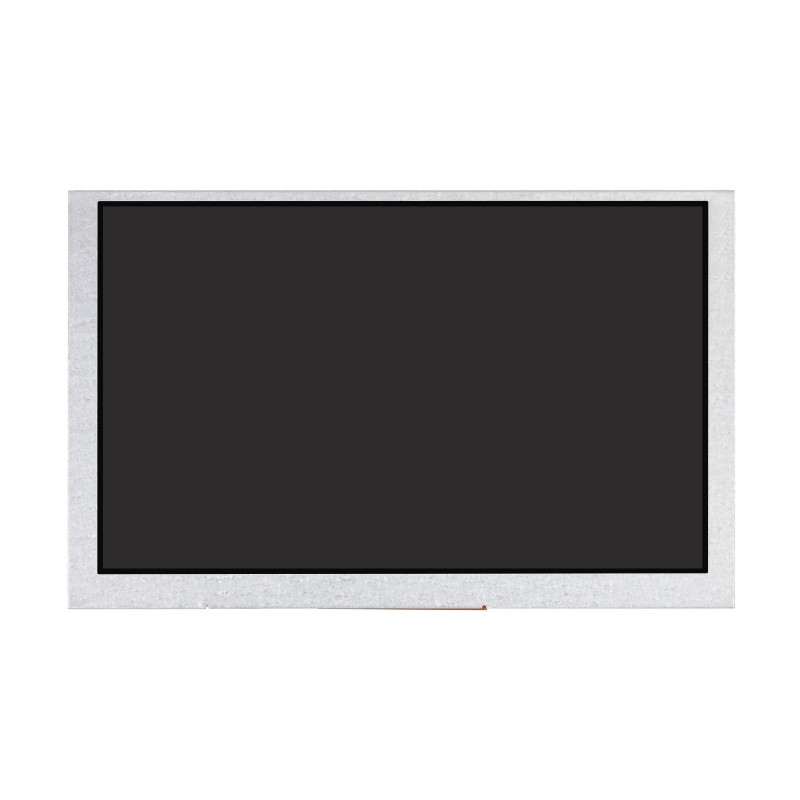

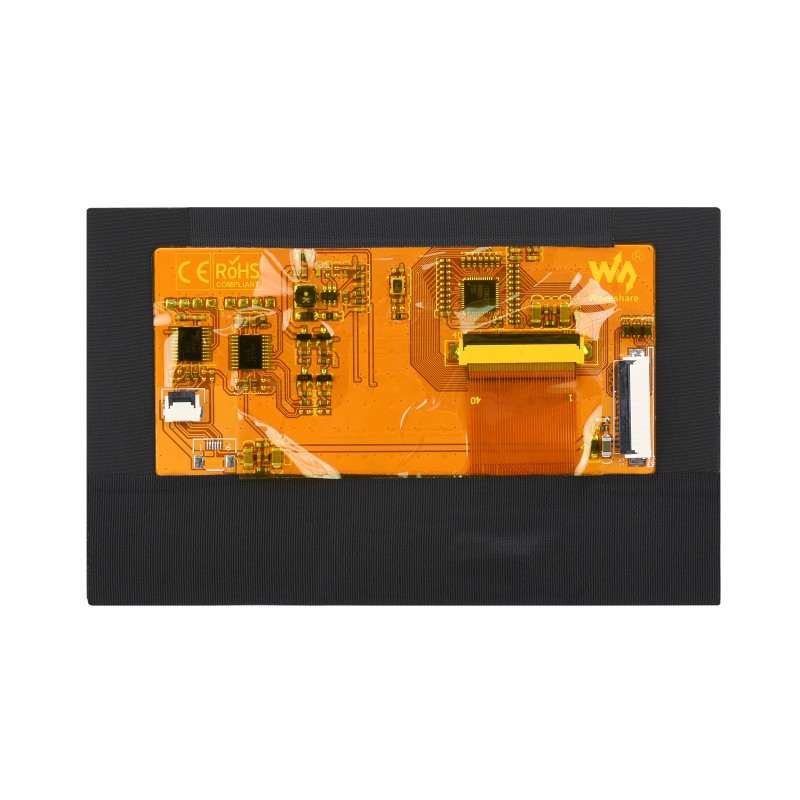

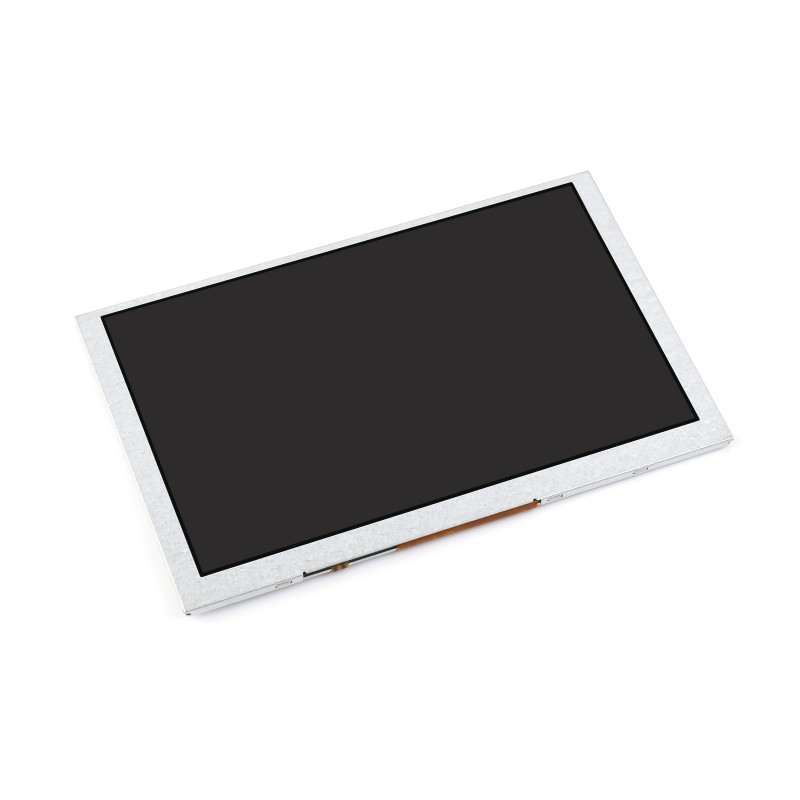

Waveshare 5inch DSI Display, 800 × 480, IPS, Thin and Light Design, Touch display
- 5-inch IPS screen, 800 x 480 hardware resolution.
- 5-point capacitive touch control, toughened glass panel, hardness up to 6H (this function is only for the touch version).
- Directly drive the LCD via the DSI port of the Raspberry Pi, and the refreshing rate is up to 60Hz.
- When working with the Raspberry Pi, it supports Raspberry Pi OS/Ubuntu/Kali and Retropie, and is driver-free.
- Support adjusting the backlight via the software and saving more power.
₨ 100.10
Out of stock
Out of stock
20
People watching this product now!
Waveshare 5inch DSI Display 800 × 480 IPS Thin and Light Design Touch display, 50H-800480 series display, produced by the Waveshare team, is designed for users who need a lightweight DSI display. Compared with the traditional DSI screen, it is lighter and more convenient for secondary development. Supports Pi4B/3B+/3A+/3B/2B/B+/A+, some CM3/3+/4 expansion board needing a DSI-Cable-15cm.
Features:
For more info., click here.
Package Includes:
1 x (Waveshare 5inch DSI Display, 800 × 480, IPS, Thin and Light Design, Touch display)
2 x FPC 15 PIN cable (~ 50mm)
