| Flow Range |
10-200L/min |
|---|---|
| Sensor |
Hall effect |
| Maximum Current (mA) |
15 mA(DC 5V) |
| Working Voltage |
DC 3.5-12 V |
| Load capacity |
10 mA(DC 5V) |
| Operating Temperature (°C) |
up to 80°C |
| Operating humidity |
35%-90%RH |
| Allow Compression |
Water pressure 1.75 Mpa below |
| Insulation Resistance (MΩ) |
>100M Ohm |
| Storage Temperature |
-25-80C |
| Storage Humidity |
25%-95%RH |
| Output Waveform |
Square Wave, output pulse signal |
| Cable length (mm) |
480mm |
| Size (mm): |
92mm*68mm |
| Shipping Weight | 0.048 kg |
| Shipping Dimensions | 16 × 11 × 4 cm |

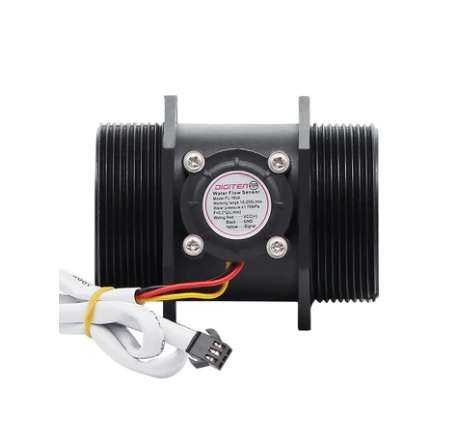

Water Flow Sensor (Sea) YFDN50 Flowmeter G2 10- 200L/min 3.5-12V
- Easy to install.
- Flow range:10-200L/min
- Sensor: Hall effect
- Maximum current:15 mA(DC 5V)
- Working voltage range: DC 3.5-12 V
- Load capacity:¡Ü10 mA(DC 5V)
₨ 100.10
Out of stock
Out of stock
15
People watching this product now!

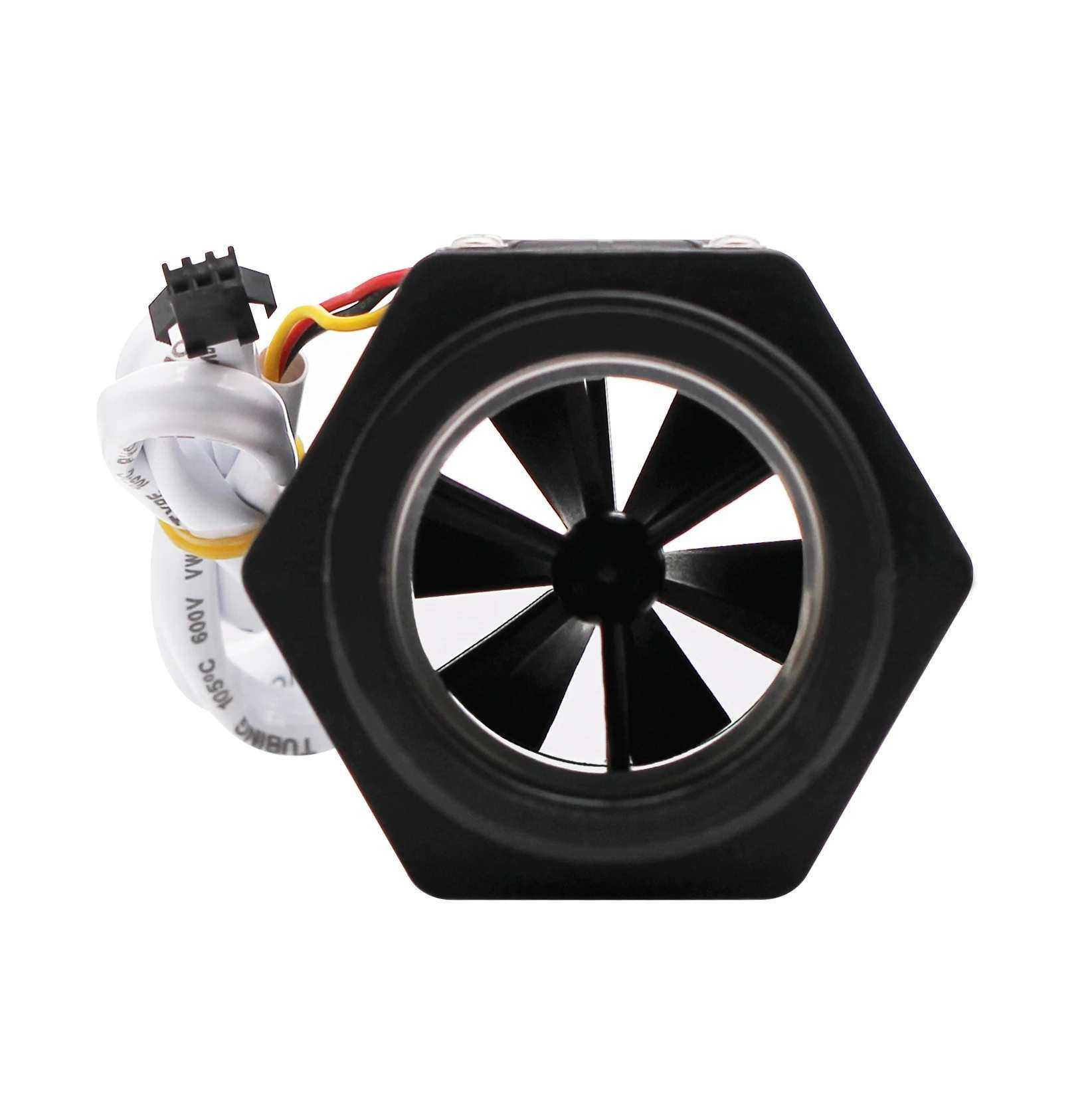

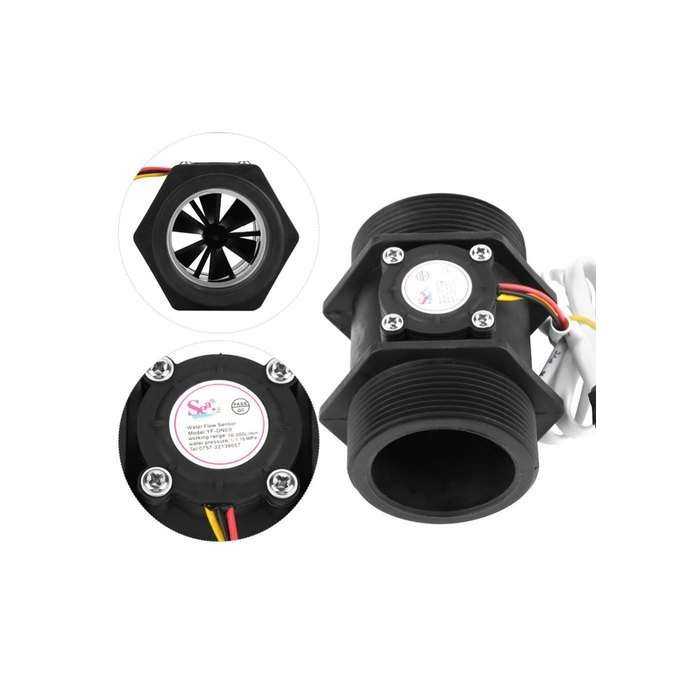

YFDN-50 Water Flow Sensor is Waterproof, Heat resistance, pressure resistance, cold resistance through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. With stainless steel axis in the wheel, abrasion-resistant; Sealing ring design to prevent water leaks; Compliant with RoHS standard Mainly used for water heater, water machine, card machine, various types of filling equipment and water control device.
Installation direction: Vertical (inclination should not exceed 5 degrees.
Note: Product image may vary from the actual product.
Features:
- Waterproof, Heat resistance, pressure resistance, cold resistance.
- Easy to install.
- Allow compression: Water pressure 1.75 Mpa below
- Working voltage range: DC 3.5-12 V
- Output Waveform: Square Wave, output pulse signal.
- Sensor: Hall effect
Package Includes:
1 x YFDN50 Flowmeter
