| Rated Current (A) |
50 |
|---|---|
| Voltage Drop(mV) |
75 |
| Operating Temperature (°C) |
-40 to 60 |
| Opt. Relative Humidity(RH) |
95% |
| Length (mm): |
120 |
| Width (mm): |
25 |
| Height (mm): |
18 |
| Weight (g): |
65 |
| Shipping Weight | 0.072 kg |
| Shipping Dimensions | 17.5 × 12 × 1 cm |

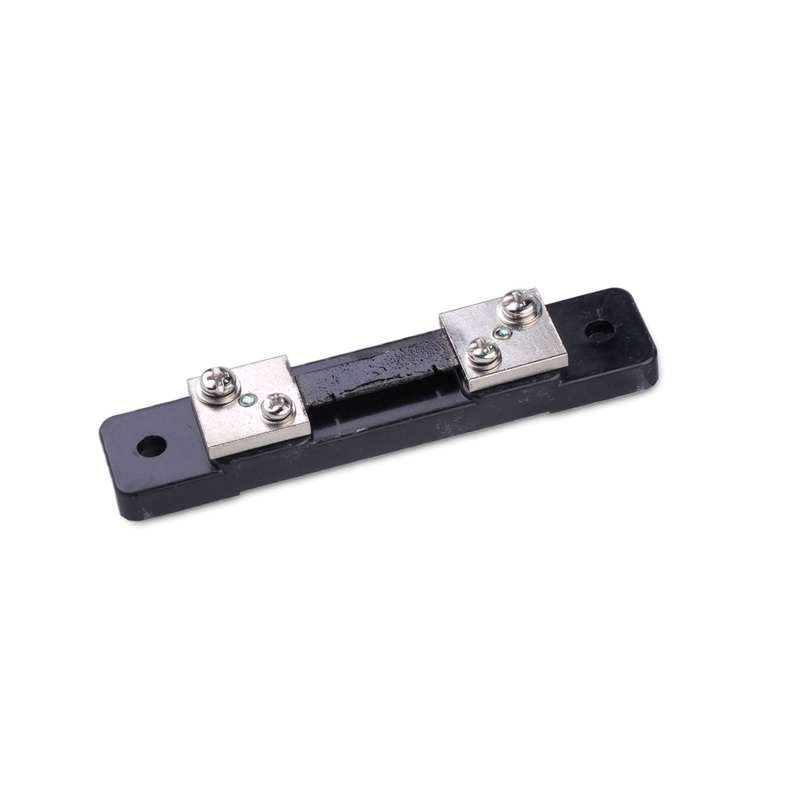

Voltmeter -ammeter shunt for 50A
- Voltage Drop: 75mV
- Overreacting Capacity: 120% (of rate current)
- Relative Humidity: 95%(35c)
- Environmental Condition : -40~+60c
- Shock Frequency Endurance: 80-120 times/mins
₨ 698.00
Out of stock
Out of stock
20
People watching this product now!
This is a 50A 75mV current shunt. The fixed setpoint shunt is a suitable the attached external shunt for measuring DC current directly acting on the analog display instrument together with the user in order to expand the scope of the DC current measurement, or sequentially circuit can be regarded as the current sampling with the standard resistors, a sampling voltage is measured with a current can be regarded as an analog signal.
Features:
- Good Performance and easy installation
- A ‘must have’ component for DC current meter
- It could be used either in a digital or an analog meter
- The shunt is used to multiply the measuring range of current of measuring
- It can be used to connect to a 50 Amps DC current meter
Package Includes:
1 x Voltmeter -ammeter shunt for 50A
