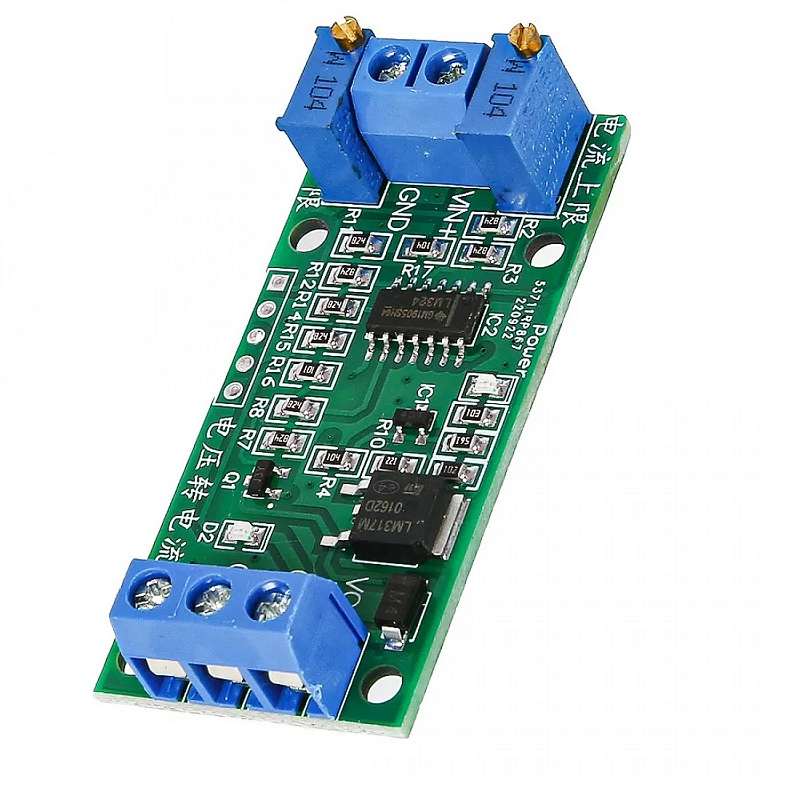

Voltage to Current Module 0-24V to 4-20mA Current Transmitter

Voltage to Current Module 0-24V to 4-20mA Current Transmitter module can convert a 0-24V voltage signal into a 4-20mA current signal. In the process of signal transmission circuit voltage signal will become weak with the transmission distance increased, the transmission can be avoided using the weak electric current signal.

Features:

1. Power supply voltage 7-30VDC power supply voltage must be greater than the voltage to be converted
2. The voltage signal to be converted: 2.5V 3.3V 5V 10V 15V 24V (Depends on Module Specifications; looks same but function is different)
3. Output current: O-20mA or 4-20mA
4. Both zero point and full scale can be adjusted by potentiometer
5. The module has isolation properties and non-optocoupler isolation.
6. Zero and span can be adjusted (potentiometer adjustment).
7.  The module has isolation properties, non-optocoupler isolation

Package Includes:

1 x Voltage to Current Module 0-24V to 4-20mA Current Transmitter
