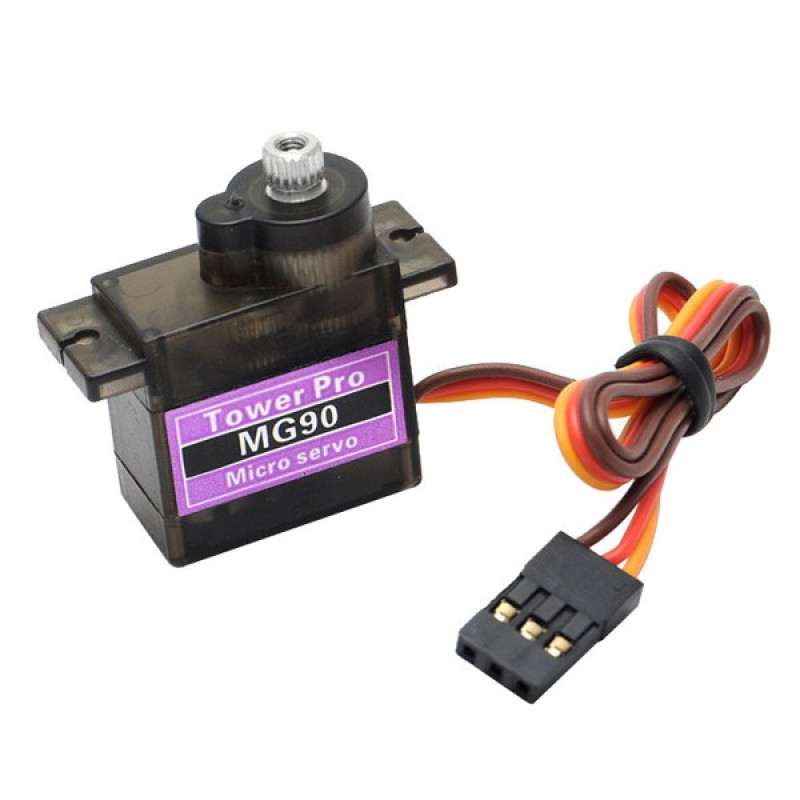

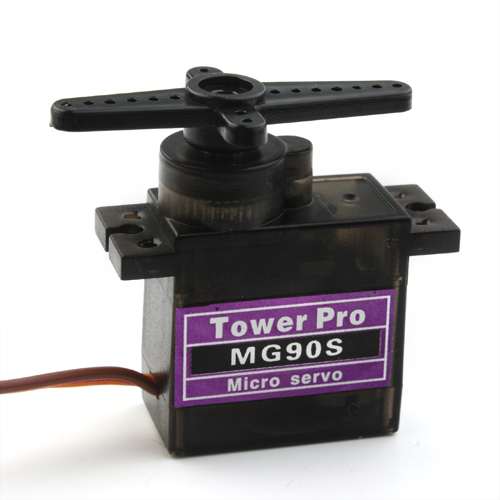

TowerPro MG90S Mini Digital Servo Motor (180° Rotation)-High Quality
Add to Wishlist
₨ 418.00
Out of stock
Out of stock
20
People watching this product now!
| Item Type: |
TowerPro Servo Motor |
|---|---|
| Model Series: |
MG Series |
| Rotation (Degree): |
180 |
| Torque Rating (kg-cm): |
1.8 to 2.2 |
| Model No. |
MG90S |
| Operating Voltage (VDC): |
4.8 ~ 6.6 |
| Operating Speed @4.8V |
0.10sec/60° |
| Operating Speed @6.6V |
0.08sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) |
1.8 |
| Stall Torque @6.6V (Kg-Cm) |
2.2 |
| Operating Temperature (°C) |
0 to 55 |
| Dead BandWidth (μs) |
1 |

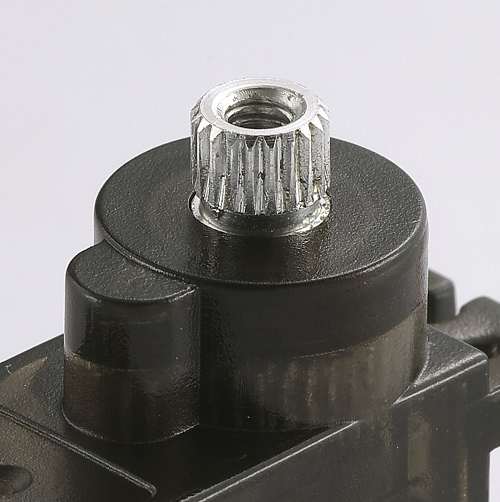

| Gear Type |
Metal |
| Servo Plug Type |
JR |
| Cable Length (cm) |
25 |

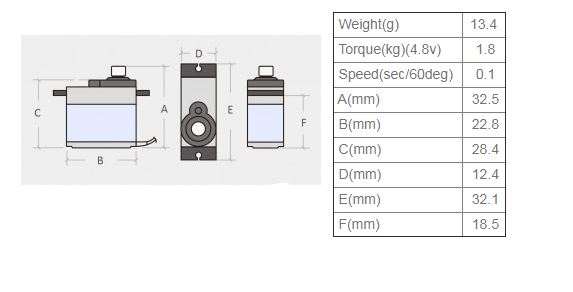

| Length (mm): |
12.4 |
| Width (mm): |
22.8 |
| Height (mm): |
32.5 |
| Weight (g): |
13 |
| Shipping Weight | 0.017 kg |
| Shipping Dimensions | 8 × 6 × 3 cm |
TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.
When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.
You can buy E Max Servos OR Orange servos if you’re seeking high-quality servos.
Features :
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power

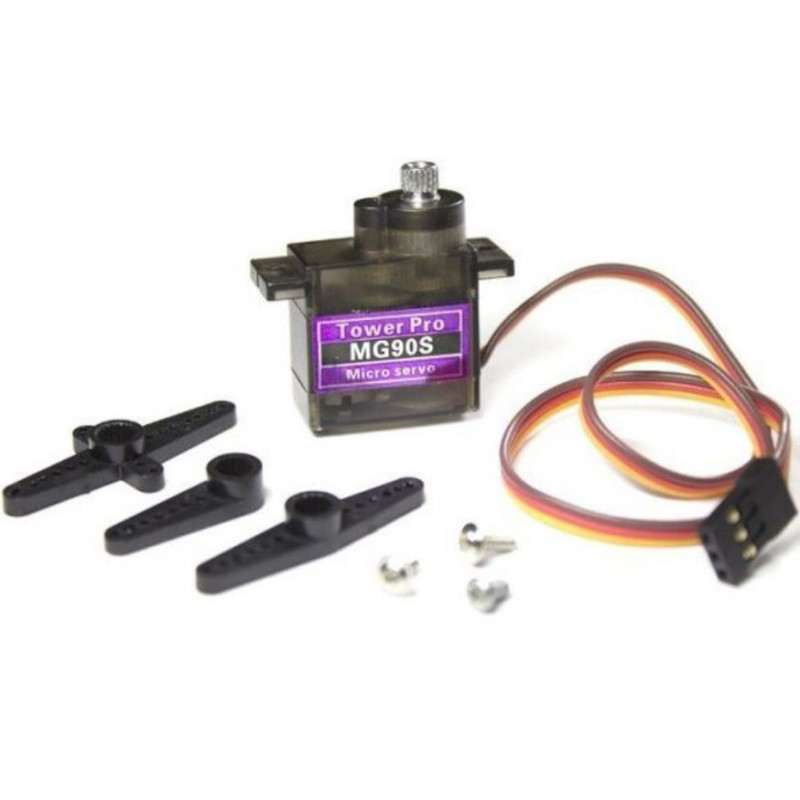

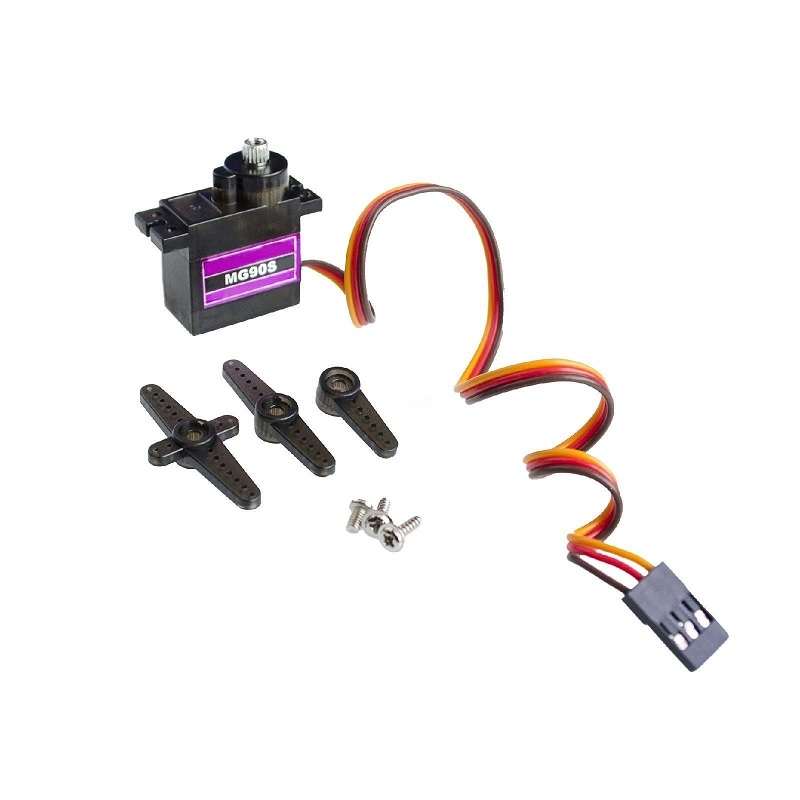

Package Includes :
1 x TowerPro MG90S Mini Digital Servo Motor (180° Rotation)-High Quality
1 x Set of Horns
- One Point
- Two Point
- Four Point
1 x Set of Screws
