| Model |
Toggle Switch-KNX-100 |
|---|---|
| Maximum Temperature(°C) |
-25-85 |
| Rated input voltage |
AC 120V 5A, AC 125V 6A, AC 250V 2A |
| Contact Resistance |
≤0.05 |
| Insulation Resistance (MΩ) |
≥100 |
| Withstand Voltage (V): |
AC 1500V(50HZ)/min |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 6 × 5 × 1 cm |

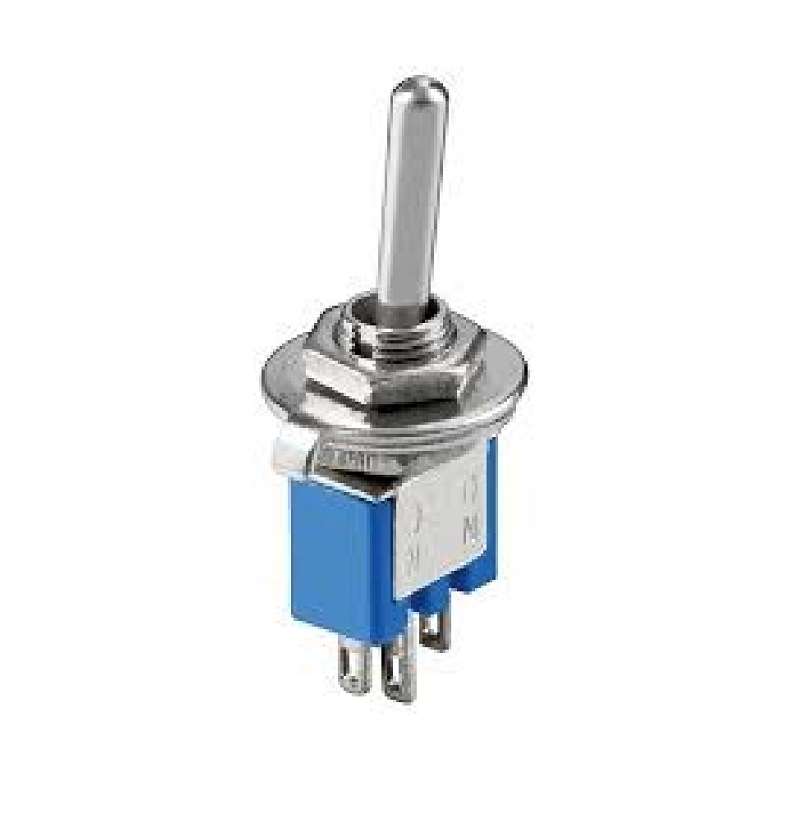

Toggle Switch-KNX-100
- MPN: KNX-100
- Contact resistance: ≤0.052mohm
- Insulation resistance: 100ΜΩ
- Operating temperature: -25-85℃
- Actuating force: 2-8N
- withstand voltage: AC 1500V(50HZ)/min
- Rated load: AC 120V 5A ,AC 125V 6A,
AC 250V 2A
₨ 73.30
Out of stock
Out of stock
12
People watching this product now!
The Toggle Switch KNX-100, bearing the MPN KNX-100, ensures reliable electrical control. It features a low contact resistance of ≤0.052 and high insulation resistance at 2100ΜΩ. Operating temperature ranges from -25 to 85℃, and it withstands voltage up to AC 1500V (50HZ)/min. The actuating force is 2-8N. It is rated for loads such as AC 120V 5A, AC 125V 6A, and AC 250V 2A, providing versatile application options.
Features:
- Toggle Switch: KNX-100(MPN: KNX-100)
- Contact Resistance: ≤0.052
- Insulation Resistance: 100ΜΩ
- Operating Temperature: -25 to 85℃
- Actuating Force: 2-8N
- Withstand Voltage: AC 1500V(50HZ)/min
- Rated Load: AC 120V 5A, AC 125V 6A, AC 250V 2A
Package Includes:
1 x Toggle Switch-KNX-100
