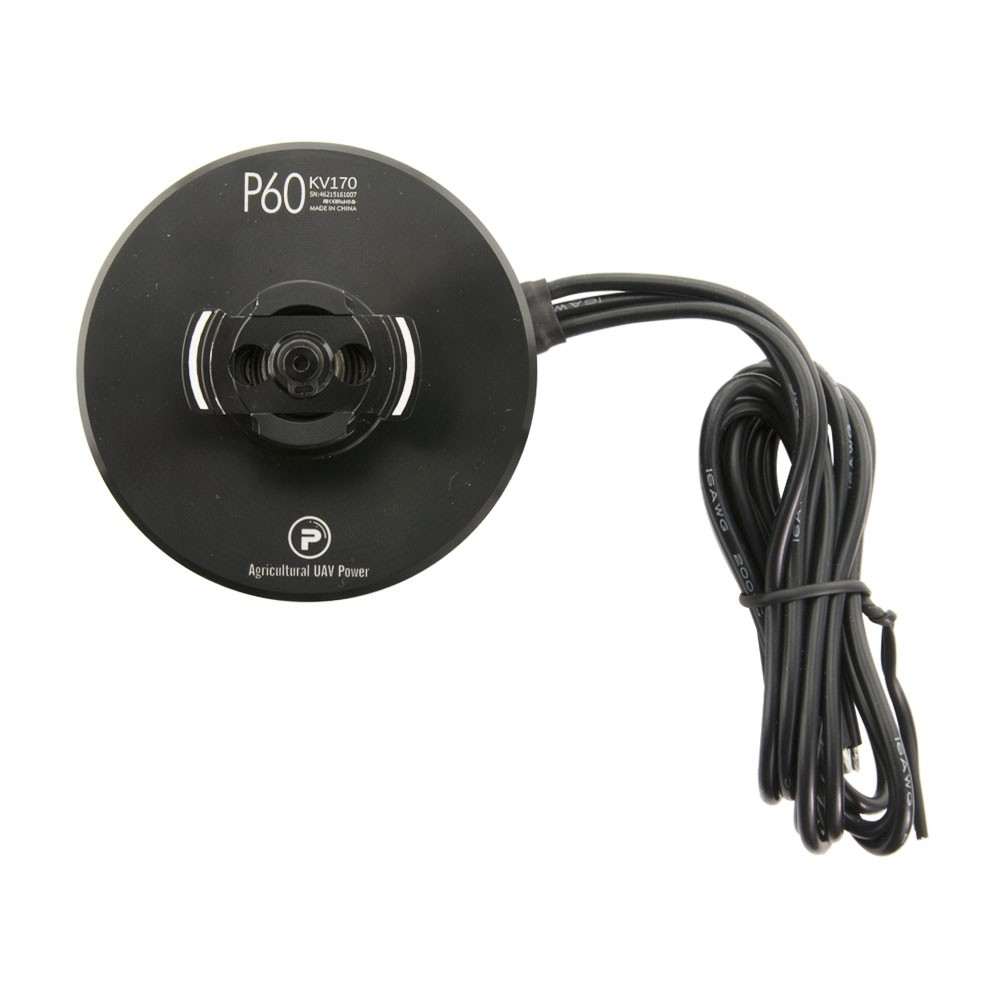

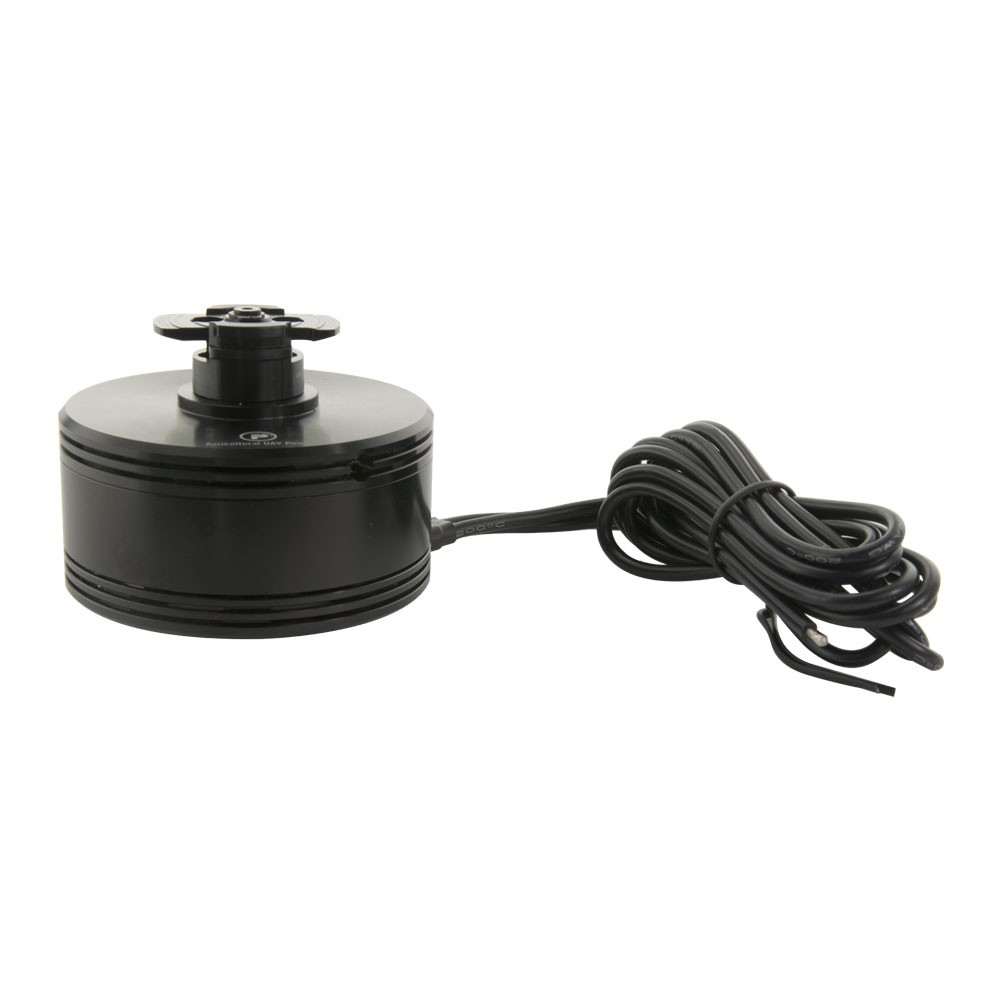

T Motor P Series P60 170KV
- Model: P SERIES P60 170KV
- KV: 170KV.
- Configuration:24N28P
- LiPO Batteries: 6-14 S.
- Max Thrust: 8414
- Shaft: 6 mm.
₨ 100.10
Out of stock
Out of stock
14
People watching this product now!
| Model |
T MOTOR P SERIES P60 170KV |
|---|---|
| Working Current(uA) |
170 |
| Rated Speed (RPM) |
6374 |
| Maximum Thrust (gm) |
8414 |
| Efficiency |
8-5 |
| Internal Resistance(Ω) |
80 |
| Shaft Diameter (mm) |
6 |
| Stator Size (mm) |
62 |
| Allowing wire gauge(AWG) |
16 |
| No. of Cells |
6-14 |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |
P-Series T-motors are capable of working in demanding environment with reliability and long service life. P60 KV170 tiger motors having thrust upto 8kg, Impact resistant, Anti-corrosion coil, Low noise. P series T motors are with 24N28P configuration which reduces motor vibration in operation for motor wearing diminution, service life extension and noise debasement. P-series Tiger motors runs smoothly than motors with general configuration at maximum throttle.
Features：
- High efficiency and thrust performance among the comparable motors
- Stable and reliable with long service life
- A waterproof, dust-resistant, anti-corrosion and temperature resistant motor
- Precision design with durable feature
- Easy to mount with remarkable compatibility

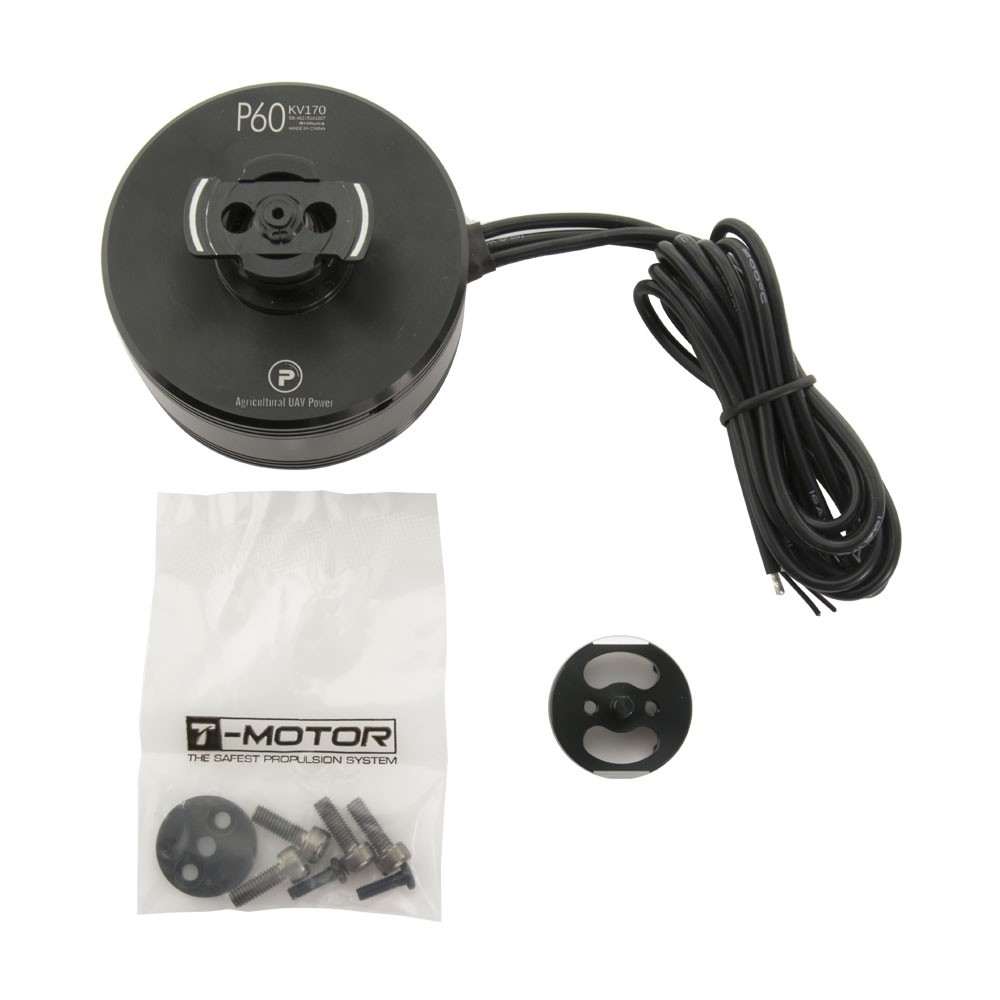

Package Includes:
1 x T MOTOR P SERIES P60 170KV
