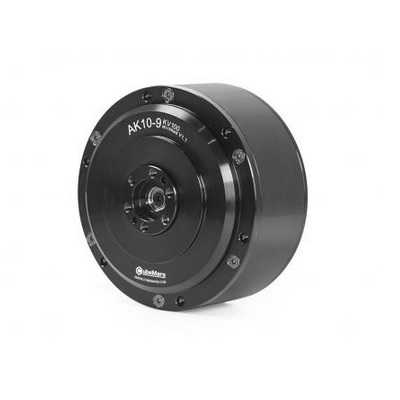

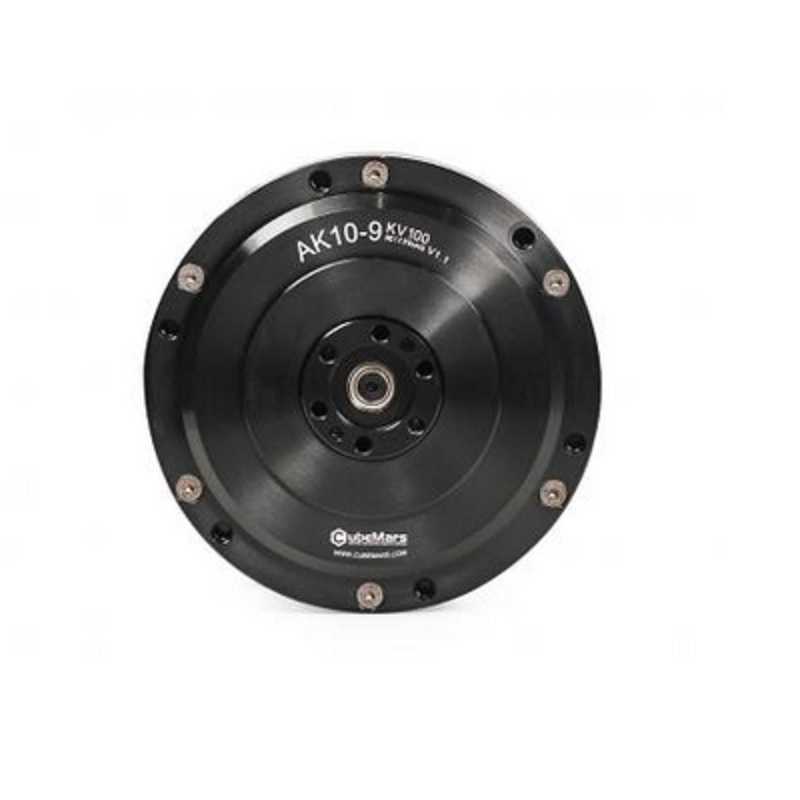

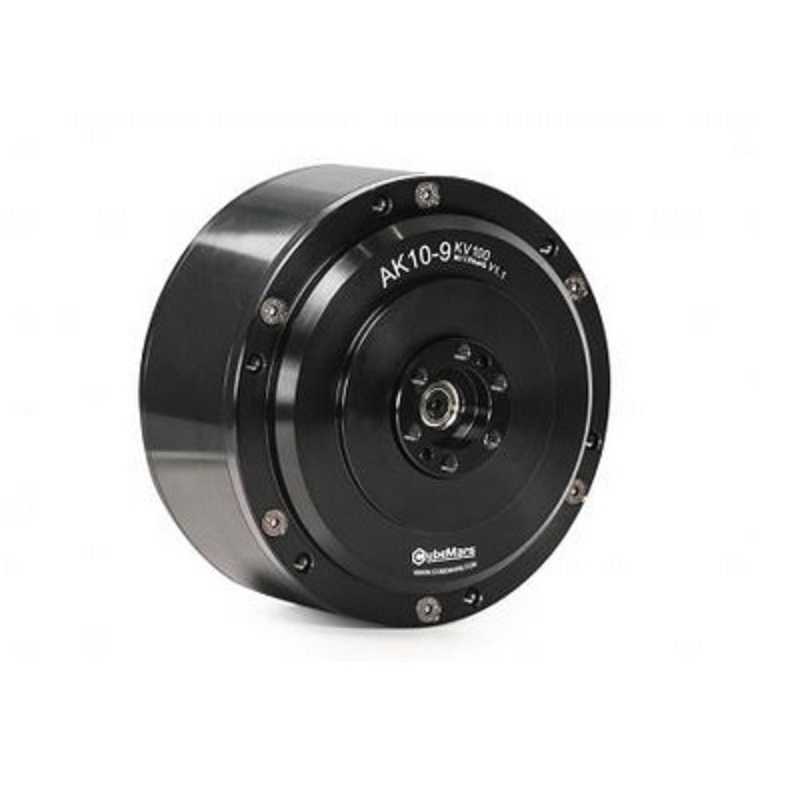

T-motor CubeMars AK10-9 V2.0 100KV Brushless DC Actuator Robot Joint Motor

Add to Wishlist

₨ 100.10

Out of stock

Out of stock

Compare
Add to wishlist
20 People watching this product now!
Rated Torque(N-m)

15
Peak Torque (Nm)

38
Rated Current (A)

185
Peak Current (A)

50
Poles

42
Rated Speed (RPM)

222/445
Reduction ratio

9:1
Height (mm):

625
Weight (g):

820
Shipping Weight 0.995 kg
Shipping Dimensions 14 × 13 × 7 cm

This is a T-motor CubeMars AK10-9 V2.0 100KV Brushless DC Actuator Robot Joint Motor.

Features:

  1. Highly Integrated & High Torque Module
  2. Reducer and Controller in One
  3. Large Torque
  4. Applied to Exoskeleton, Quadruped Robotic Dog
  5. Easy Configuration with RUBIK Link
  6. 12Bit Encoder & UART/CAN Interface
  7. Max Speed at Rated Torque(rpm): 222/445 (Output)
  8. Kt(Nmv/A): 0.095
  9. ky(RPM/V): 100
  10. Ke(virpm): 0.01
  11. Kmn(nm/vw): 0.3
  12. Number of Pole-Pair: 21
  13. Resistance Phase to Phase(mQ): 90±5
  14. Inductance Phase to Phase(uH): 331±10
  15. Op(mm): 098
  16. Max torque weight ratio(Nmn/kg): 65



Packages Includes:

1 x T Motor AK10-9/V1.1
