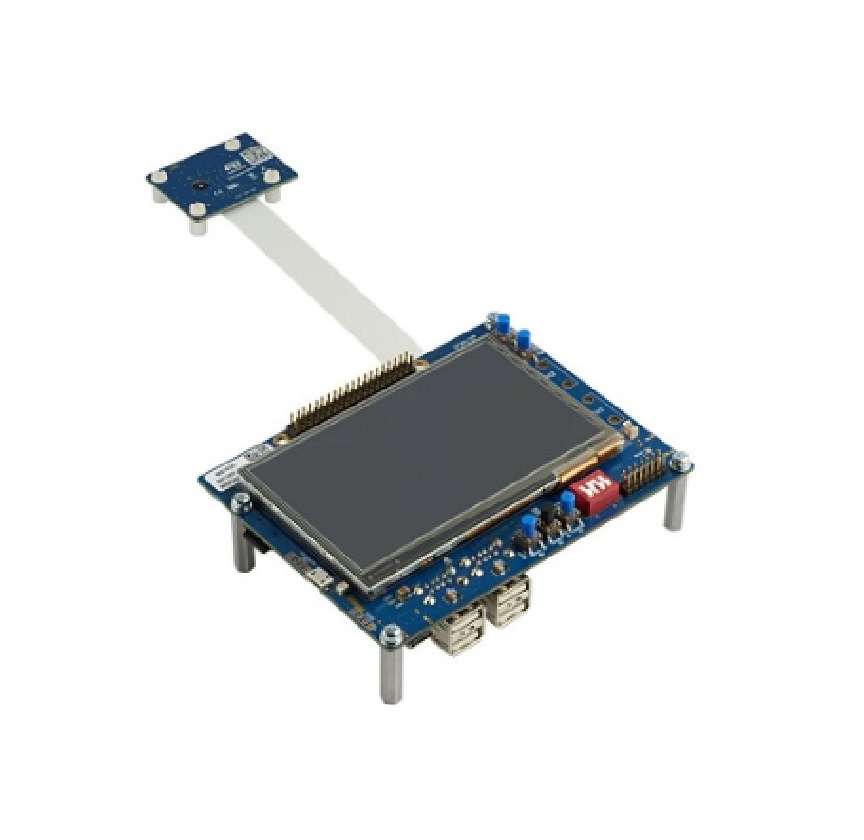

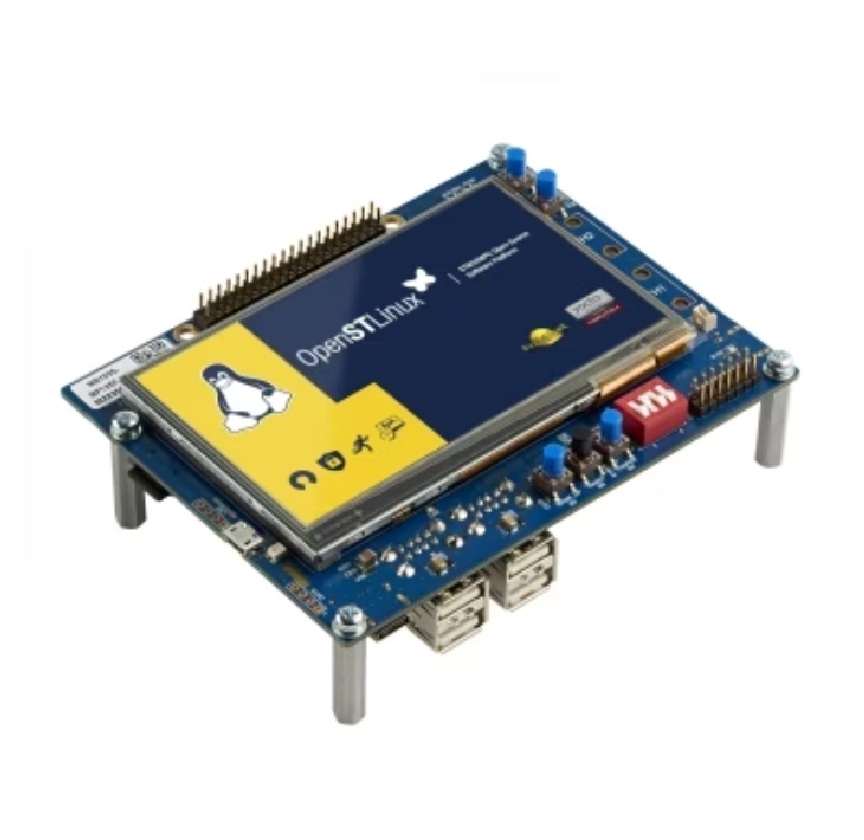

STMICROELECTRONICS STM32MP135F-DK Development Discovery Kit, STM32MP135FAF7, 32bit, ARM Cortex-A7

The STM32MP135 Discovery kit (STM32MP135F-DK) leverages the capabilities of the 1 GHz STM32MP135 microprocessors to allow users to develop easily applications using STM32 MPU OpenSTLinux Distribution software. It includes an ST-LINK embedded debug tool, LEDs, push-buttons, two 10/100 Mbit/s Ethernet (RMII) connectors, one USB Type-C® connector, four USB Host Type-A connectors, and one microSD™ connector.

To expand the functionality of the STM32MP135 Discovery kit, one GPIO expansion connector is also available for third-party shields. Additionally, the STM32MP135 Discovery kit features an LCD display with a touch panel, Wi‑Fi®, and Bluetooth® Low Energy capability, and a 2-megapixel CMOS camera module. It also provides secure boot and cryptography features.

Features:

1. STM32MP135FAF7 MPU with an Arm® Cortex®‑A7 32-bit processor at 1 GHz, in a TFBGA320 package
2. ST PMIC STPMIC1
3. 4-Gbit DDR3L, 16 bits, 533 MHz
4. 4.3″ 480×272 pixels LCD display module with capacitive touch panel and RGB interface
5. UXGA 2-megapixel CMOS camera module (included) with MIPI CSI-2® / SMIA CCP2 deserializer
6. Wi‑Fi® 802.11b/g/n
7. Bluetooth® Low Energy 4.1
8. Dual 10/100 Mbit/s Ethernet (RMII) compliant with IEEE-802.3u, one with Wake on LAN (WoL) support
9. USB Host 4-port hub
10. USB Type-C® DRP based on an STM32G0 device
11. 4 user LEDs
12. 4 push-buttons (2× user, tamper, and reset)
13. 1 wake-up button
14. On-board current measurement
15. On-board ST-LINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
16. Full mainline open-source Linux® STM32 MPU OpenSTLinux Distribution (such as STM32MP1Starter) software and examples
17. Support of several Integrated Development Environments (IDEs) including STM32CubeIDE
18. Bare metal support for RTOS (Microsoft® Azure®)
19. Board connectors:
20. Dual-lane MIPI CSI-2® camera module expansion
21. 2× Ethernet RJ45
22. 4× USB Type-A
23. USB Micro-B
24. USB Type-C®
25. microSD™ card holder
26. GPIO expansion
27. 5 V / 3 A USB Type-C® power supply input (charger not provided)
28. VBAT for power backup

Package Includes:

1 x STMICROELECTRONICS STM32MP135F-DK Development Discovery Kit, STM32MP135FAF7, 32bit, ARM Cortex-A7
