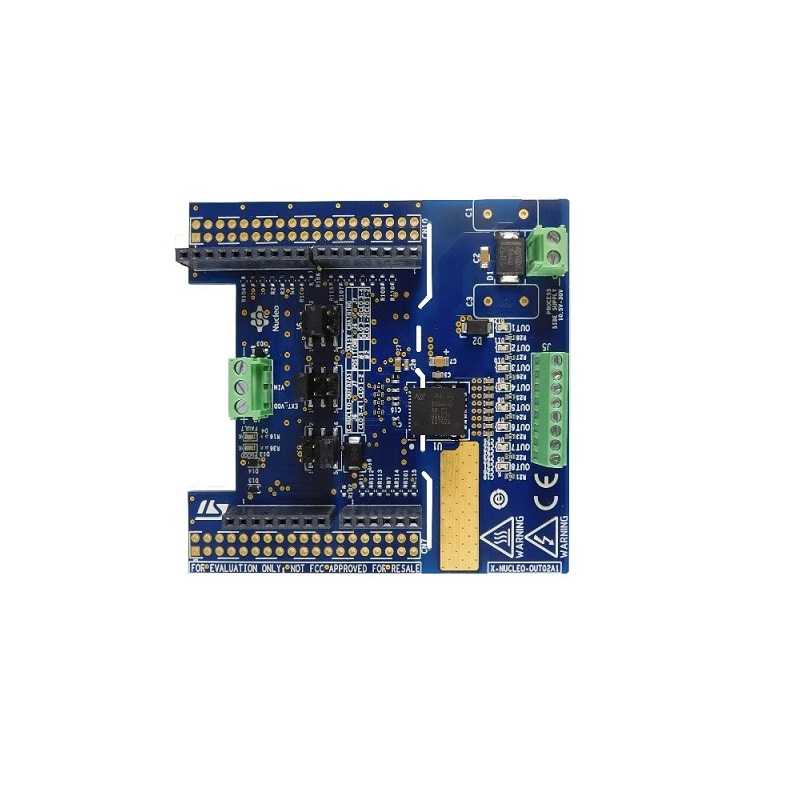

STMICROELECTRONICS Evaluation Board, ISO8200AQ Solid State Relay, 8-Channel, Arduino Shield, For STM32 Nucleo

Industrial digital output expansion board based on ISO8200AQ galvanic isolated octal high-side smart power solid state-relay for STM32 Nucleo. It provides an affordable and easy-to-use solution for the development of 8-channel digital output modules, letting users easily evaluate the ISO8200AQ communication and industrial load-driving features. The X-NUCLEO-OUT02A1 can be connected to a NUCLEO-F401RE or NUCLEOF334R8 development board via Arduino™ UNO R3 connectors. Users can also evaluate the 16-channel digital output modules by connecting two XNUCLEO-OUT02A1 expansion boards and activating the daisy chaining feature. The X-NUCLEO-OUT02A1 interfaces with the STM32 controller via SPI and GPIO pins and is compatible with the Arduino™ UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors. Industrial PLC functionality with 8 inputs and 16 outputs can be added with the XNUCLEO-PLC01A1 expansion board.

Note: For more technical details go through Datasheet in the attachment section

Features:

1. Supply reverse polarity protection
2. EMC compliance according to IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
3. Compatible with STM32 Nucleo boards
4. Red LED for process supply power good fault
5. Red LED for overload and overheating

Package Includes:

1 x STMICROELECTRONICS Evaluation Board, ISO8200AQ Solid State Relay, 8-Channel, Arduino Shield, For STM32 Nucleo
