| Length (mm): |
110 |
|---|---|
| Width (mm): |
03 |
| Height (mm): |
3(mm) |
| Weight (g): |
1 each |
| Contact Rating |
10 w |
| Switching voltage |
30 v |
| Carry current |
0,5 Ampere |
| Switching Current |
0,5 Ampere |
| Sensor Resistance |
280 mΩ |
| Shock |
50g |
| Vibration |
20g |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 9 × 7 × 1 cm |

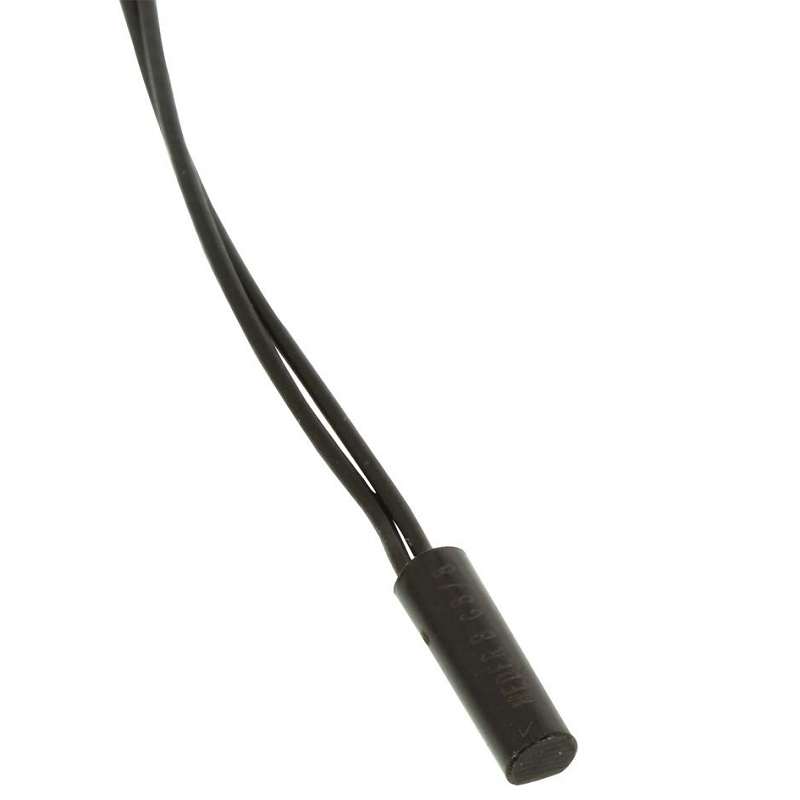

STANDEXMEDER Reed Switch, MK20 Series, Cylindrical, SPST-NO, 10 W, 30 Vdc, 0.5 A, 22 to 30 AT
- Product: Reed Switch, MK20 Series, Cylindrical, SPST-NO
- Contact Rating: 10 w
- Switching voltage: 30 v
- Carry current: 0,5 Ampere
- Switching Current: 0,5 Ampere
- Magnetically operated
- Flat, bent SMD lead
- Can be mounted on a fixed surface
₨ 998.00
Out of stock
Out of stock
15
People watching this product now!
The MK20/1-B-100W is a Reed Sensor, magnetically operated reed proximity switches in a cylindrical module, fitted with interconnect cable. The sensor should be mounted on a fixed surface with the actuating magnet on the moving surface. Used in door & window contacts, with magnetic floats for water level detection, and position sensing. Flat, bent SMD leads .-20 to 70°C Operating temperature.
Features:
- Magnetically operated
- Flat, bent SMD lead
- Can be mounted on a fixed surface
Package Includes:
1 x Reed Switch, MK20 Series, Cylindrical, SPST-NO, 10 W, 30 Vdc
