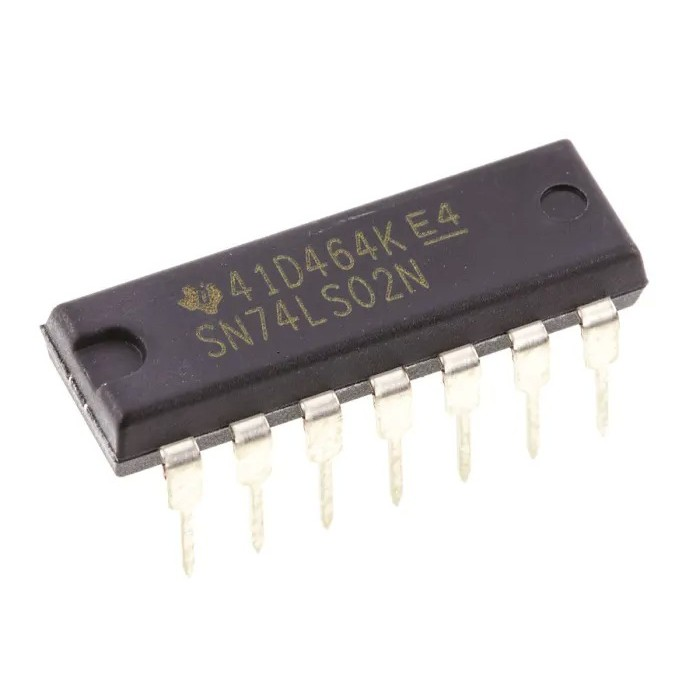

### SN74LS02N Overview

1. **Type**: Quad 2-Input NOR Gate IC.

2. **Functionality**:

– **Logic Gate**: Performs the NOR logical operation.

– **Quad Configuration**: Contains four independent 2-input NOR gates in a single package.

3. **Specifications**:

– **Logic Type**: NOR gate.

– **Number of Gates**: 4 gates per IC.

– **Inputs per Gate**: 2 inputs per gate.

– **Operating Voltage**: Typically 4.75V to 5.25V (standard TTL levels).

– **Output Current**: High output current of up to 8mA.

– **Package**: DIP-14 (Dual In-line Package with 14 pins).

4. **Features**:

– **Low Power Consumption**: Efficient power usage, typical of the LS (Low Power Schottky) family.

– **Fast Switching**: Capable of fast switching times, making it suitable for high-speed logic circuits.

– **TTL Compatible**: Compatible with TTL (Transistor-Transistor Logic) circuits.

### Typical Uses:

– **Digital Logic Circuits**: Used in various digital circuits requiring logical NOR operations.

– **Microcontroller Interfacing**: Interface logic gates to microcontrollers and other digital systems.

– **Control Systems**: Employed in control systems that require logical decision-making.

### Key Benefits:

– **High-Speed Operation**: Suitable for high-speed digital applications due to fast switching characteristics.

– **Reliable Performance**: Consistent and reliable performance in a wide range of applications.

– **Easy Integration**: Standard TTL compatibility allows for easy integration with other TTL components.

### Example Applications:

– **Basic Logic Functions**: Implementing basic logic functions and combinational logic circuits.

– **Signal Inversion and Combination**: Used in circuits where signals need to be logically inverted and combined.

– **Digital Systems**: Part of larger digital systems, such as arithmetic logic units (ALUs) and control units.

### How to Use:

1. **Power Supply**: Connect the Vcc pin (pin 14) to the positive supply voltage (typically 5V) and the GND pin (pin 7) to ground.

2. **Inputs and Outputs**: Connect the inputs (A and B) of each NOR gate to the desired logic signals and obtain the output from the corresponding output pin (Y).

3. **Circuit Design**: Incorporate the IC into your circuit design, ensuring proper placement and connections for desired NOR logic functions.

### Pin Configuration:

– **Pin 1**: Output of 1st NOR gate (1Y)

– **Pin 2**: Input A of 1st NOR gate (1A)

– **Pin 3**: Input B of 1st NOR gate (1B)

– **Pin 4**: Output of 2nd NOR gate (2Y)

– **Pin 5**: Input A of 2nd NOR gate (2A)

– **Pin 6**: Input B of 2nd NOR gate (2B)

– **Pin 7**: Ground (GND)

– **Pin 8**: Input B of 3rd NOR gate (3B)

– **Pin 9**: Input A of 3rd NOR gate (3A)

– **Pin 10**: Output of 3rd NOR gate (3Y)

– **Pin 11**: Input B of 4th NOR gate (4B)

– **Pin 12**: Input A of 4th NOR gate (4A)

– **Pin 13**: Output of 4th NOR gate (4Y)

– **Pin 14**: Positive Supply Voltage (Vcc)

### Example Circuit:

“`plaintext

+—–+

1A -|1 14|- Vcc

1B -|2 13|- 4Y

1Y -|3 12|- 4A

2A -|4 11|- 4B

2B -|5 10|- 3Y

2Y -|6 9|- 3A

GND -|7 8|- 3B

+—–+

“`

### Installation Tips:

– **Proper Power Supply**: Ensure a stable and appropriate power supply voltage (typically 5V) to avoid damaging the IC.

– **Decoupling Capacitor**: Place a decoupling capacitor (e.g., 0.1?F) near the power supply pins to filter noise and stabilize the voltage supply.

– **Input Signal Integrity**: Ensure that the input signals are within the specified voltage range for reliable operation.

### Advantages:

– **Flexibility**: Can be used in a wide range of logic applications due to its versatile NOR gate configuration.

– **Cost-Effective**: Affordable and widely available, making it a popular choice for many logic circuit designs.

The SN74LS02N is a reliable and versatile logic IC that provides four independent NOR gates, making it suitable for a wide range of digital applications requiring logical NOR operations. Its compatibility with TTL levels and fast switching characteristics make it an essential component in many digital circuits.
