SCT-013 Datasheet

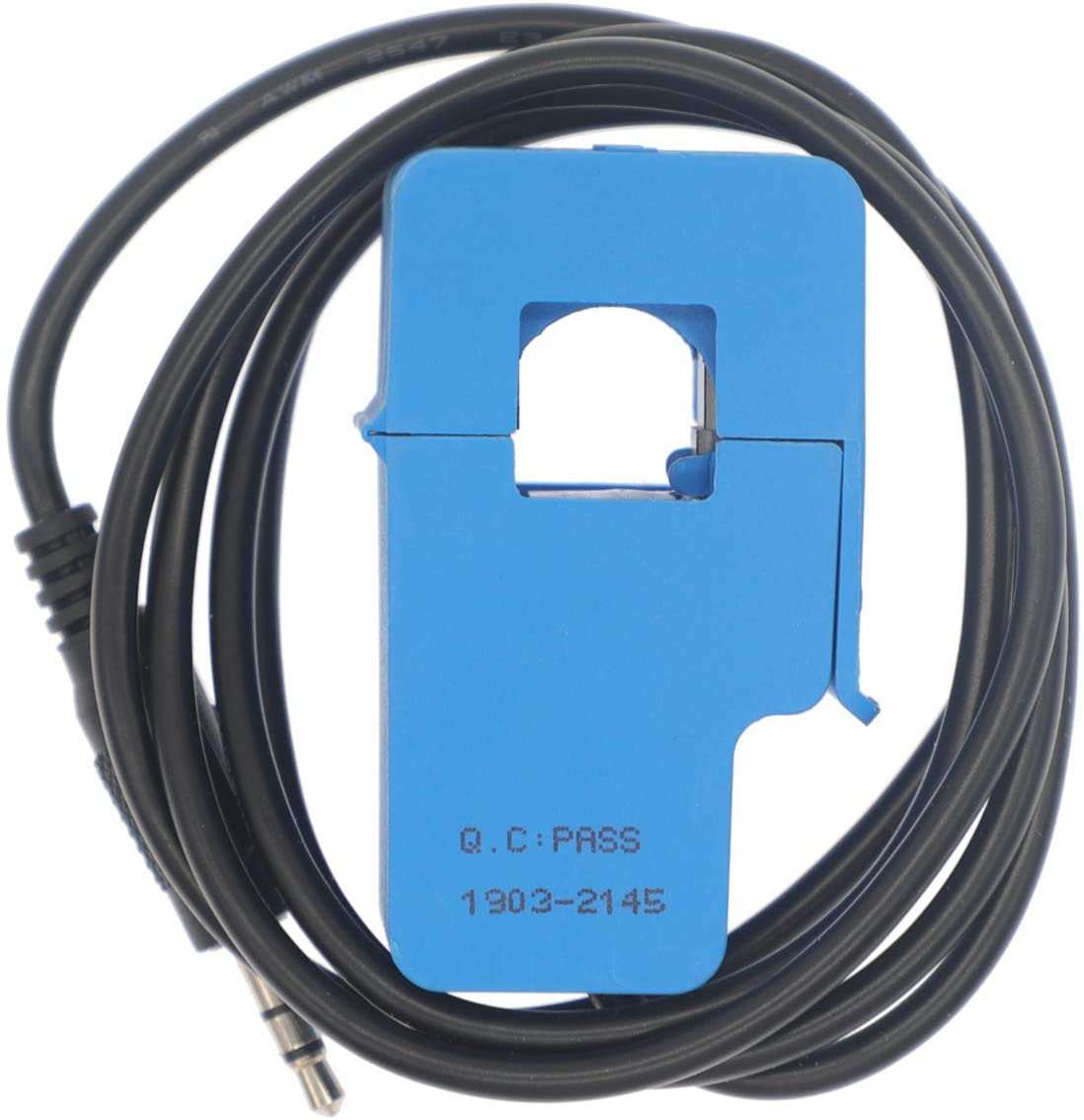

SCT-013-005 Non-invasive Split Core Current Transformer AC current sensor 5A
- input current (RMS): 5A.
- Max current: 15A.
- Work temperature:-25℃～+70℃.
- Storage temperature:-30℃～+90℃.
- Work voltage:660V.
₨ 880.00
Out of stock
Out of stock
16
People watching this product now!
| Input Current (A) |
5 |
|---|---|
| Max Current (A) |
15 |
| Operating Temperature (°C) |
-25 to 70 |
| Storage Temperature |
-30 to 90 |
| Working Voltage |
660V |
| Frequency Range |
50Hz-1KHz |
| Dielectric strength(KV) |
5KV 50Hz 1min |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 7 × 6 × 3 cm |
The SCT-013-005 Non-invasive Split Core Current Transformer AC current sensor offers a silicon steel sheet split core structure, hanging installation with leads Length of 1m, used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor, etc.
Applications
- Suitable for the current measuring.
- Monitoring and protection of AC motor
- Lighting equipment
- Air compressor
Features :
- Non-invasive current transformer
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
- Meet UL94-V0 flame retardant properties
- Two forms of output current, voltage (voltage output built-in the sampling resistor).
Package Includes:
1 x SCT-013-005 Non-invasive Split Core Current Transformer AC current sensor 5A
