Datasheet

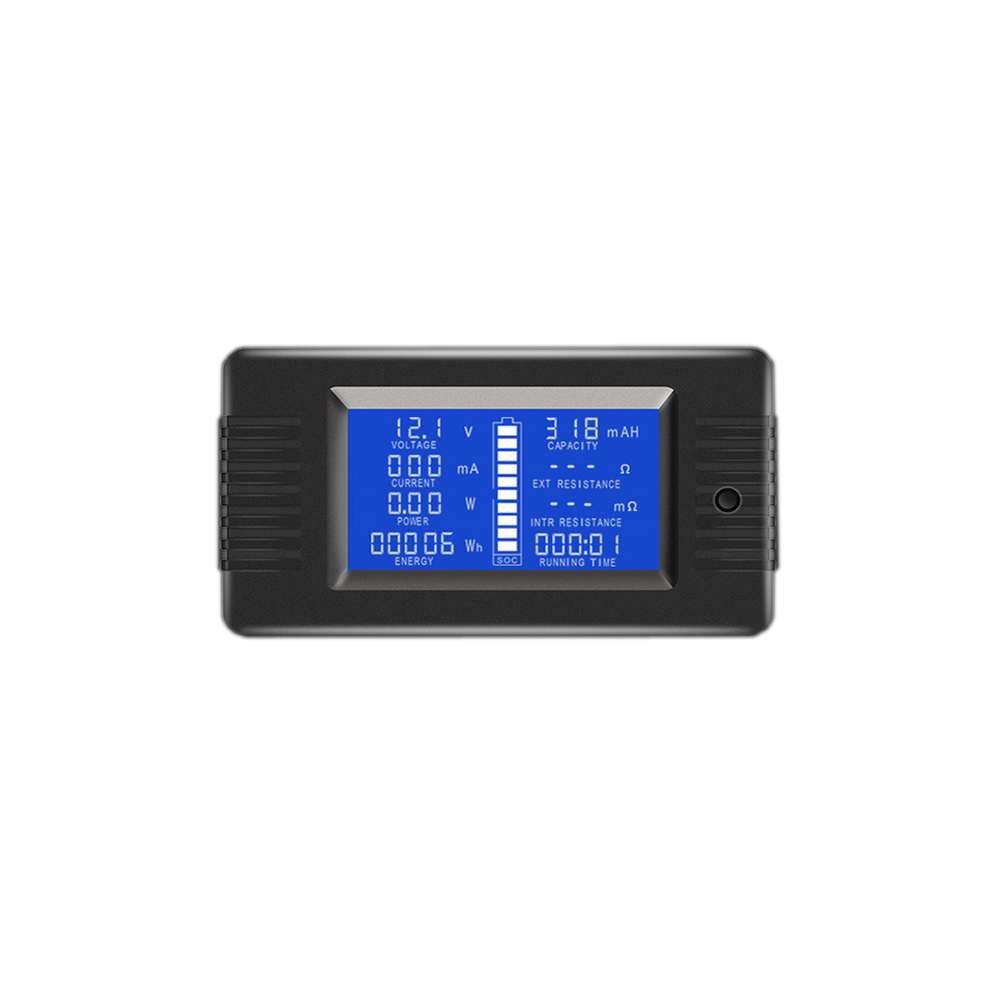

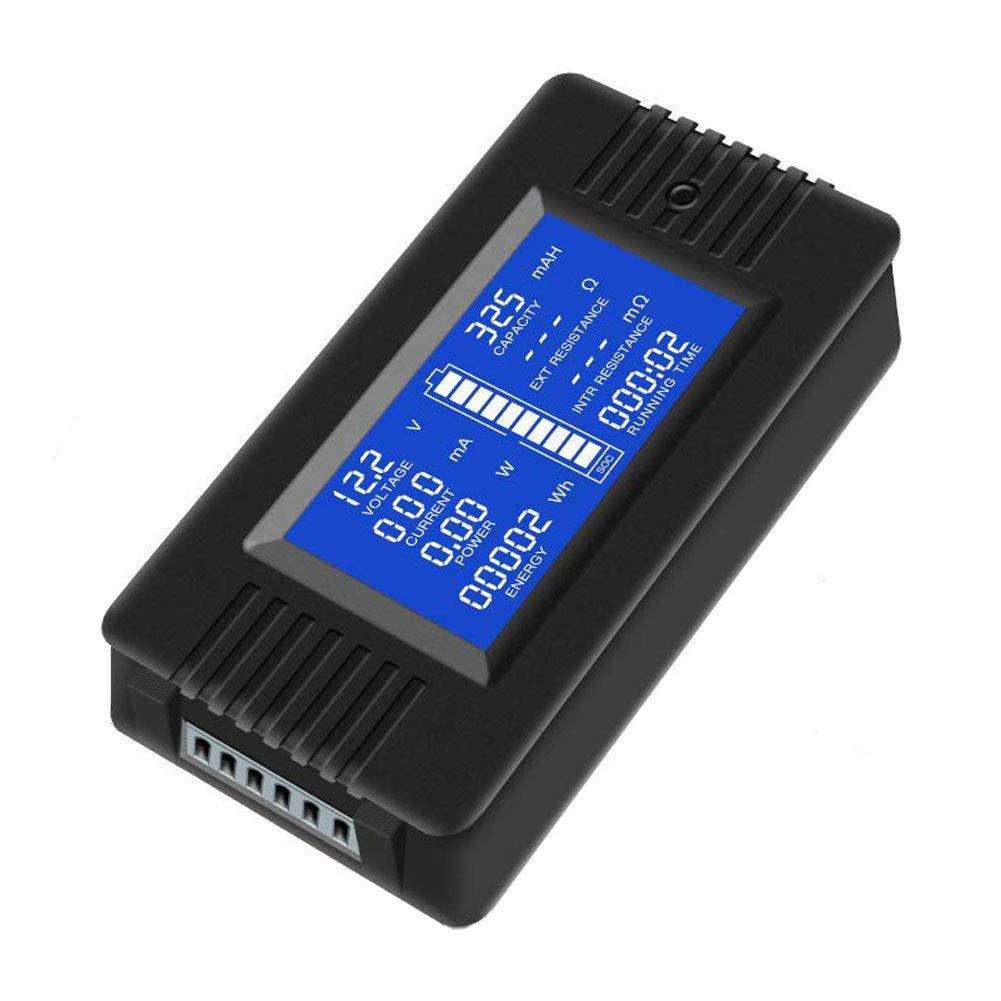

PZEM-015 Digital Battery Tester Ammeter Voltmeter Energy Meter (Without Shunt)
Add to Wishlist
₨ 100.10
Out of stock
Out of stock
16
People watching this product now!
| Current measurement range |
0-300A, <1A shows 999mA |
|---|---|
| Voltage measurement range |
0-200V, <10V display 9.99V |
| Power measurement range |
0-60000W, <10W display 9.99W |
| Impedance measurement range |
0-1000 Ω, <100 Ω shows 99.9 Ω |
| Running time range |
0-999 hours, format 0:00:00~999:59 (overflow to 0) |
| Length (mm): |
89.6 |
| Width (mm): |
49.6 |
| Shipping Weight | 0.11 kg |
| Shipping Dimensions | 9 × 6 × 3 cm |
PZEM-015 Digital Battery Tester Ammeter Voltmeter Energy Meter Power Capacity Impedance Residual Electricity Tester Shunt Without Shut has 9 major functions, A Full viewing angle LCD which has a 100A measuring range (with 100A shunt)

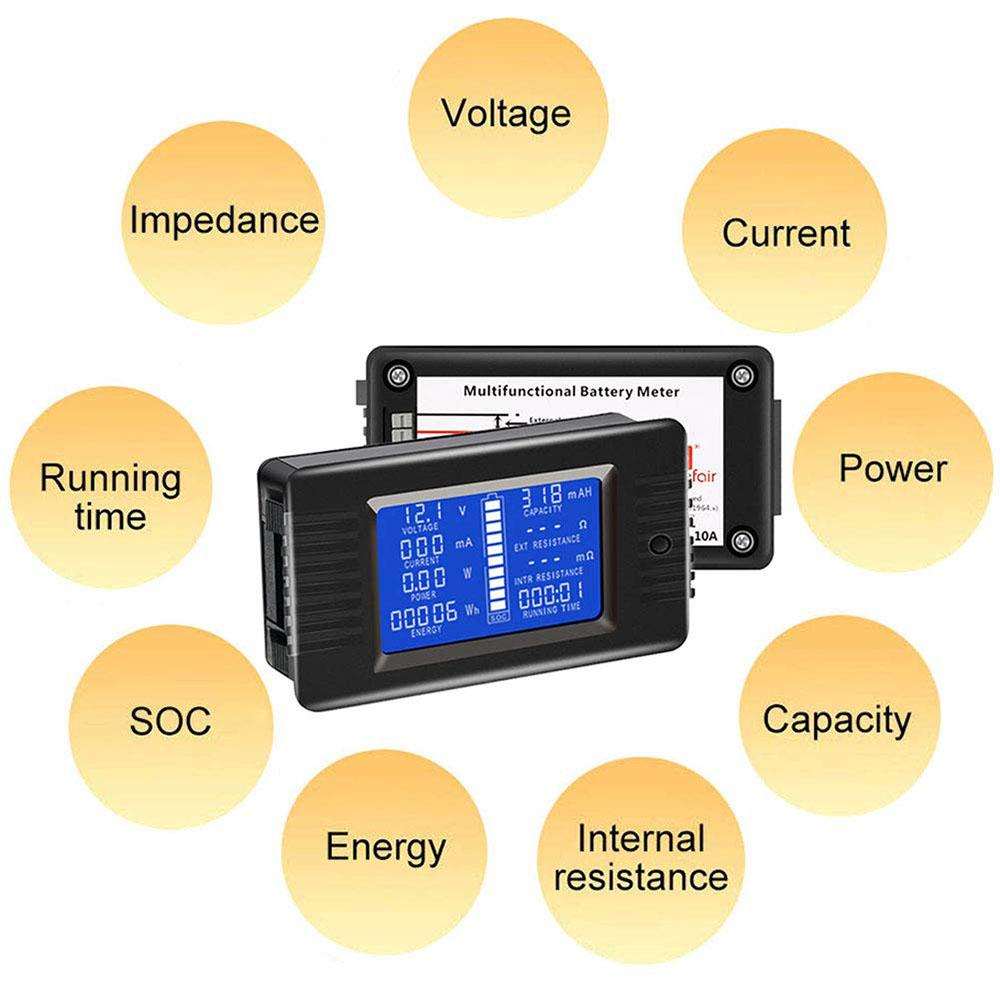

It is a simple Screwless installation and easy connections. This meter is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, and running time of various types of batteries, and display measurement data through LCD.
Note: Shunt is not included in the package you have to buy it separately
Features:
- Digital Display: Clear LCD for easy readings.
- Non-Invasive: No shunt required.
- Wide Voltage Range: Typically 80V to 260V.
- High Accuracy: Precise measurements.
- Energy Monitoring: Tracks kWh consumption.
- Ammeter and Voltmeter: Real-time current and voltage.
- User-Friendly: Simple setup and use.
- Compact Design: Fits in electrical panels.
Package Includes:

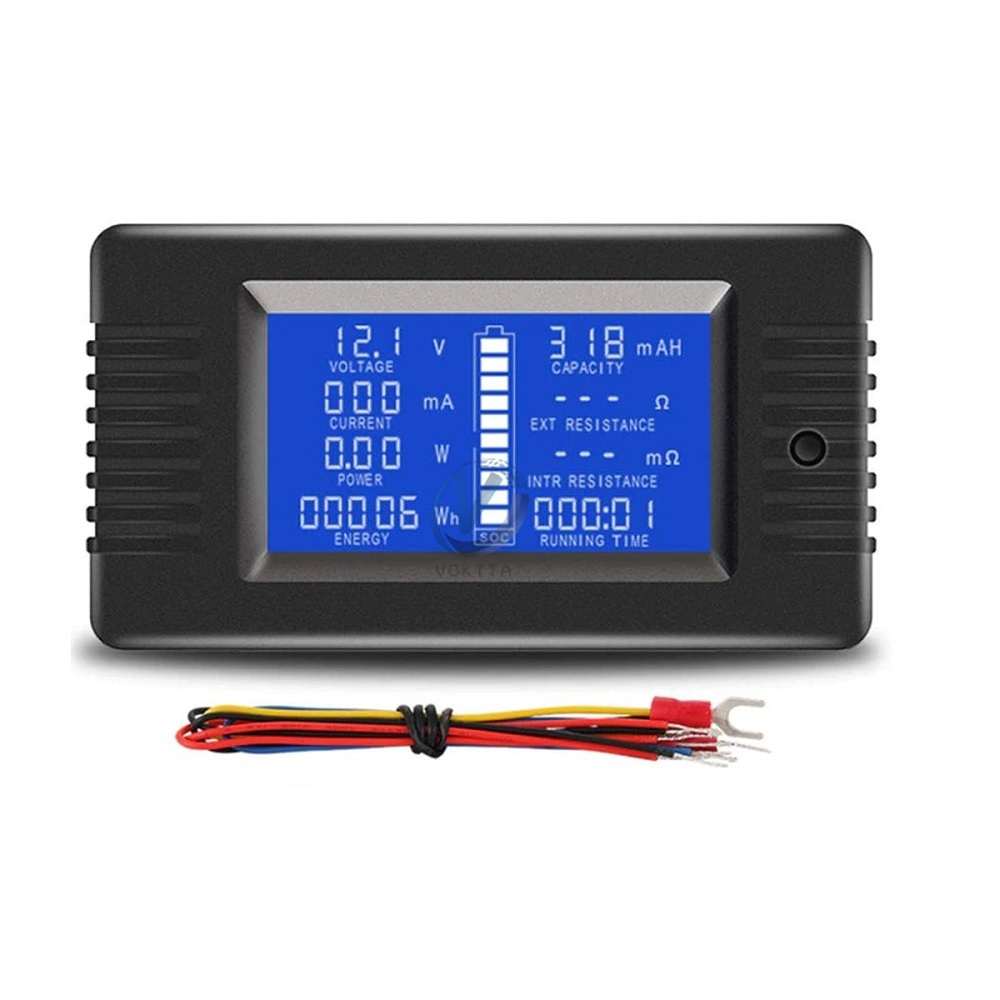

1 x PZEM-015 Digital Battery Tester Ammeter Voltmeter Energy Meter (Without Shunt)
1 x Connecting wires
1 x User Manual
