| Resolution |
352×240 |
|---|---|
| Frame Rate |
60 Hz |
| Operating Temperature (°C) |
-10°C to 60°C |
| Length (mm): |
33 |
| Width (mm): |
35 |
| Height (mm): |
22 |
| Weight (g): |
7gm |
| Shipping Weight | 0.008 kg |
| Shipping Dimensions | 12 × 8 × 2.5 cm |

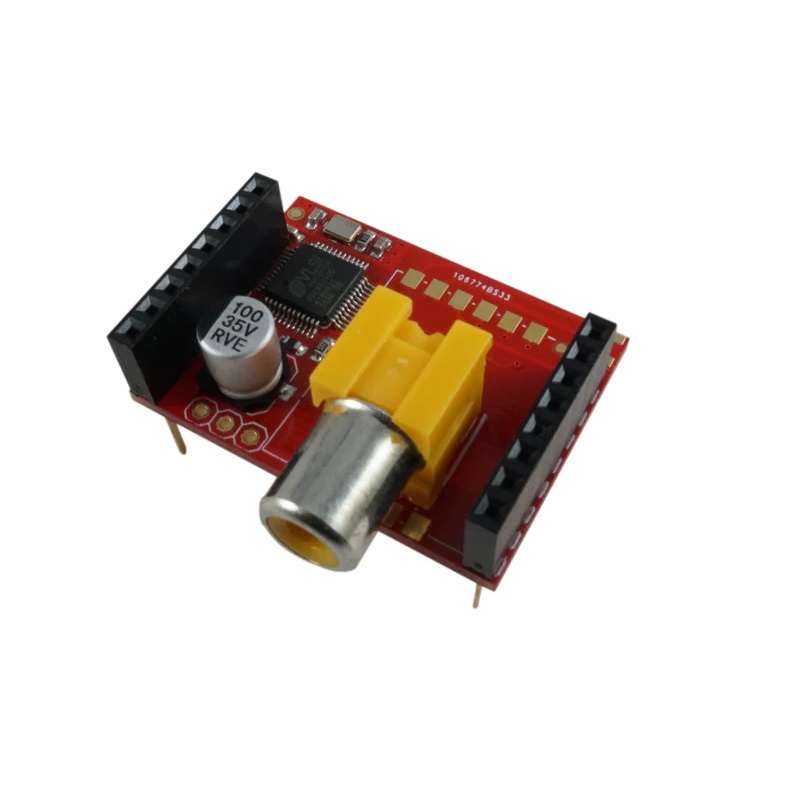

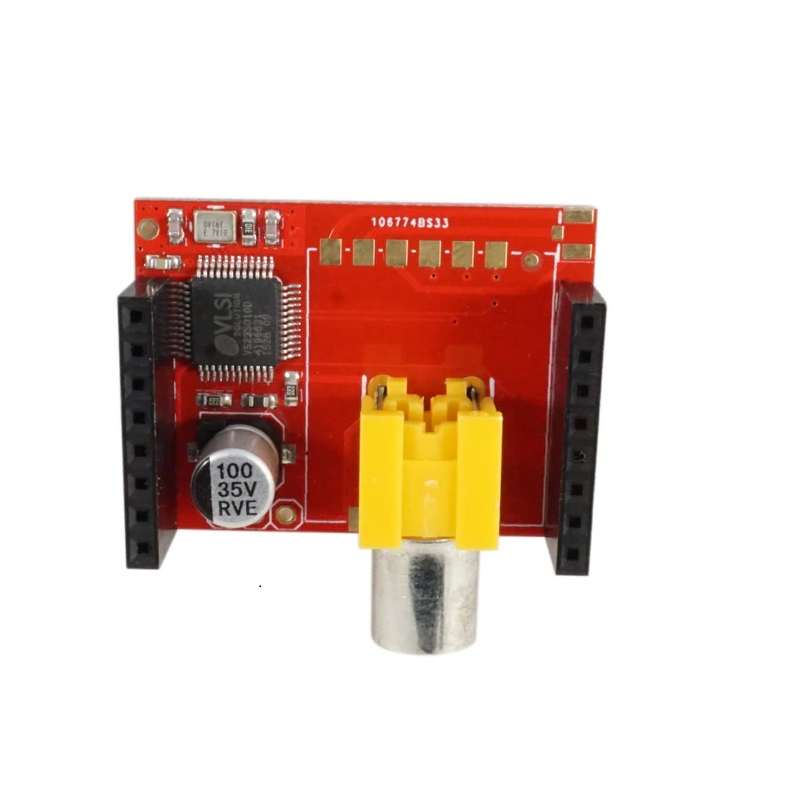

OpenMV TV Shield
- Frame Rate: 60 Hz
- Color Output Resolution: 352×240
- Temperature Range: -10°C to 60°C
₨ 100.10
Out of stock
Out of stock
17
People watching this product now!
The TV Shield gives your OpenMV Cam a way to display video on a portable screen. It works using a SPI to NTSC chip. The TV Shield is as easy to use as the LCD shield and only requires you to init() it followed by calling display() to set the frame buffer in the NTSC generator chip. Your OpenMV Cam’s firmware includes built-in support for the TV shield and OpenMV IDE comes with example code.
Features:
- Analog video transmission
- Easy commissioning & handling
Package Includes:
1 x OpenMV TV Shield
